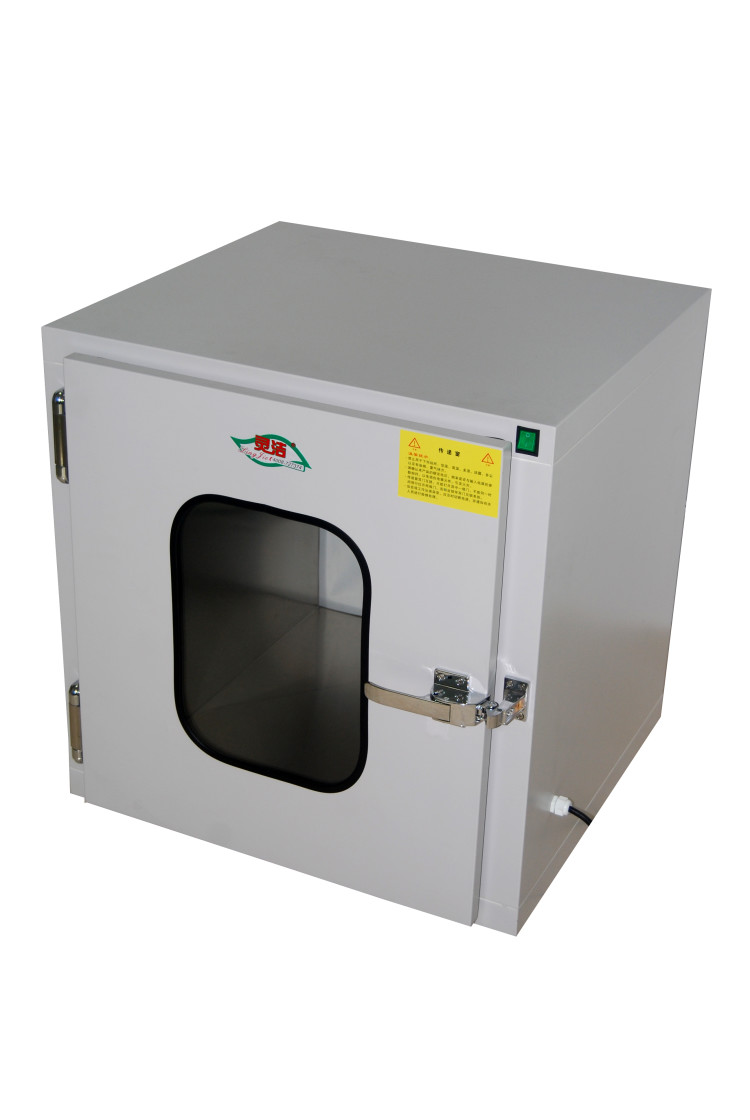

Built-in Pass Box
※High-quality sheet
Working area made of flat, smooth, and wear-resistant satin-finished stainless-steel sheet. Surface made of cold-rolled steel with spray coating or all-stainless-steel sheet.
※Good Air Tightness
Access doors equipped with mechanical interlocks or electronic interlocks. Special sealing materials used, ensuring good air tightness.
※Elegant Appearance
Built-in door applied, featuring simple structure, convenient maintenance and operation, attractive appearance.
※Multiple Accessories Optional
Custom size acceptable according to production process requirements and clients’ needs, and high-efficiency germicidal lamps can be optionally installed as well.
※Wide Applications
Applicable in environments such as microelectronics, laboratories, national defense, precision instruments, meters, biopharmaceuticals, optoelectronic industries, and aseptic packaging.
※Size&Data
Model | LJ-PBX-500 | LJ-PBX-600 | LJ-PBX-800 |
Working dimension(W*L*H))(mm) | 500*500*500 | 600*600*600 | 800*800*800 |
Outer dimension(W*L*H)(mm) | 690*565*655 | 790*665*755 | 990*865*955 |
Box material | cold-rolled steel with spray coating or all-stainless-steel |
Inner wall material | SS |
Classification | Standard box or floor-level box |
Box thickness(mm) | 1.0/ 1.2 |
Power | 220V/50Hz |
Optional accessories:Electronic interlocks/ Mechanical interlocks/ Ultraviolet Germicidal Lamp |
Besides the size above, custom size acceptable.
: Made-in-China
