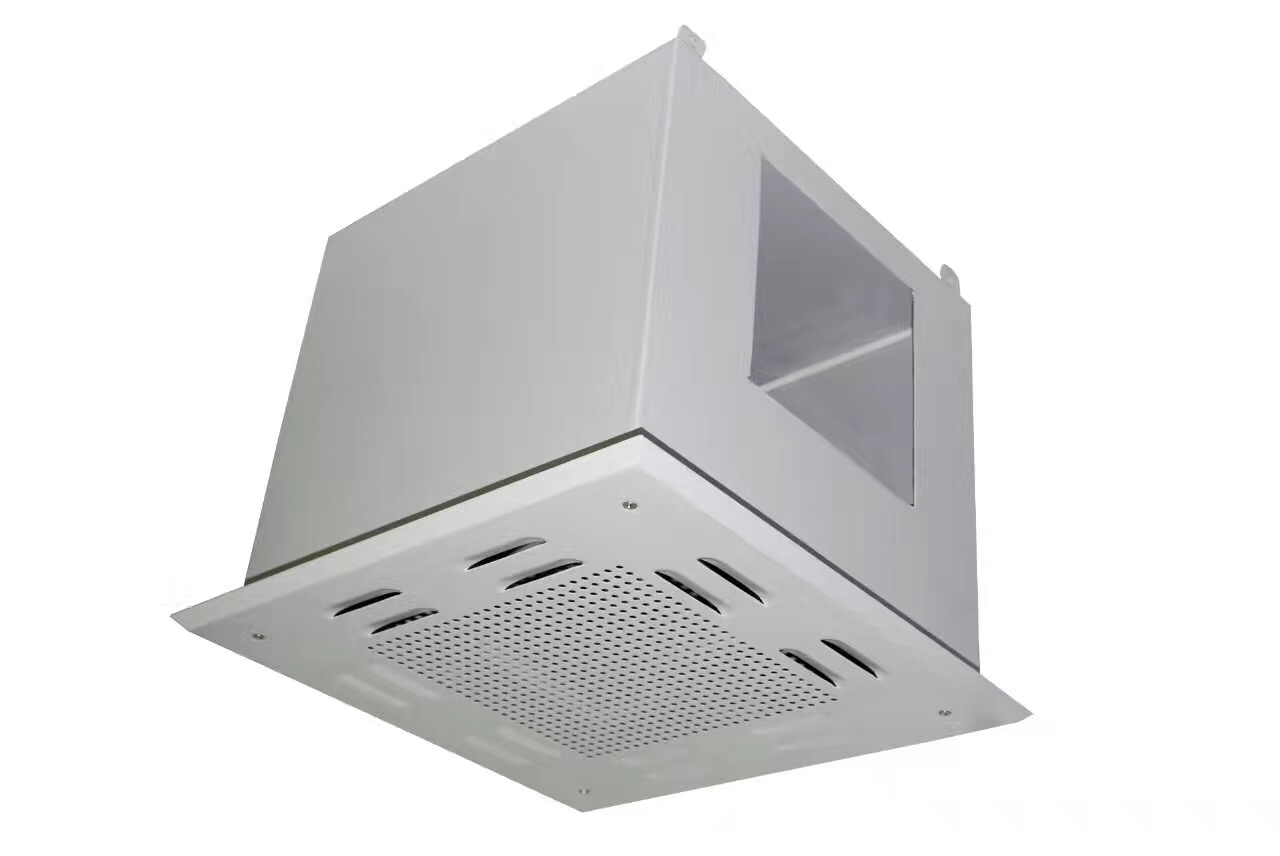

High Efficiency Air Supply Outlet
※Optimal Airflow Distribution
Advanced design,optimal airflow distribution and simple box structure. As a terminal filtration device for renovating and constructing clean rooms of Class 1000-300000, and a key equipment to meet purification requirements.
※Use of High-quality Sheets

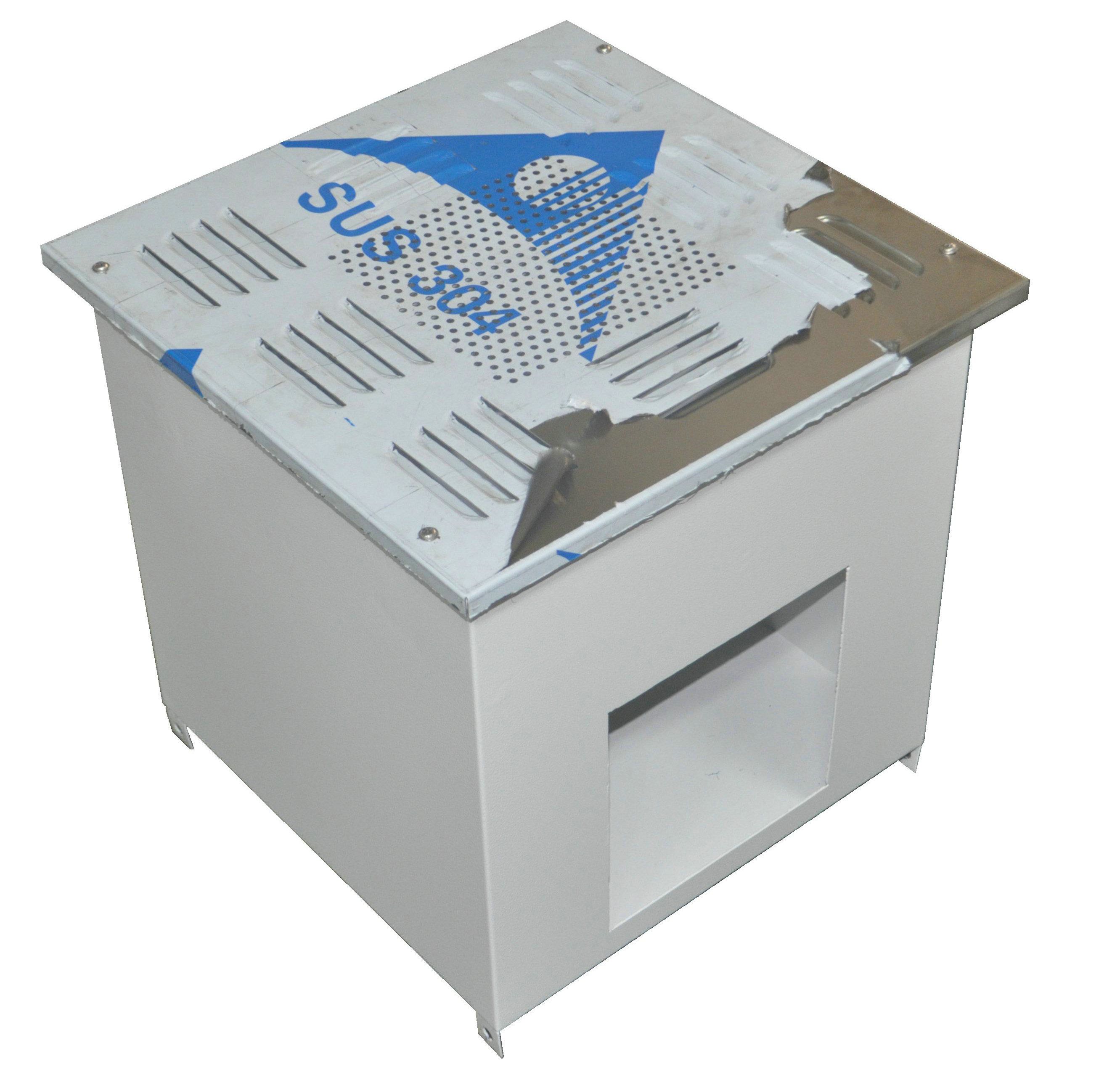

The box body is made of cold-rolled steel plate with baking finish or stainless steel.
※Carefully Designed Diffuser Plate
Based on the principles of aerodynamics, the carefully designed diffuser plate ensures the airflow injection speed and prevents the generation of eddy currents.
※Flexible Air Supply Modes

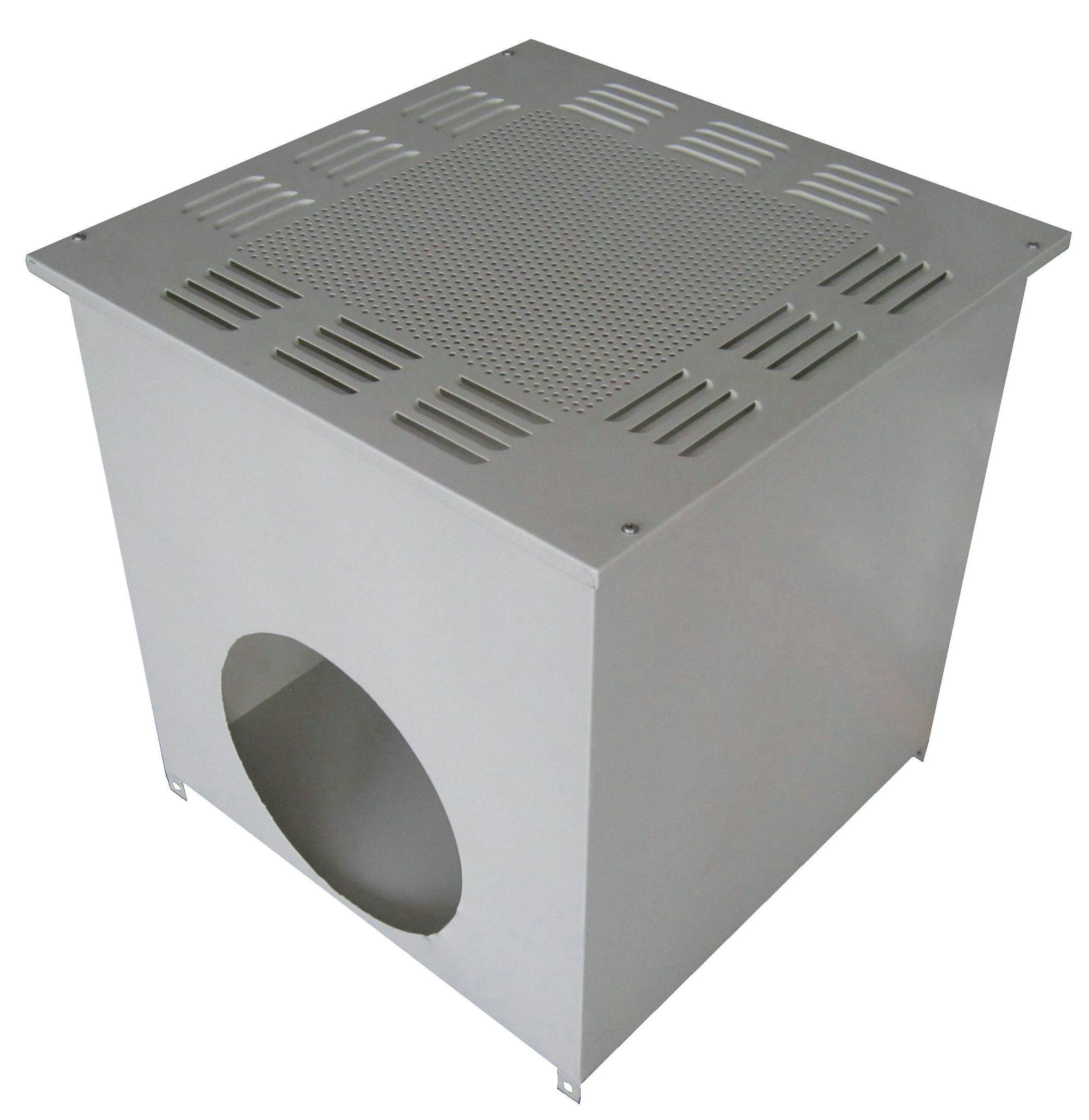

There are two types of flange openings, square and round. It has a compact structure, reliable sealing, and thermal insulation cotton is available.
※Application Fields
Suitable for non-uniform flow clean rooms of various grades and multiple roof structures.
※Size&Data
Mini pleat fine efficiency air supply outlet | Model | LJ-DCT320-2 | LJ-DCT484-2 | LJ-DCT610-2 |
Box size (W*L*H) (mm) | 370*370*380 | 534*534*380 | 660*660*380 |
Filter size (W*L*H) (mm) | 320*320*90 | 484*484*90 | 610*610*90 |
Flange size (A*B) (mm) | 200*200 | 320*200 | 400*200 |
Rated airflow (m³/h) | 500 | 1000 | 1500 |
Deep Pleat(cardboard) fine efficiency air supply outlet | Model | LJ-DCT320-3 | LJ-DCT484-3 | LJ-DCT610-3 |
Box size (W*L*H) (mm) | 370*370*500 | 534*534*500 | 660*660*500 |
Filter size (W*L*H) (mm) | 320*320*220 | 484*484*220 | 610*610*220 |
Flange size (A*B) (mm) | 200*200 | 320*200 | 400*200 |
Rated airflow (m³/h) | 500 | 1000 | 1500 |
Besides the size above, custom size acceptable.
