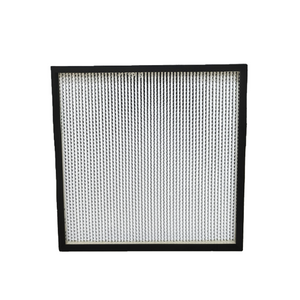

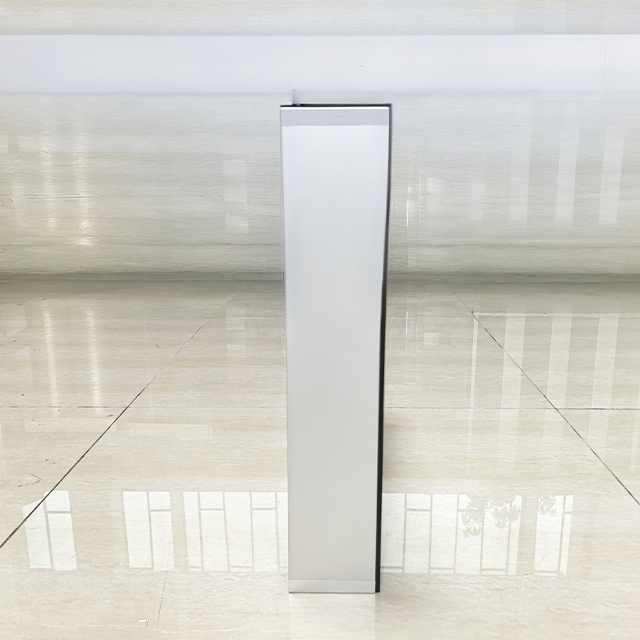

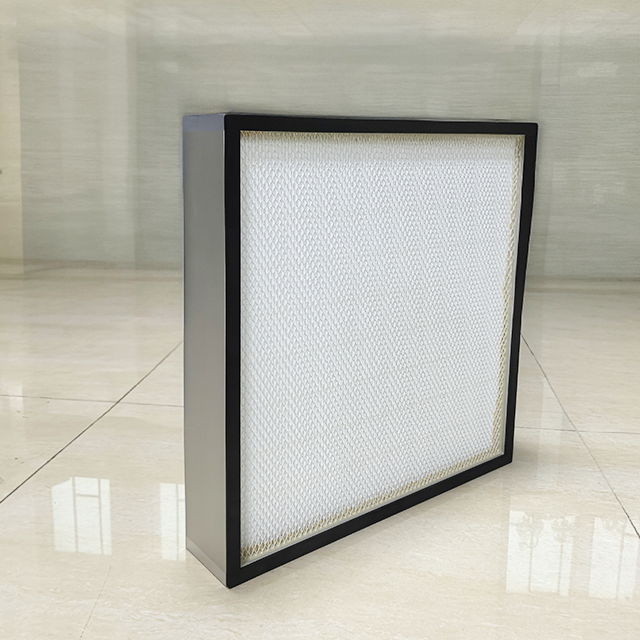

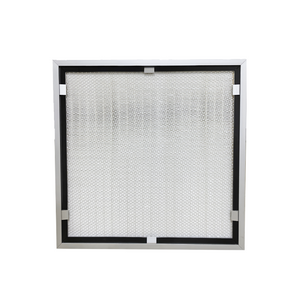

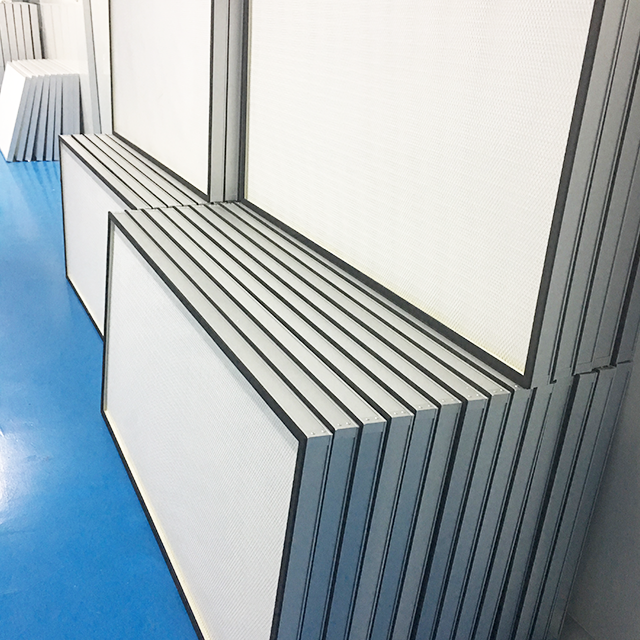

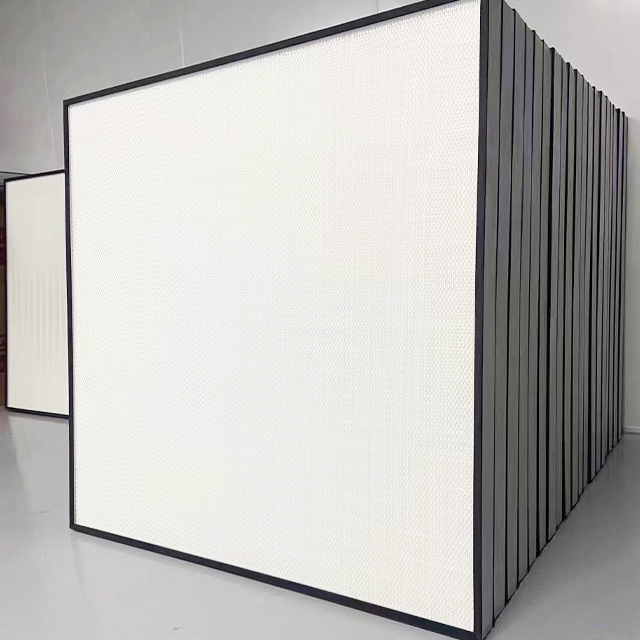

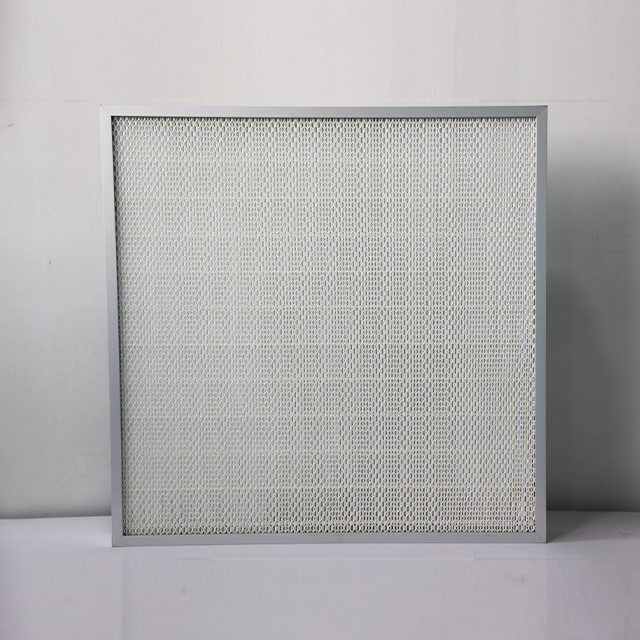

Mini-pleat Fine Efficiency Air Filter
※Product Features
1. Patented technology to ensure effective use of the “V” shaped air tunnel;
2. Anodizing aluminum profile frame,metal cover on both air inlet side and air extraction side;
3. Special seamless sealing technology to ensure good elasticity,no deformation,no peeling off,no leakage during installation and use.
4. Anti aging sealing strip,no deformation. High airflow,low resistance,to ensure long lifetime.
※Application Field
End of cleanroom.
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Frame:aluminum profile/ aluminum sheet/ zinc-coated steel sheet/ SS
Sealant:two-component polyurethane adhesive
Sealing strip:EVA/ Neoprene
Separator:polyolefin hot-melt adhesive
Filtration Efficiency:99.99%~99.999%@0.3μm
Available thickness(mm) of aluminum profile frame:46,50,69,80,90,96,120
Max.temperature applicable: 70℃
Max.humidity applicable: 100%
※Size&Data
Size (H*W*D) (mm) | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
305*305*50 | 200 | 200 | 400~600 | 1.8 | 100 | H13~H14 |
484*484*50 | 500 | 200 | 400~600 | 4.6 | 300 | H13~H14 |
610*610*50 | 800 | 200 | 400~600 | 7.5 | 450 | H13~H14 |
610*915*50 | 1200 | 200 | 400~600 | 11.2 | 700 | H13~H14 |
610*1220*50 | 1600 | 200 | 400~600 | 14.9 | 900 | H13~H14 |
305*305*69 | 260 | 200 | 400~600 | 2.5 | 150 | H13~H14 |
484*484*69 | 600 | 200 | 400~600 | 6.6 | 400 | H13~H14 |
610*610*69 | 1000 | 200 | 400~600 | 10.7 | 650 | H13~H14 |
610*915*69 | 1500 | 200 | 400~600 | 16 | 950 | H13~H14 |
610*1220*69 | 2000 | 200 | 400~600 | 21.3 | 1000 | H13~H14 |
610*610*90 | 1500 | 200 | 400~600 | 14.9 | 900 | H13~H14 |
610*915*90 | 2200 | 200 | 400~600 | 22.3 | 1200 | H13~H14 |
610*1220*90 | 3000 | 200 | 400~600 | 29.8 | 1800 | H13~H14 |
Besides the size above, custom size acceptable.
