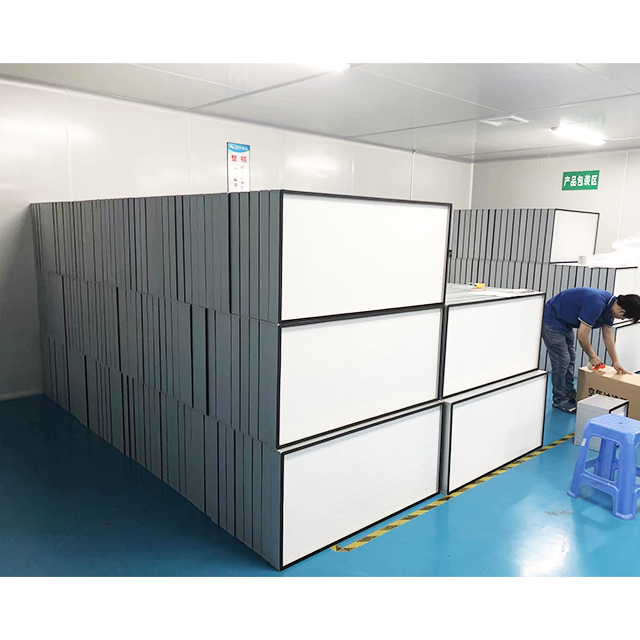

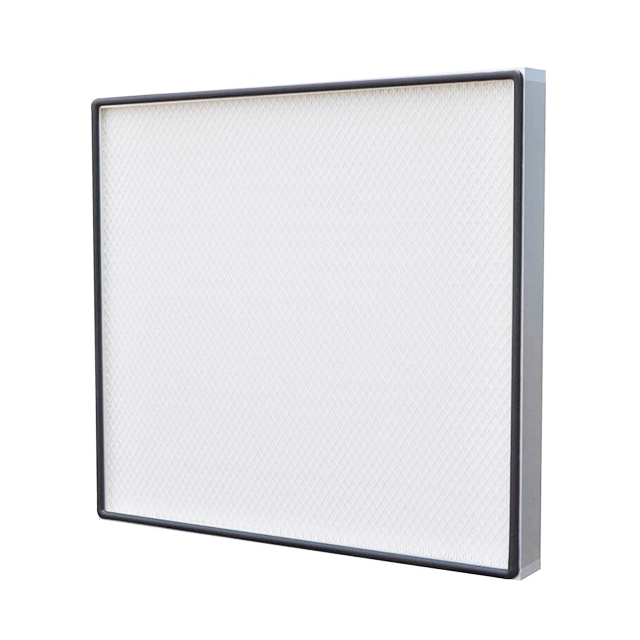

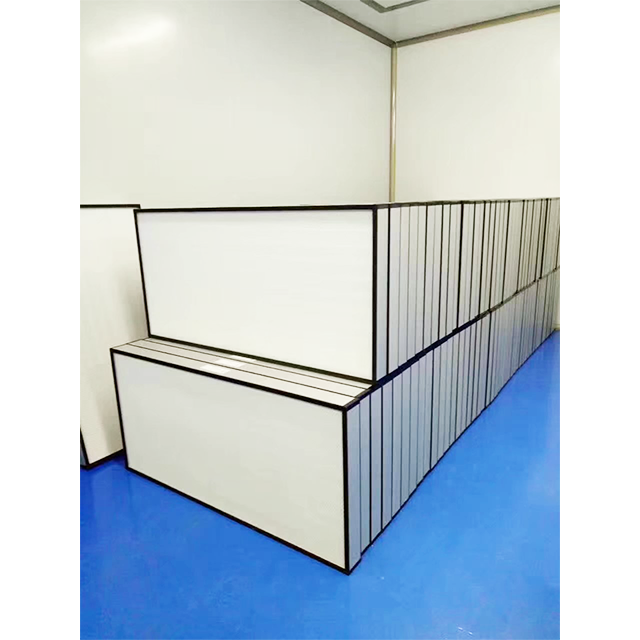

Ultra Fine Efficiency Air Filter
※Product Features
1.HV filter element imported from USA,with high humidity resistance,fine efficiency low resistance and large dust capacity;
2. Anodizing aluminum profile frame,metal cover on both air inlet side and air extraction side to ensure no damage to filter element;
3. Special seamless sealing technology to ensure good elasticity,no deformation,no peeling off,no leakage during installation and use.
※Advantages
Attractive appearance,stable structure,seamless sealing technology,convenient replacement.
※Application Field
Widely used in operating rooms,laboratories,pharmaceutical rooms,microelectronics facilities,film and optical fiber equipment manufacturing and food processing plant, which has a higher requirement about cleanness.
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Frame:aluminum profile/ zinc-coated steel sheet/ SS
Sealant:two-component polyurethane adhesive
Sealing strip:EVA/ Neoprene
Separator:polyolefin hot-melt adhesive
Filtration Efficiency:99.9995%~99.999995%@0.12μm
Available thickness(mm) of aluminum profile frame:46,50,69,80,90,96,120
Max.temperature applicable: 70℃
Max.humidity applicable: 100%
※Size&Data
Size(H*W*D) (mm) | Rated airflow(m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
320*320*50 | 120 | 200 | 400~600 | 2.0 | 130 | U15~U17 |
484*484*50 | 300 | 200 | 400~600 | 4.5 | 300 | U15~U17 |
610*610*50 | 500 | 200 | 400~600 | 7.1 | 428 | U15~U17 |
610*915*50 | 730 | 200 | 400~600 | 10.6 | 635 | U15~U17 |
610*1220*50 | 980 | 200 | 400~600 | 14 | 842 | U15~U17 |
305*305*69 | 150 | 200 | 400~600 | 2.9 | 173 | U15~U17 |
484*484*69 | 400 | 200 | 400~600 | 6.5 | 393 | U15~U17 |
610*610*69 | 600 | 200 | 400~600 | 10.3 | 622 | U15~U17 |
610*915*69 | 900 | 200 | 400~600 | 15.4 | 923 | U15~U17 |
610*1220*69 | 1200 | 200 | 400~600 | 20.4 | 1224 | U15~U17 |
Besides the size above, custom size acceptable.
