1.Ultra-thin mini pleat filtersadopted to minimize size of static pressure box. Matched with stainless-steel worktop and glass baffleto display spacious and bright entire work area.
2.Equipped with a detachable largeairflow pre-filtration coarse filterto better protect fine efficiency filter and ensure air velocity.
3.Easy to operatewith horizontal-flow pattern and open-table design.
4.Adjustable airflow airsupply system, with multiple gears for adjusting the air velocity, enablingit in an ideal stateto work area.
※Application Fields
Medical and health, biological pharmacy, food, medical scientific experiments, optical and optoelectronic, electronics, aseptic laboratory experiments, aseptic microbiological inspection, plant tissue culture inoculation and other scientific environments and production departments.
※Size&Data
Item
Single person horizontal flow Grade I workbench
Two persons horizontal flow Grade I workbench(small)
Two persons horizontal flow Grade I workbench(big)
Model
LJ-CBL-960
LJ-CBL-1200
LJ-CBL-1500
Outer dimension(W*L*H)(mm)
960*780*1580
1200*820*1580
1500*900*1580
Working dimension(W*L*H))(mm)
930*600*650
1170*600*650
1470*600*650
Clean grade(ISO14644-1 standard)
I
Rated airflow(m³/h)
1200
1800
2300
Average velocity(m/s)
0.3~0.6
Filtration efficiency(%@0.3μm)
99.99
Illuminance(≧lux)
300
Power(w)
220V/50Hz/
280w
220V/50Hz/
405w
220V/50Hz/
490w
Noise(dB)
(edge of the equipment)
≦65
Fluorescent lamp
20w*1pc
30w*1pc
40w*1pc
Material
Box:cold-rolled steel with spray coating or all-stainless-steel
Worktable:satin-finished stainless-steel
Besides the size above, custom size acceptable.

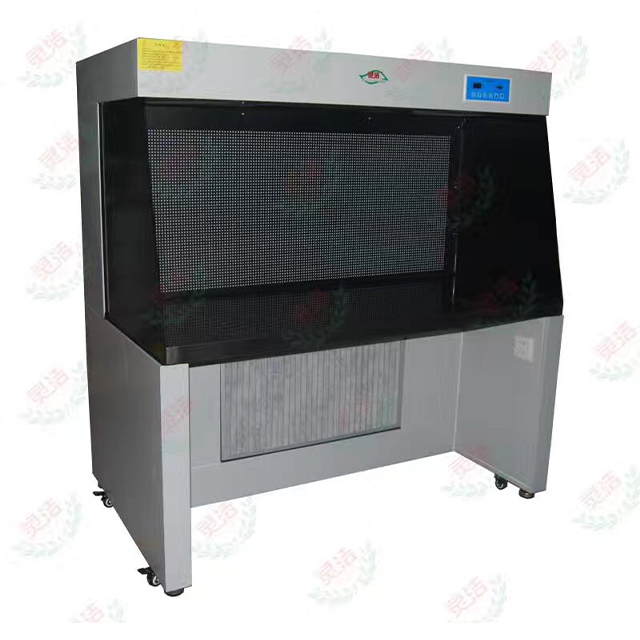

Horizontal Flow Ultra-clean Workbench
※Product Features
1.Ultra-thin mini pleat filtersadopted to minimize size of static pressure box. Matched with stainless-steel worktop and glass baffleto display spacious and bright entire work area.
2.Equipped with a detachable largeairflow pre-filtration coarse filterto better protect fine efficiency filter and ensure air velocity.
3.Easy to operatewith horizontal-flow pattern and open-table design.
4.Adjustable airflow airsupply system, with multiple gears for adjusting the air velocity, enablingit in an ideal stateto work area.
※Application Fields
Medical and health, biological pharmacy, food, medical scientific experiments, optical and optoelectronic, electronics, aseptic laboratory experiments, aseptic microbiological inspection, plant tissue culture inoculation and other scientific environments and production departments.
※Size&Data
Item
Single person horizontal flow Grade I workbench
Two persons horizontal flow Grade I workbench(small)
Two persons horizontal flow Grade I workbench(big)
Model
LJ-CBL-960
LJ-CBL-1200
LJ-CBL-1500
Outer dimension(W*L*H)(mm)
960*780*1580
1200*820*1580
1500*900*1580
Working dimension(W*L*H))(mm)
930*600*650
1170*600*650
1470*600*650
Clean grade(ISO14644-1 standard)
I
Rated airflow(m³/h)
1200
1800
2300
Average velocity(m/s)
0.3~0.6
Filtration efficiency(%@0.3μm)
99.99
Illuminance(≧lux)
300
Power(w)
220V/50Hz/
280w
220V/50Hz/
405w
220V/50Hz/
490w
Noise(dB)
(edge of the equipment)
≦65
Fluorescent lamp
20w*1pc
30w*1pc
40w*1pc
Material
Box:cold-rolled steel with spray coating or all-stainless-steel
