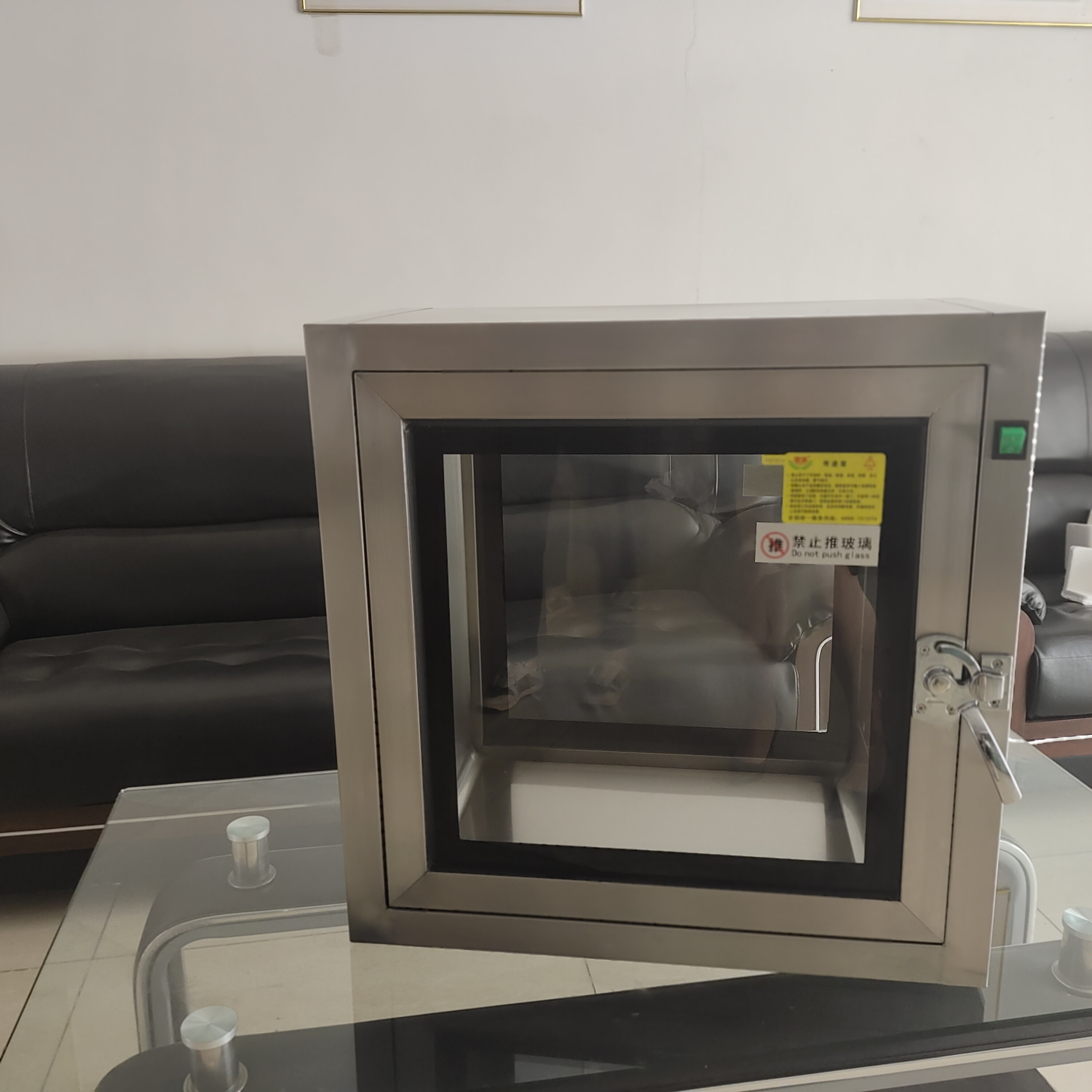

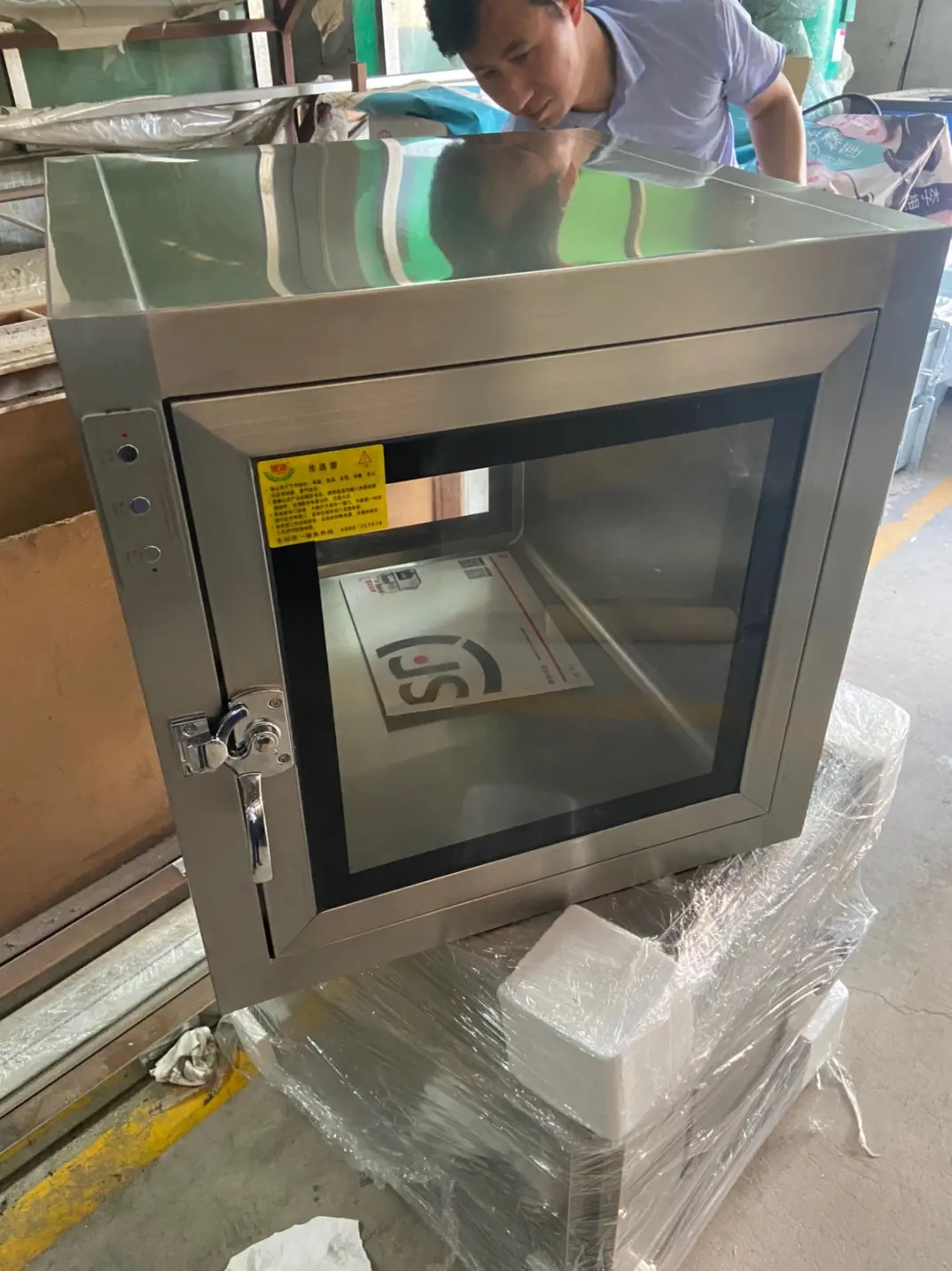

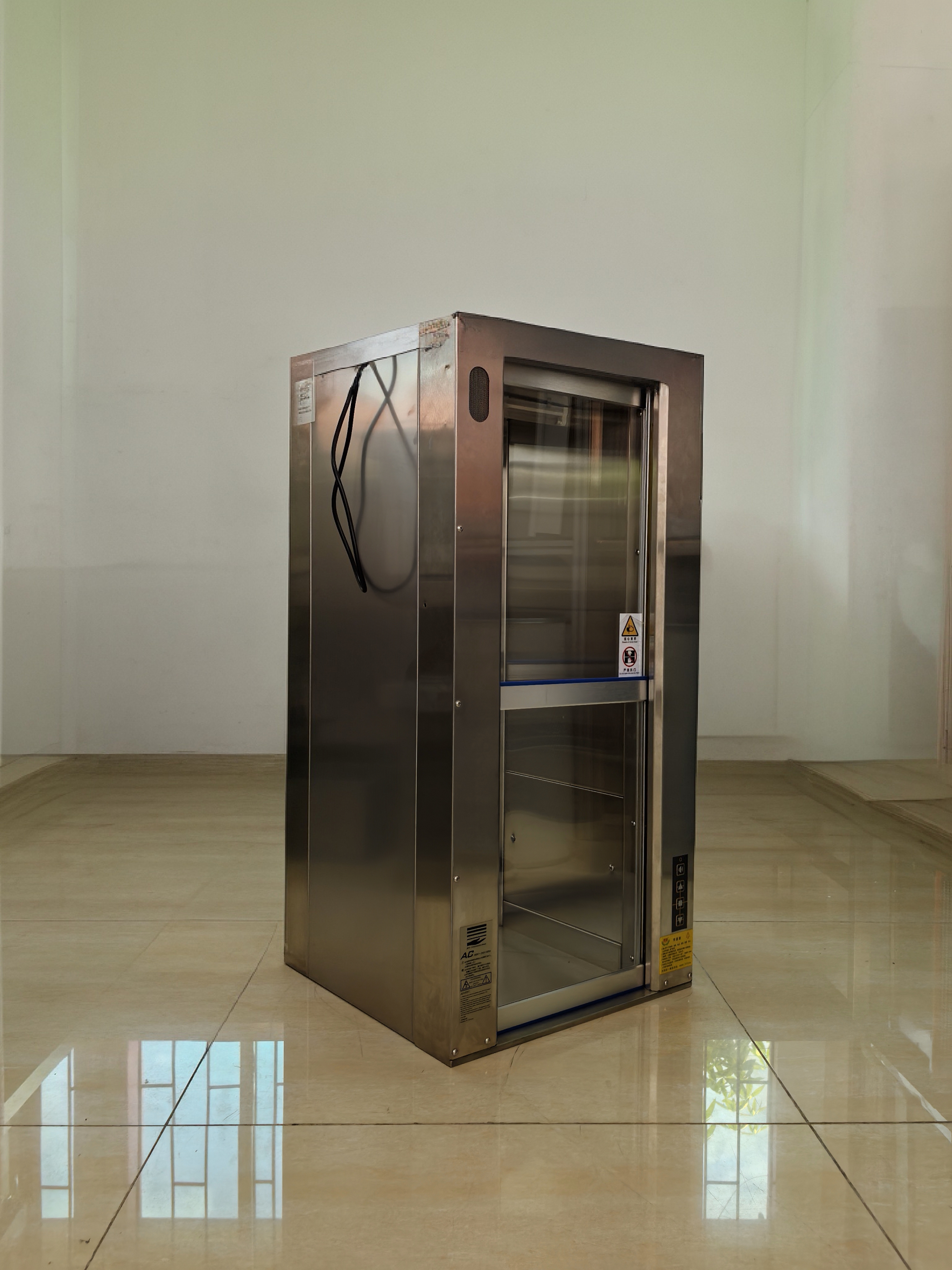

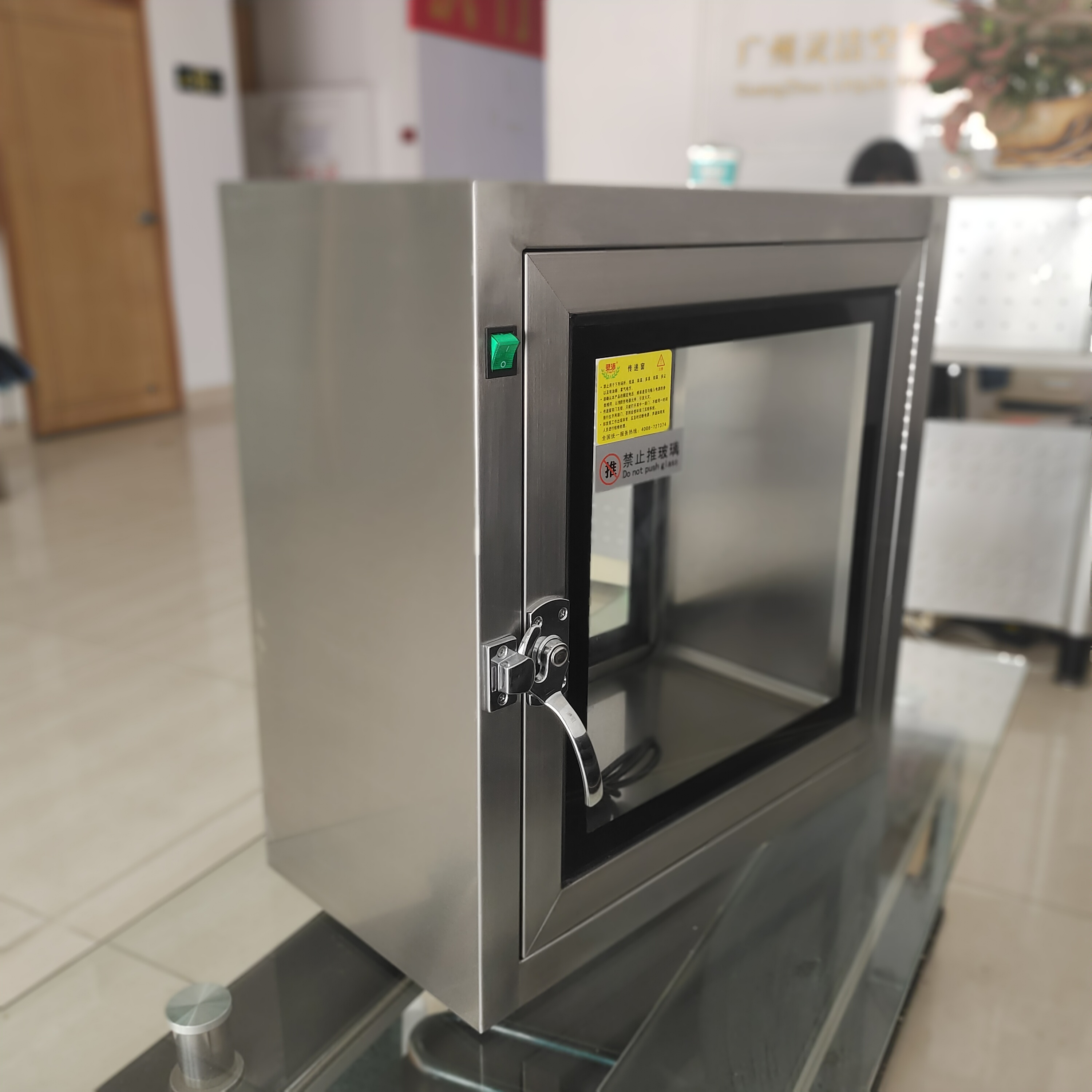

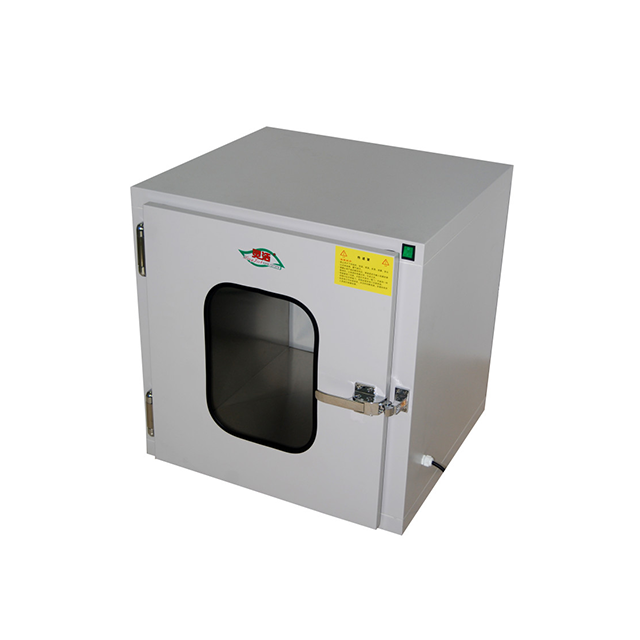

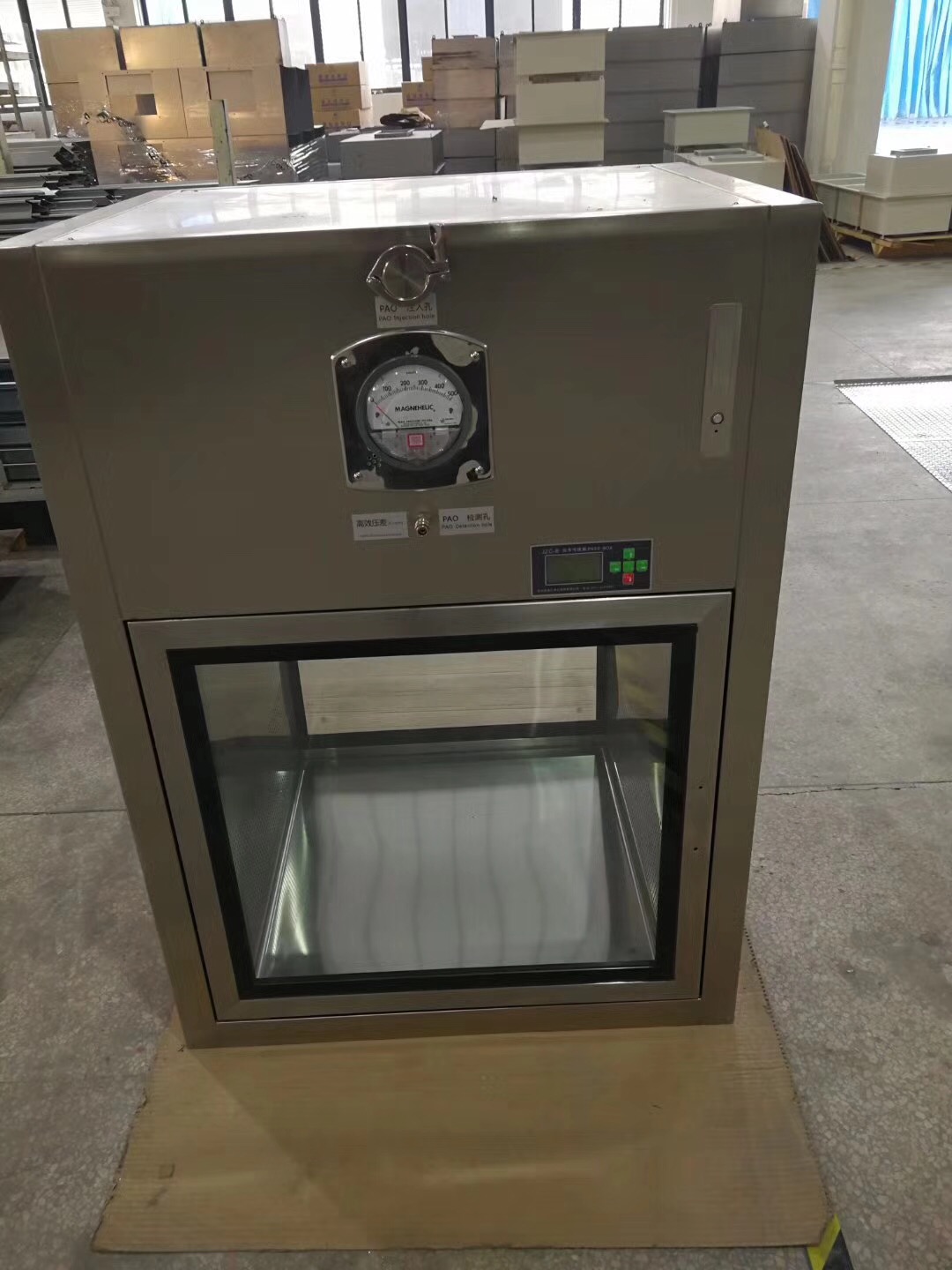

Pass Box
※Wide-ranging Application
The ordinary pass box is an auxiliary device for cleanrooms. It is mainly used for the transfer of small items between clean areas and clean areas, as well as between non-clean areas and clean areas. This helps to reduce the number of door openings, minimizing the contamination of the cleanroom environment or the clean area to the lowest possible level.
※Core Value
It can function as an air lock, preventing high-pressure leakage in the cleanroom. It also reduces the movement time of operators, thereby preventing dust from entering and maintaining the cleanliness level.
※Carefully Selected Materials
The working area is made of satin-finished stainless steel, which is smooth and flat. The surface of the cabinet can be made of cold-rolled steel with spray coating or all-stainless-steel materials.
※Mechanical and Electronic Interlocks
Mechanical and electronic interlock devices ensure that the two side doors cannot be opened simultaneously.
※Good Air Tightness
The pass box is equipped with special sealing strips or sealants, ensuring excellent air tightness.
※Size&Data
Model | LJ-PB-500 | LJ-PB-600 | LJ-PB-800 |
Working dimension(W*L*H))(mm) | 500*500*500 | 600*600*600 | 800*800*800 |
Outer dimension(W*L*H)(mm) | 660*500*590 | 760*600*690 | 960*800*890 |
Box material | cold-rolled steel with spray coating or all-stainless-steel |
Inner wall material | SS |
Classification | Standard box or floor-level box |
Box thickness(mm) | 1.0/ 1.2 |
Power | 220V/50Hz |
Optional accessories:Electronic interlocks/ Mechanical interlocks/ Ultraviolet Germicidal Lamp |
Besides the size above, custom size acceptable.
