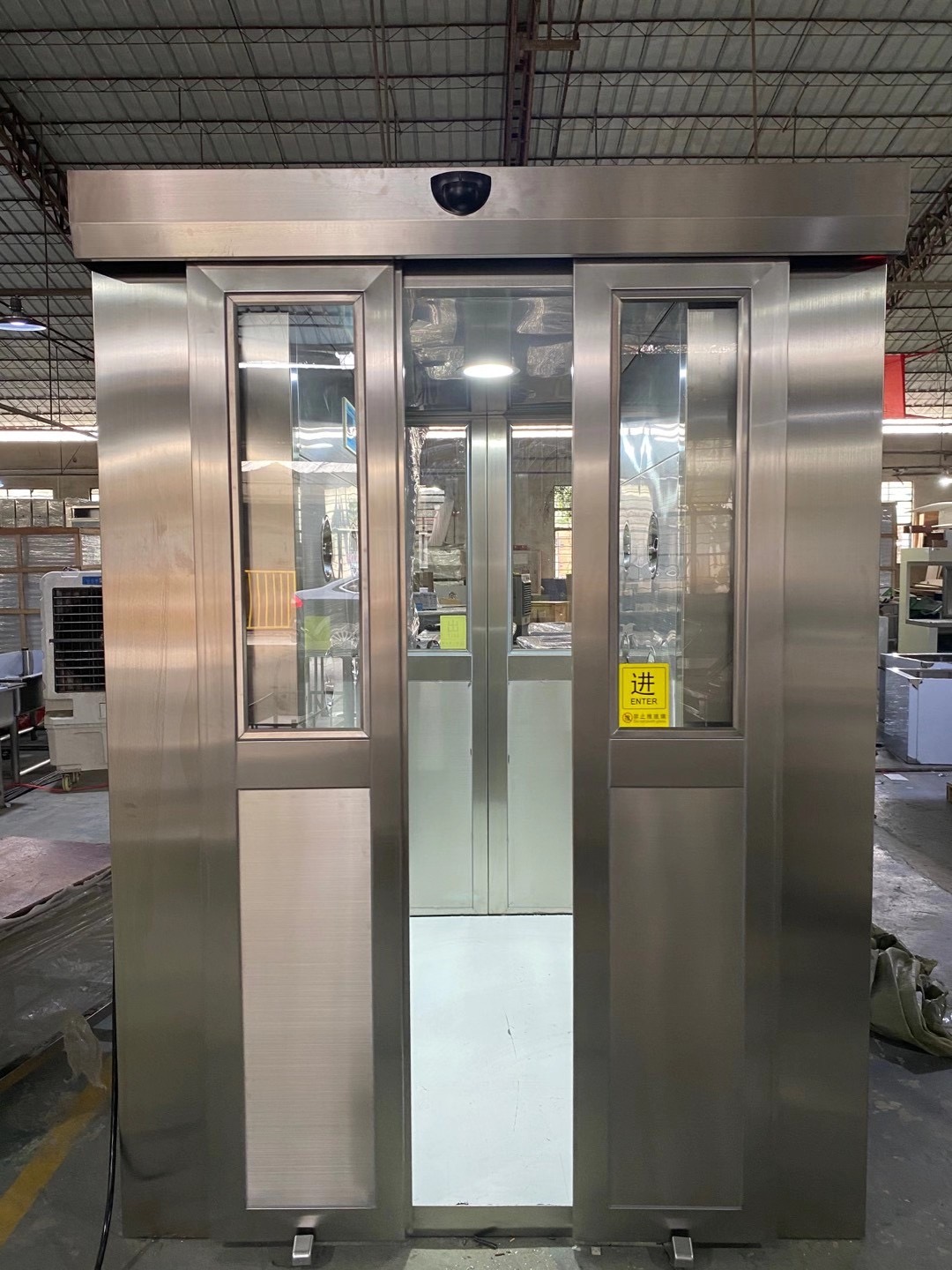

Air Shower for Goods
Air shower for goods is a necessary passage for goods to enter the clean room. It can reduce the pollution problems caused by goods entering and leaving the clean room. The two doors of the shower are electronically interlocked, and it can also function as an air lock to prevent unpurified air from entering the clean room.
The high-tech intelligent voice shower produced by our company is equipped with a voice prompt system. During the blowing process, the automatic voice system gives prompts, and the user-friendly voice prompt makes people feel cordial and achieves an effective purification effect. The clean air flow after being filtered by a fine-efficiency filter is sprayed onto the goods from all directions by rotatable nozzles, effectively and quickly removing dust particles. The air with dust particles is filtered by coarse and fine-efficiency filters and then recirculated back to the shower.

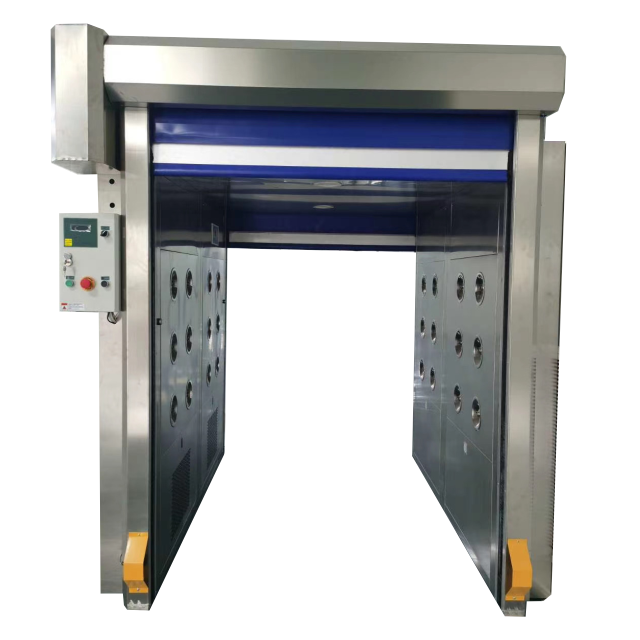

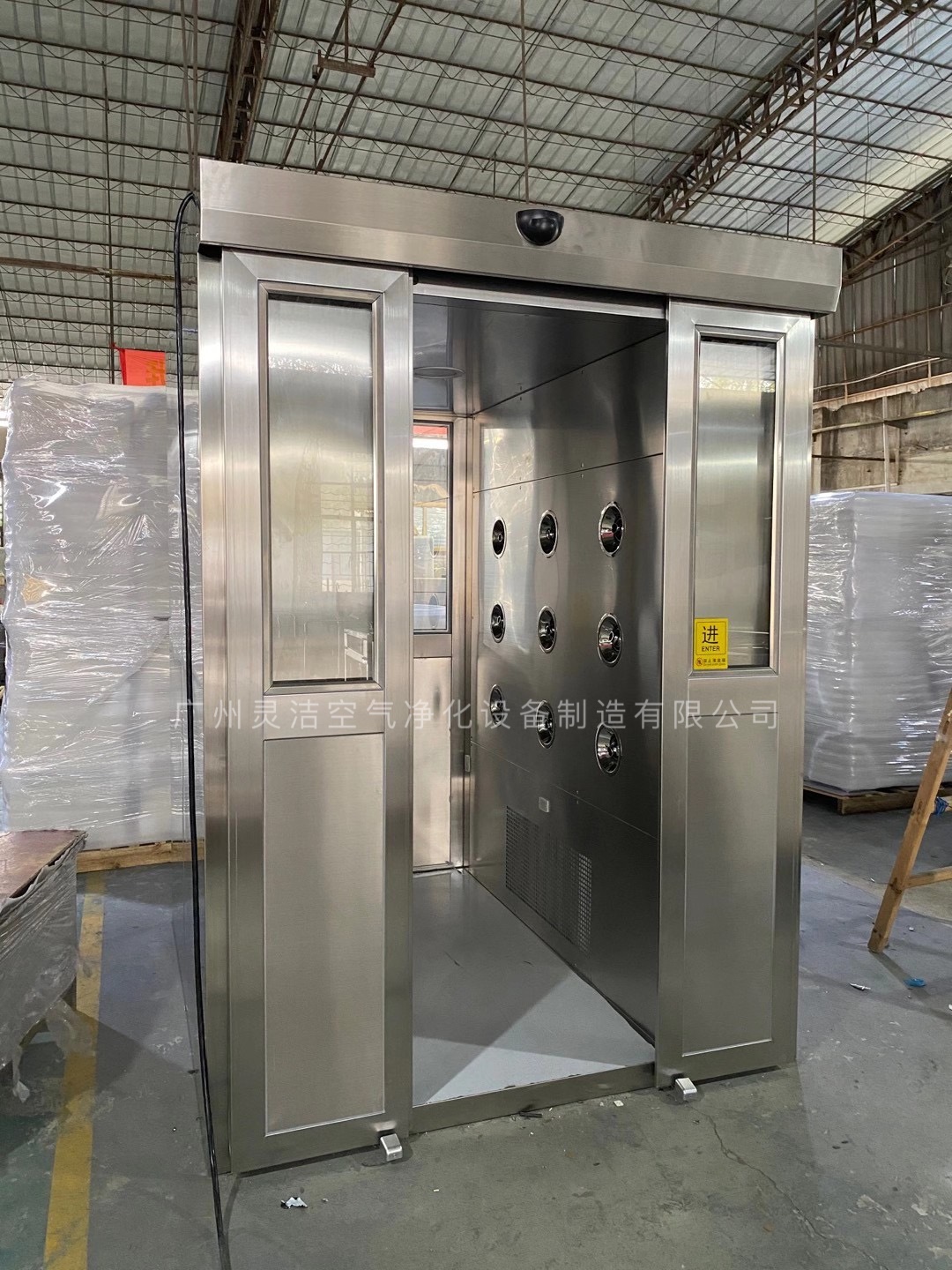

Series: Sliding-door shower, Double-door shower, Rolling-shutter shower.
※Size&Data
Item | Air shower for goods | Air shower for goods | Air shower for goods | |
Model | LJ--1000 | LJ--2000 | LJ--3000 | |
Outer dimension(W*L*H)mm | 2000*1000*2180 | 2000*2000*2180 | 2000*3000*2180 | |
Inner dimension(W*L*H)mm | 1500*1000*1980 | 1500*2000*1980 | 1500*3000*1980 | |
Power and quantity of fan | 380V/50Hz/ 0.55kw 2 sets | 380V/50Hz/ 1.15kw 4 sets | 380V/50Hz/ 0.55kw 6 sets | |
Airflow of fan(m³/h) | 2500 | 5000 | 7500 | |
No of SS nozzles | 12 | 24 | 36 | |
Air speed(m/s) | 25 | 25 | 25 | |
Fine filter | Size(mm) | 595*595*46 2 sets | 595*595*46 4 sets | 595*595*46 6 sets |
Efficiency(%) | 99.99%@0.3μm | 99.99%@0.3μm | 99.99%@0.3μm | |
Initial resistance(Pa) | <220 | <220 | <220 | |
Coarse filter | Size(mm) | 380*775*17 2 sets | 380*775*17 4 sets | 380*775*17 6 sets |
Initial resistance(Pa) | <30 | <30 | <30 |
Besides the size above, custom size acceptable.
