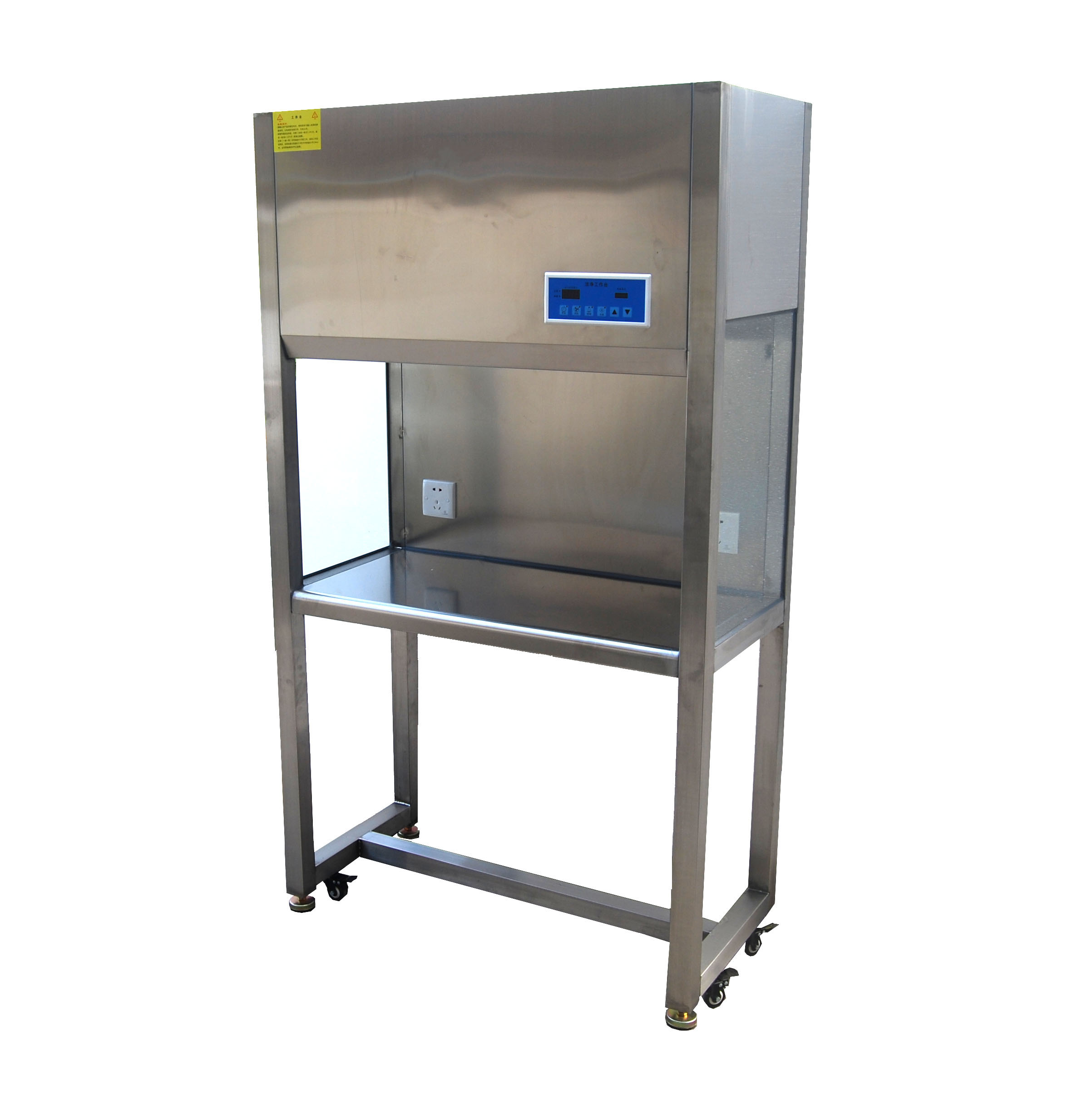

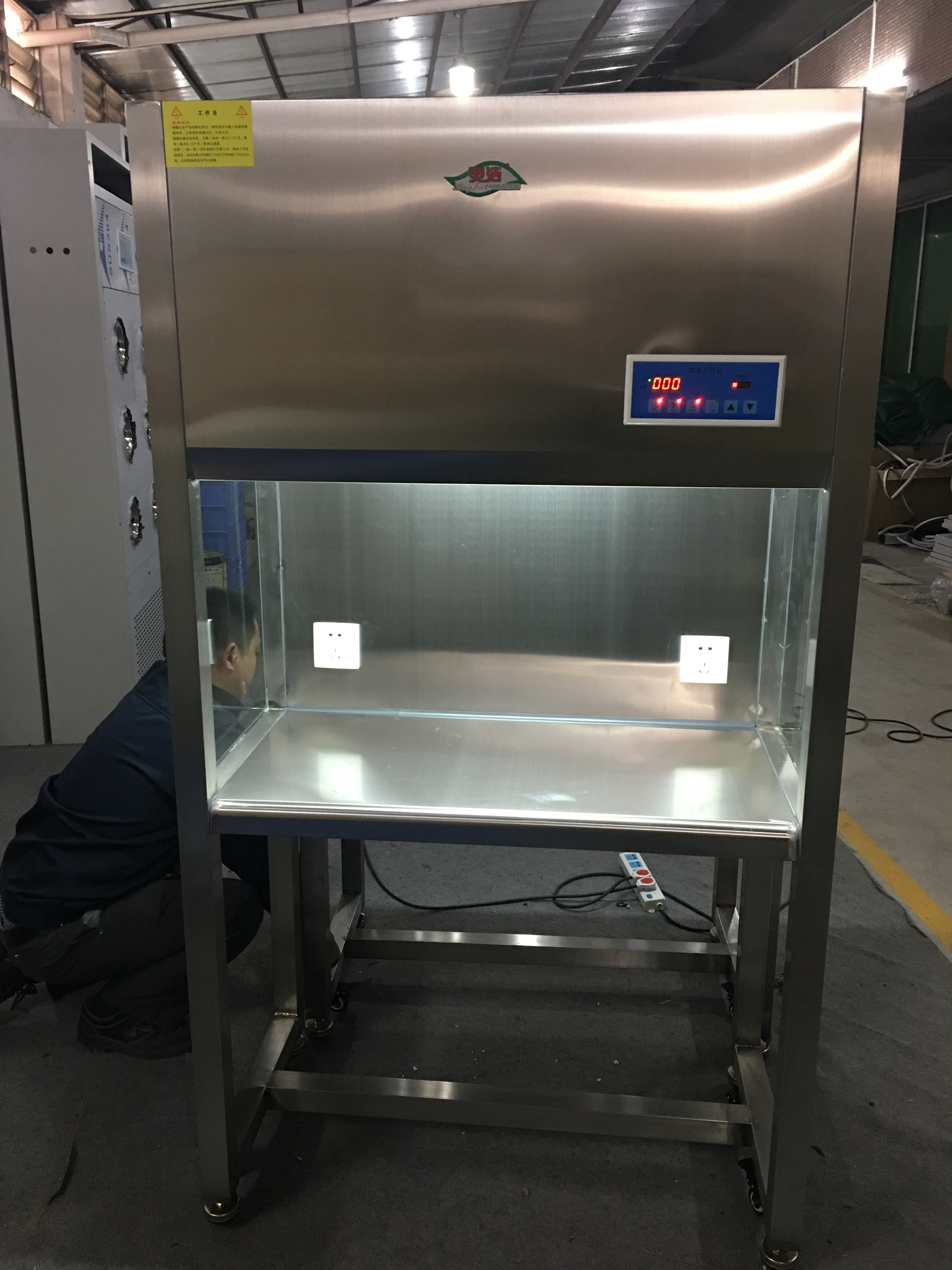

Vertical Flow Ultra-clean Workbench
※Product Features
1. Ultra-thin mini pleat filters adopted to minimize size of static pressure box. Matched with stainless-steel worktop and glass side baffle to display spacious and bright entire work area.
2. Adjustable airflow air-supply system with a mini touch screen to adjust the air velocity, enabling it in an ideal state to work area. Direct-drive high-efficiency centrifugal fan adopted,featuring long service life, low noise, maintenance-free and small vibration.
3. Equipped with a detachable large airflow pre-filtration coarse filter to better protect fine efficiency filter and ensure air velocity.
※Application Fields
Medical and health, biological pharmacy, food, medical scientific experiments, optical and optoelectronic, electronics, aseptic laboratory experiments, aseptic microbiological inspection, plant tissue culture inoculation and other scientific environments and production departments.
※Size&Data
Item | Single person vertical flow Grade I workbench | Two persons vertical flow Grade I workbench(small) | Two persons vertical flow Grade I workbench(big) |
Model | LJ-CBV-1000 | LJ-CBV-1200 | LJ-CBV-1500 |
Outer dimension(W*L*H)(mm) | 1000*700*1800 | 1200*700*1800 | 1500*700*1800 |
Working dimension(W*L*H))(mm) | 900*650*600 | 1100*650*600 | 1400*650*600 |
Clean grade (ISO14644-1 standard) | I |
Rated airflow(m³/h) | 1200 | 1800 | 2300 |
Average velocity(m/s) | 0.3~0.6 |
Filtration efficiency(%@0.3μm) | 99.99 |
Illuminance(≧lux) | 300 |
Power(w) | 220V/50Hz/ 280w | 220V/50Hz/ 405w | 220V/50Hz/ 490w |
Noise(dB) (edge of the equipment) | ≦65 |
Fluorescent lamp | 10w*1pc | 30w*1pc | 40w*1pc |
Material | Box:cold-rolled steel with spray coating or all-stainless-steel Worktable:satin-finished stainless-steel |
Besides the size above, custom size acceptable.
