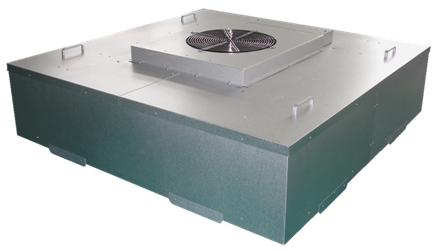

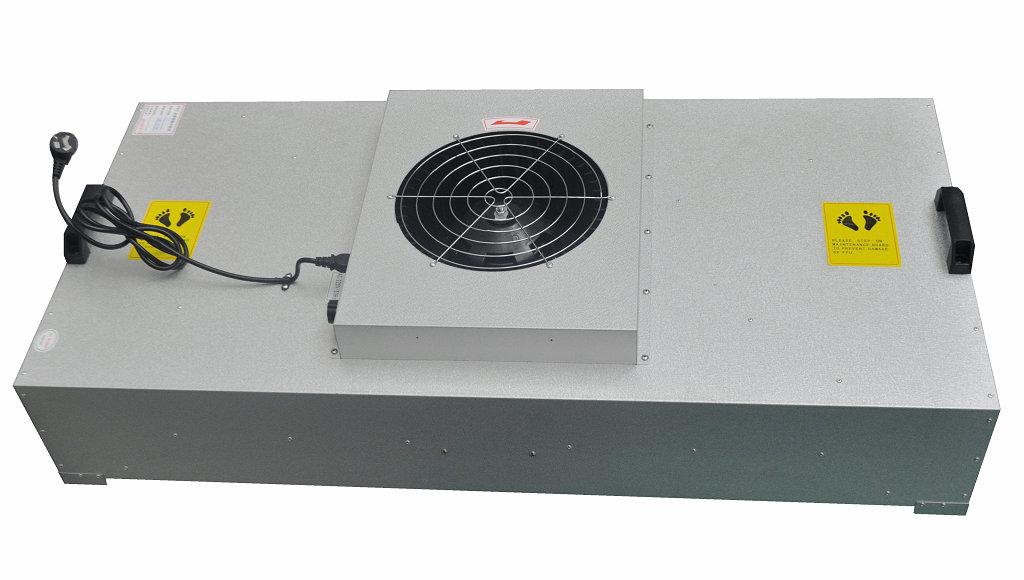

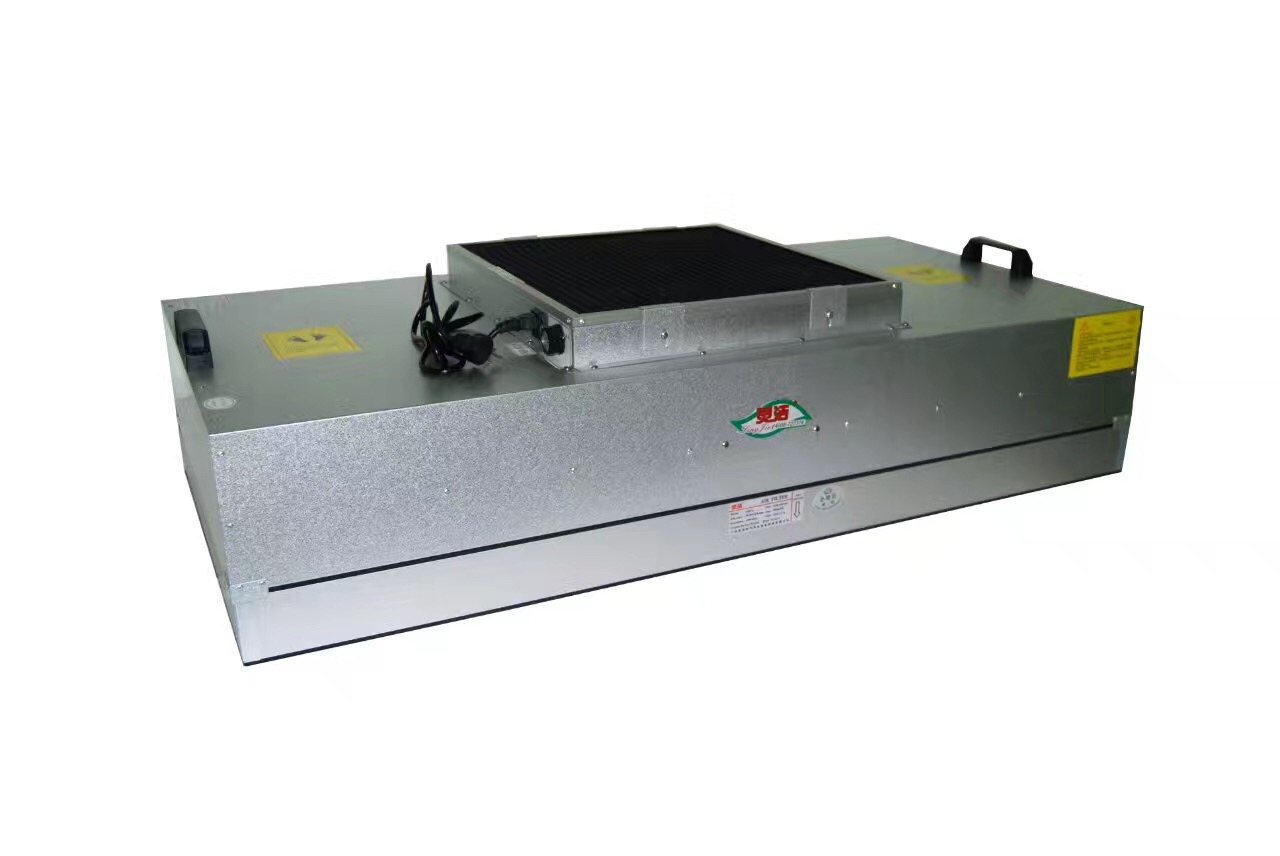

Fan Filter Unit(FFU)
※Product Introduction
1. Stepless speed regulation design, requires no maintenance, features low vibration and low noise.
2. Before leaving the factory, each unit is scanned and tested with a dust particle counter in accordance with the international standard ISO14644-1 to ensure quality. It can be controlled in groups of thousands, reducing the failure rate.
3. High energy-efficiency ratio and generates very little heat, which further reduces the heat generation in the additional working environment area.
4. Especially suitable for assembling into ultra-clean production lines. It can be arranged for single-unit use according to process requirements, or multiple units can be connected in series to form a Class 100 flow assembly line.
5. Direct-drive high-efficiency centrifugal fan. The shell structure is made of materials such as stainless steel and galvalume sheet, which is light-weight, corrosion-resistant, rust-proof, and aesthetically pleasing.
※Size&Data
Model | LJ-Q535-HNAC | LJ-Q335-HNAC | LJ-Q635-HNAC | LJ-Q135-HNAC | LJ-Q435-HNAC | LJ-Q235-HNAC |
Modular size (W*L*H) (mm) | 920*615*350 | 1175*575*350 | 1225*615*350 | 575*575*350 | 615*615*350 | 575*875*350 |
Static pressure box material | A3 cold-rolled sheet with plastic spraying/ galvalume sheet/ SS |
Airflow(m³/h) | 900 | 1000 | 1200 | 500 | 600 | 800 |
Average velocity(m/s) | 0.3~0.5 |
Static pressure outside box(Pa) | 190(10mmAq) |
Power(w) | 115 | 115 | 115 | 173 | 240 | 115 |
Weight(kg) | 31.5 | 37 | 40.5 | 21 | 23.5 | 27 |
Noise dB(1m below vertical fine efficiency) | 55~63 |
Fine efficiency filter spec. | Size(W*L*H)(mm) | 915*610*69 | 1170*570*69 | 1220*610*69 | 570*570*69 | 610*610*69 | 570*870*69 |
Efficiency | 99.99%@0.3μm |
Frame | Excellent aluminum |
Initial pressure loss | 110Pa@0.45m/s |
Fan spec. | Power | 220V/50Hz |
Type | Aluminum turbine fan |
Vibration coefficient | 0.2~0.5 |
Besides the size above, custom size acceptable.
