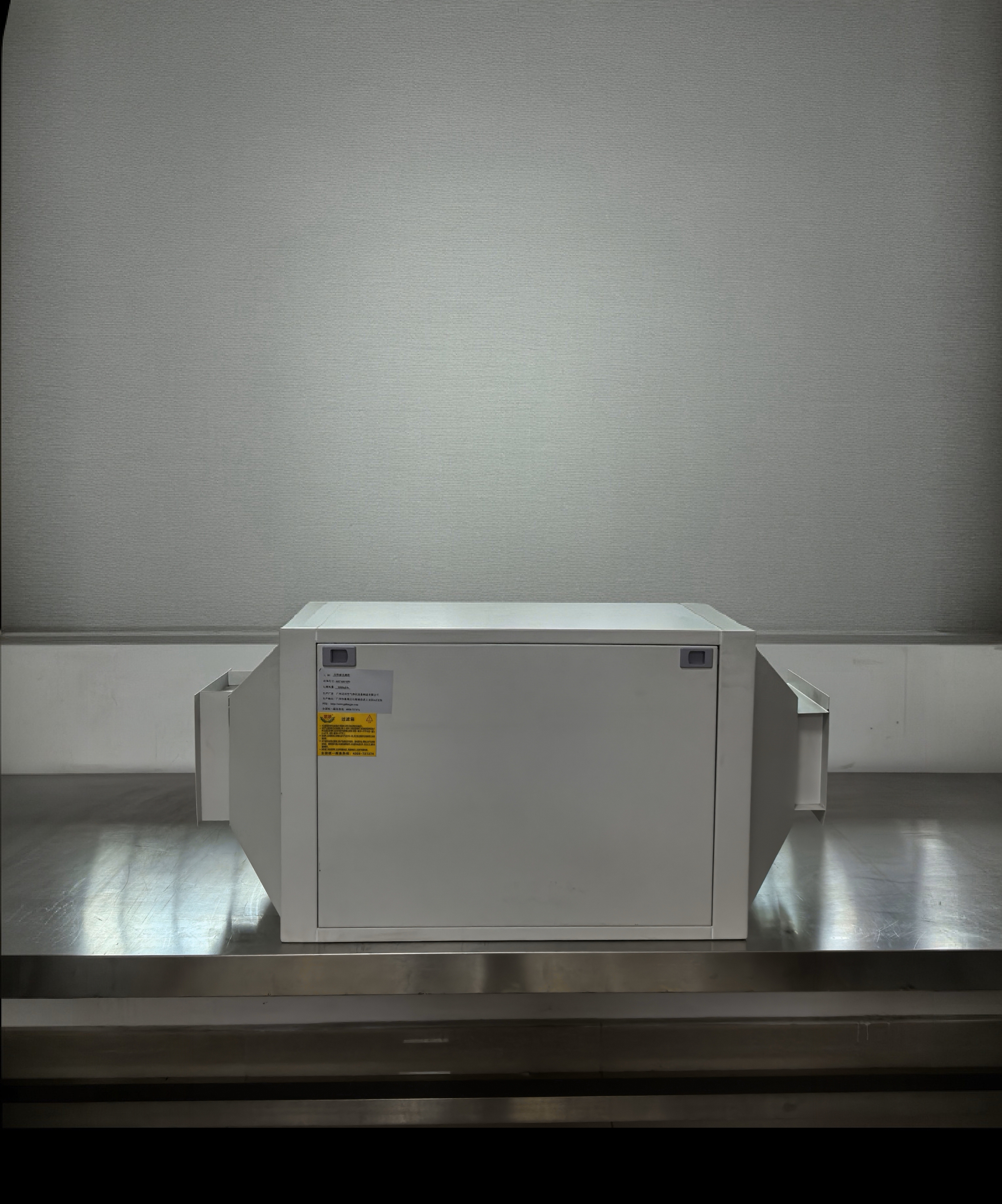

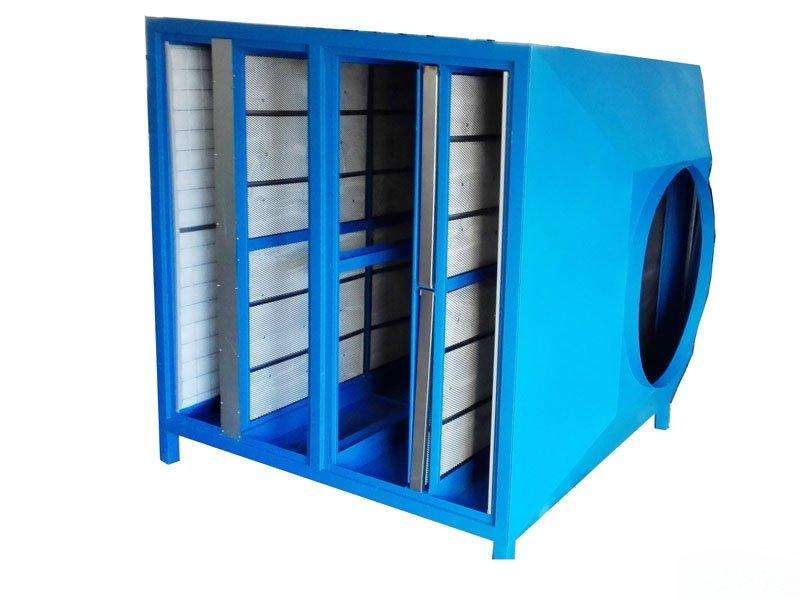

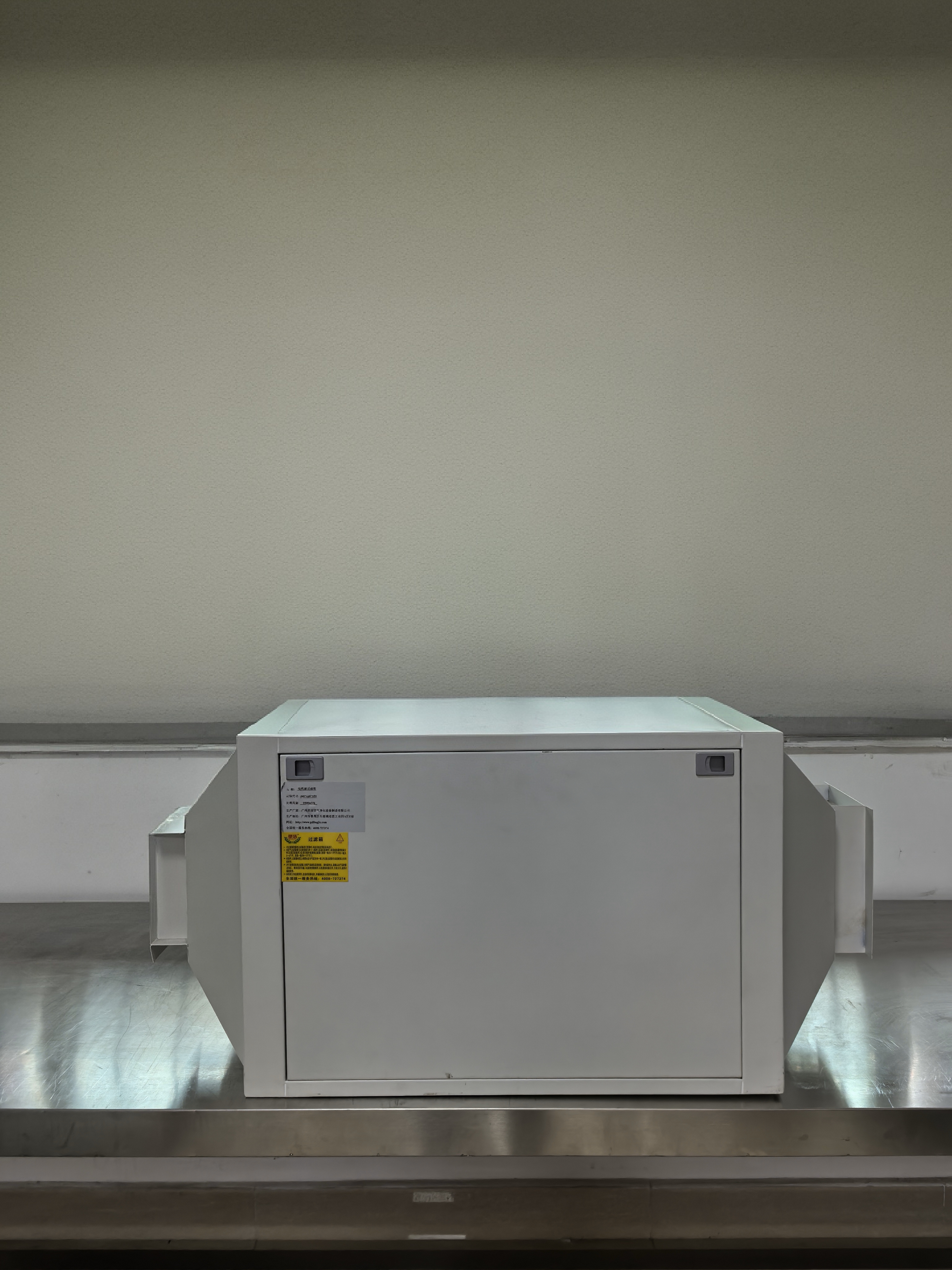

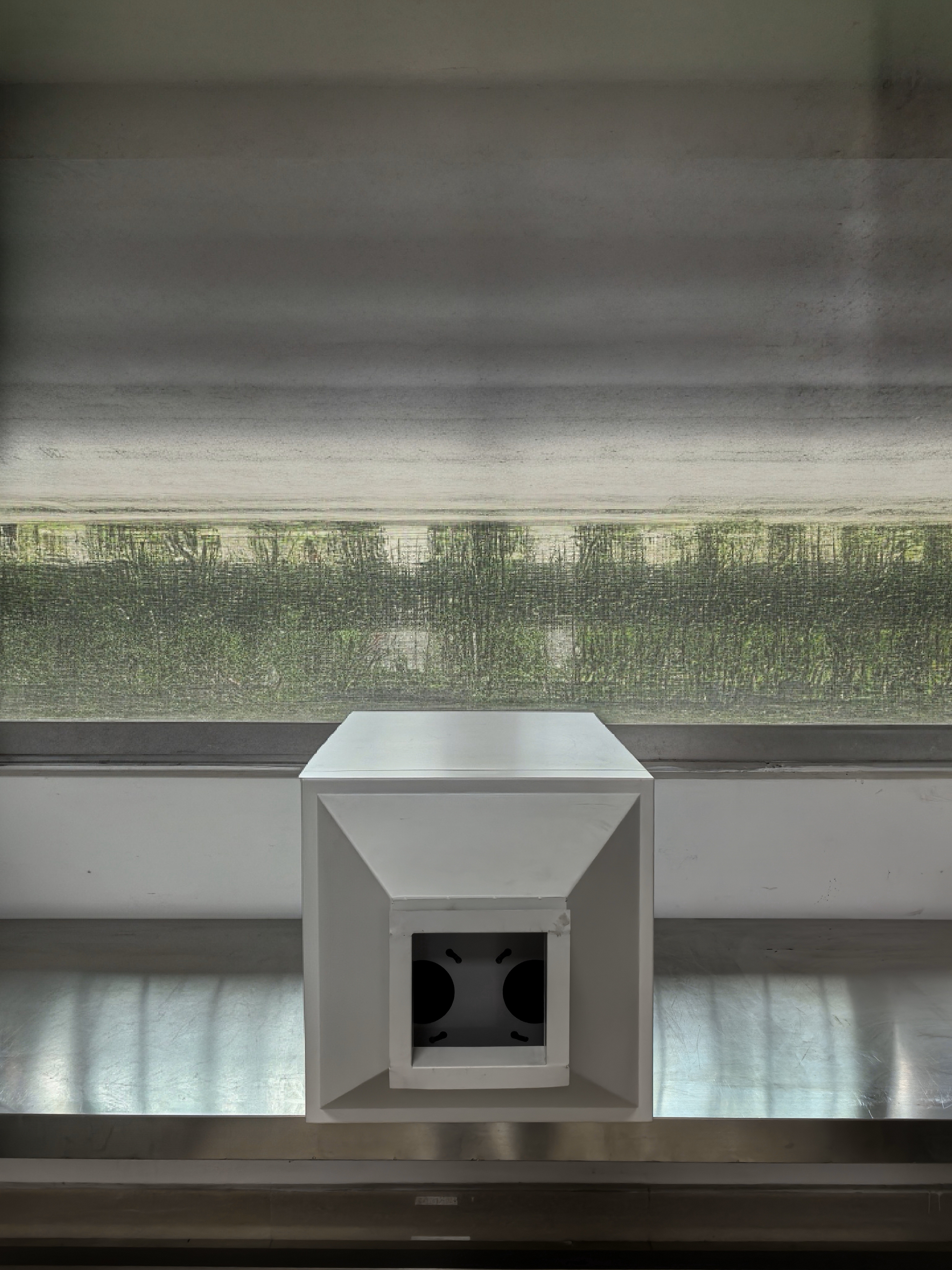

Fresh Air Cabinet
※Flexible Configuration
Filters with corresponding performance can be configured according to the special requirements of fresh air.
※Selectability and Diversity
Multiple flange sizes are available.
There are various options for fresh air volume, such as 1000m³/h, 2000m³/h, 3000m³/h, 4000m³/h, 5000m³/h, etc.
※Good Sealing Performance
It has excellent sealing performance. When connected to the air duct and equipped with professional filters, the fresh air cabinet conducts coarse filtration on the fresh air, ensuring that the air sent into the room is fresh and clean.
※High Professional Standard
It features a flexible and compact structure, low noise, stable operation, good adjustability of wind pressure, and long service life.
※Wide Application Range
Suitable for work environments with high fresh air requirements, such as laboratories, operating rooms, biopharmaceuticals, LED lights, circuit boards, microelectronics, the medical industry, and food processing. It is widely used in the ventilation systems of civil buildings. It can also be applied in scenarios like fire-fighting pressurized air supply in building construction and pressurized air-make-up for air purification.
※Size&Data
Model | LJ-FA-001 | LJ-FA-002 | LJ-FA-003 | LJ-FA-004 | LJ-FA-005 |
Outer dimension (W*L*H) (mm) | 800*800* 1200 | 800*800* 1200 | 1450*800* 1350 | 1450*800* 1500 | 1450*800* 1700 |
Airflow (ml³/s) | 1000~2000 | 2000~3000 | 3000~4000 | 4000~5000 | 5000~7000 |
Power(w) | 380V/ 50Hz/ 550w | 380V/ 50Hz/ 800w | 380V/ 50Hz/ 1100w | 380V/ 50Hz/ 2200w | 380V/ 50Hz/ 2200w |
Sheet | A3 cold - rolled steel sheet with baking finish/ SS |
Running noise dB | ≦67 |
Filtration efficiency | G1+H13 |
Besides the size above, custom size acceptable.
