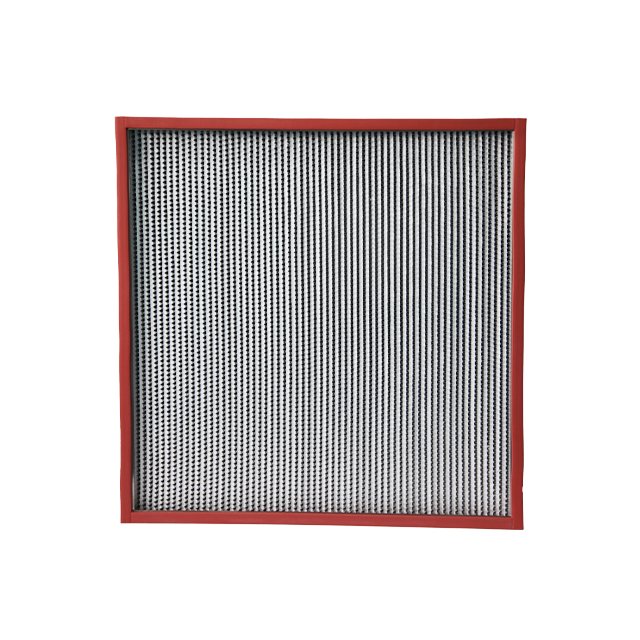

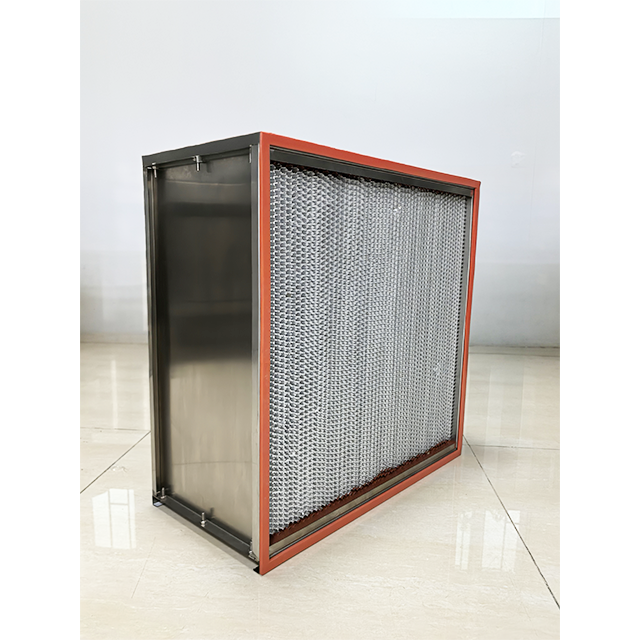

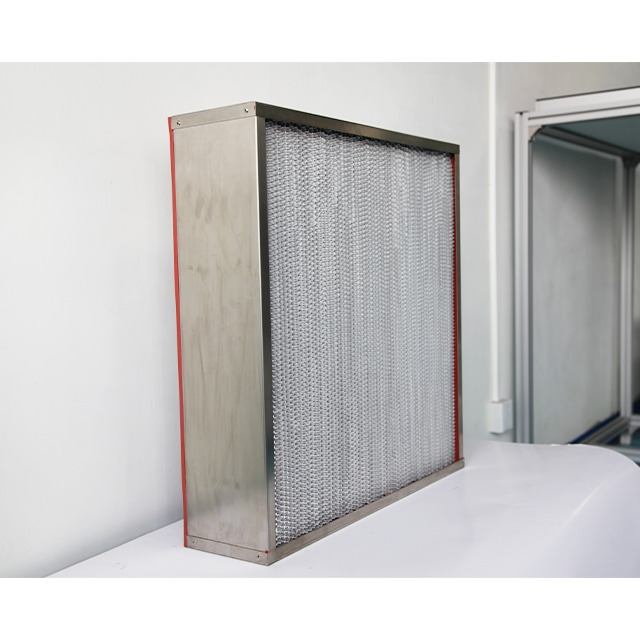

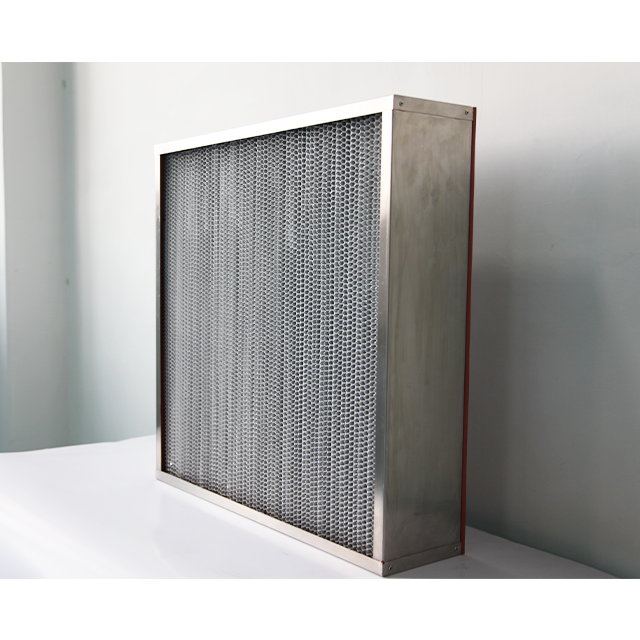

High Temperature Resistant Fine Efficiency Air Filter
※Product Features
1. Able to be long term used in high temperature condition;
2. Large filtration area,large airflow,low resistance;
※Application Field
1. Aerospace,electronics,semi-conductor,chip,biopharmaceutics,hospital,food processing and other high cleanness required condition;
2. End of air-conditioning ventilation system(end filtration and hot air type high temperature oven).
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Frame:
Where high temperature resistance as high as 250℃：
aluminum profile/ aluminum sheet/ zinc-coated steel sheet/ SS
Where high temperature resistance as high as 350℃：
zinc-coated steel sheet/ SS
Sealant:red silicon(250℃)/ ceramic adhesive(350℃)
Sealing strip:silicon strip(250℃)/ glass fiber strip(350℃)
Separator:aluminum foil(T=0.035mm)
Filtration Efficiency:99.97%~99.995%@0.3μm
Available thickness(mm) of aluminum profile frame:120,150,220
Max.temperature applicable: 250℃,350℃
Max.humidity applicable: 80%
※Size&Data
Size(H*W*D) (mm) | Rated airflow(m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
484*484*120 | 450 | 220 | 400~600 | 4.4 | 230 | H13~H14 |
610*610*120 | 700 | 220 | 400~600 | 7.1 | 370 | H13~H14 |
610*915*120 | 1050 | 220 | 400~600 | 10.6 | 560 | H13~H14 |
610*1220*120 | 1400 | 220 | 400~600 | 14.1 | 740 | H13~H14 |
484*484*150 | 600 | 220 | 400~600 | 6.0 | 320 | H13~H14 |
610*610*150 | 1000 | 220 | 400~600 | 9.7 | 510 | H13~H14 |
610*915*150 | 1500 | 220 | 400~600 | 14.5 | 770 | H13~H14 |
610*1220*150 | 2000 | 220 | 400~600 | 19.3 | 1020 | H13~H14 |
484*484*220 | 1000 | 220 | 400~600 | 9.8 | 600 | H13~H14 |
610*610*220 | 1600 | 220 | 400~600 | 15.8 | 920 | H13~H14 |
610*915*220 | 2300 | 220 | 400~600 | 23.7 | 1340 | H13~H14 |
610*1220*220 | 3000 | 220 | 400~600 | 31.6 | 1750 | H13~H14 |
Besides the size above, custom size acceptable.
