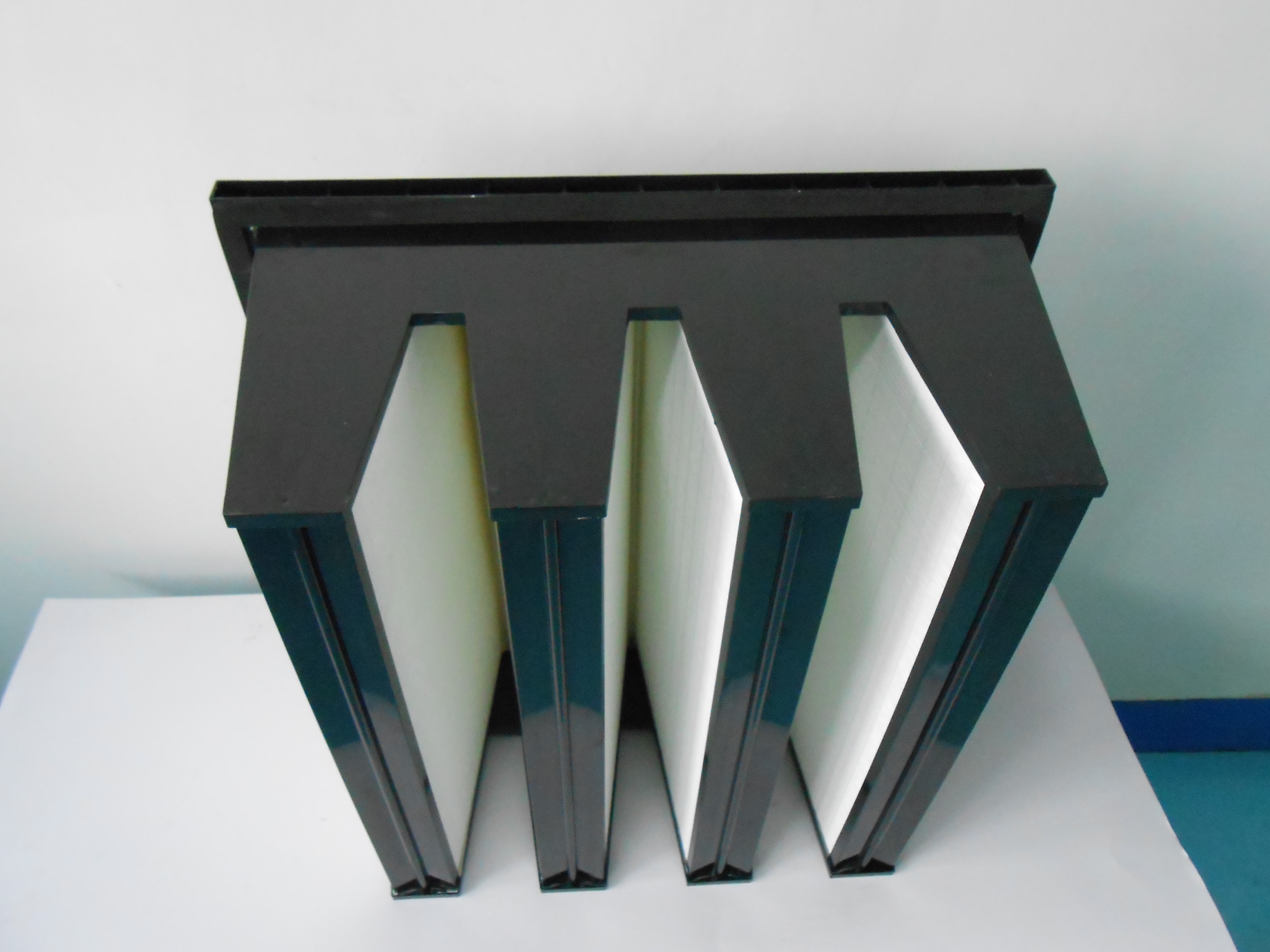

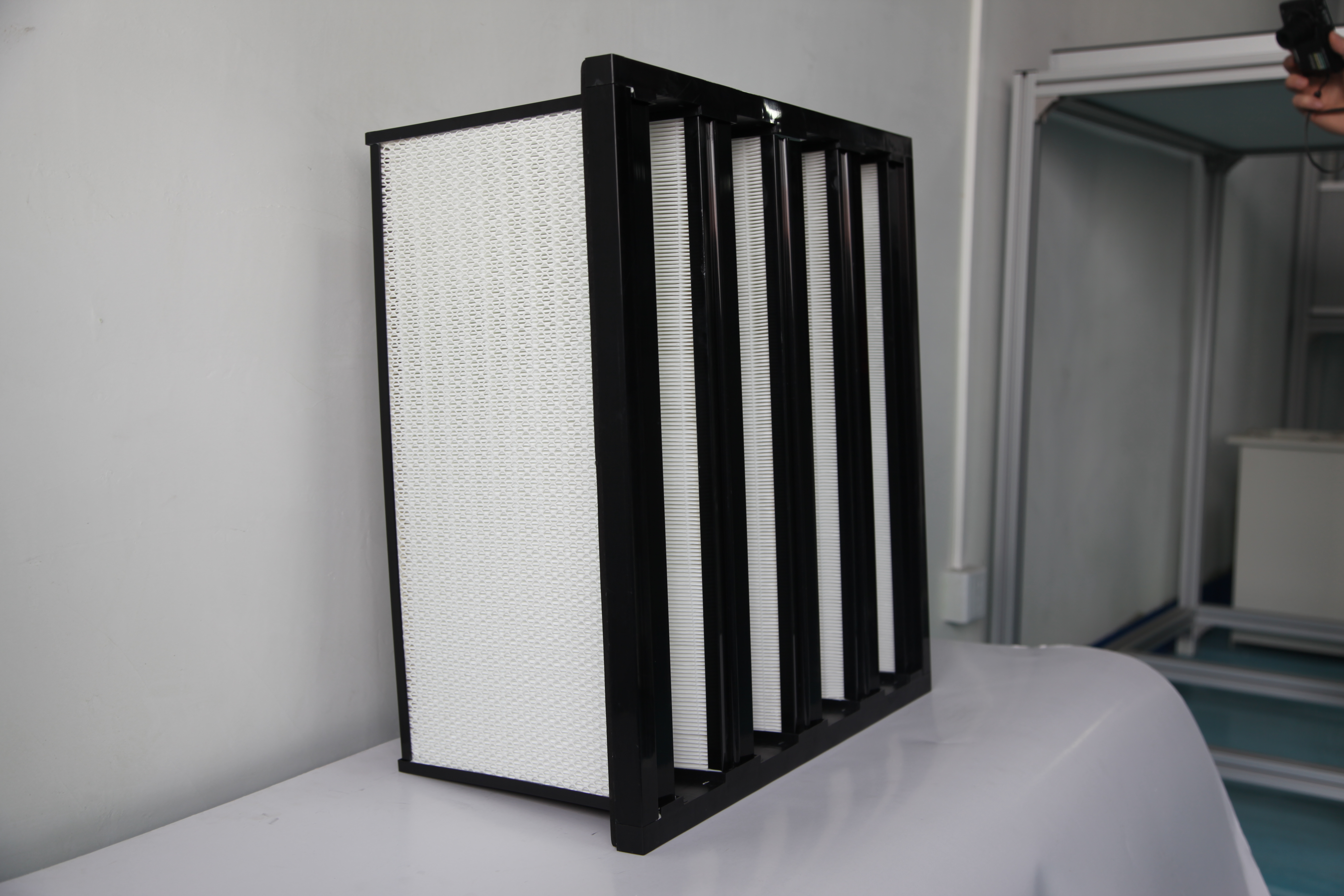

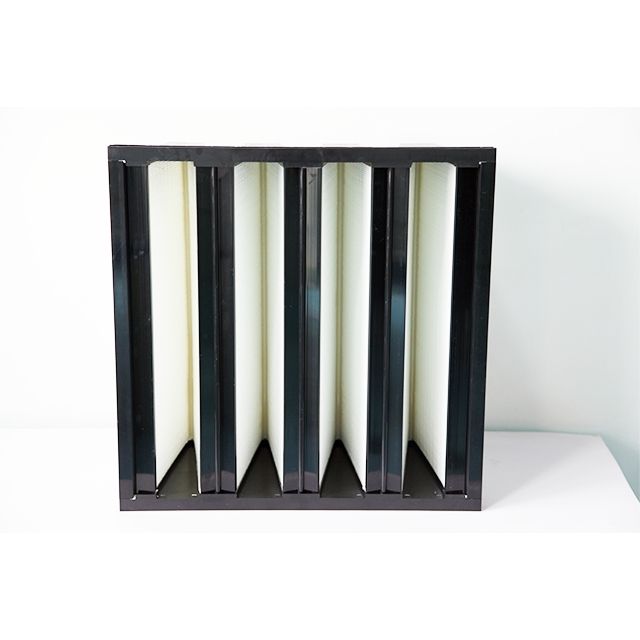

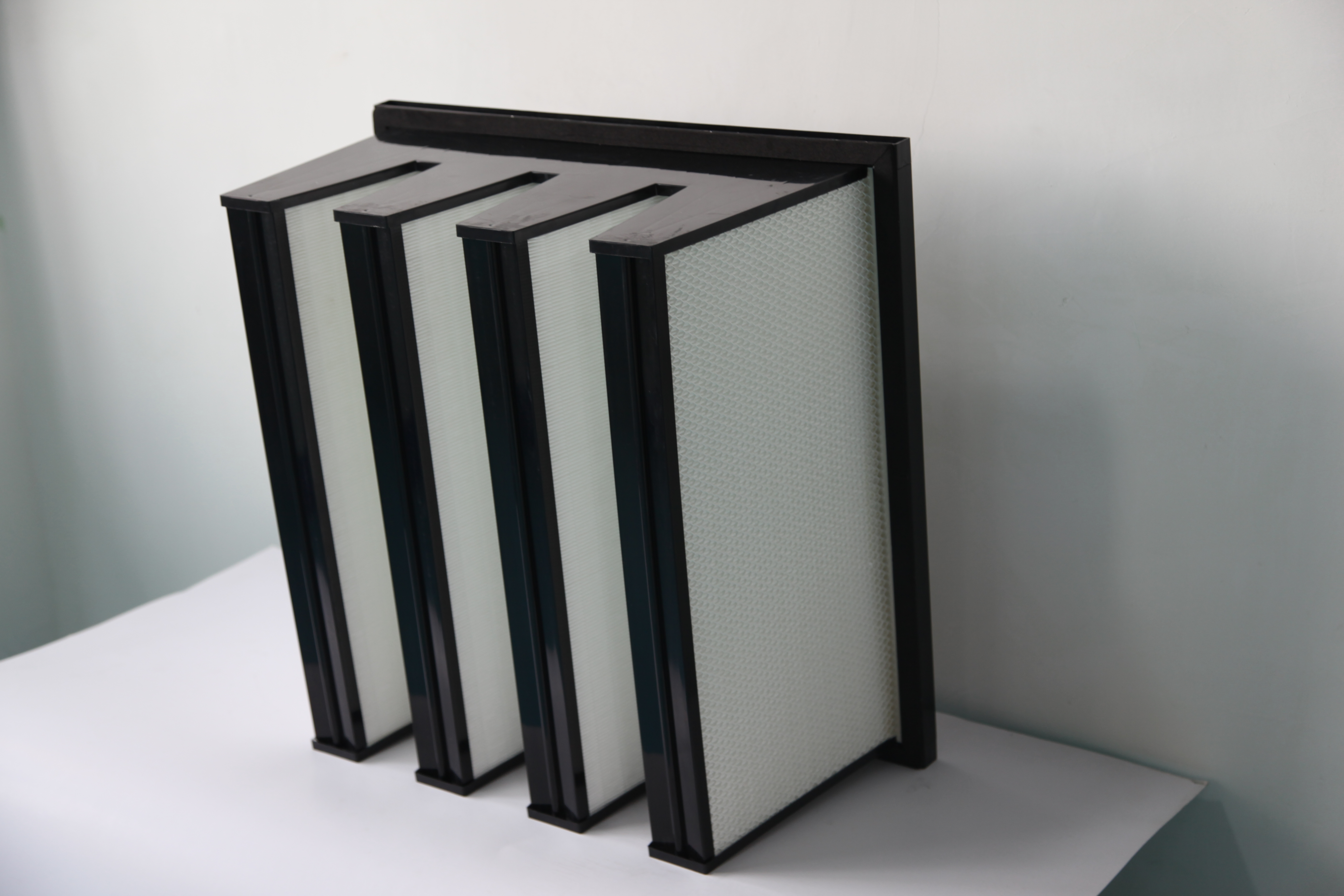

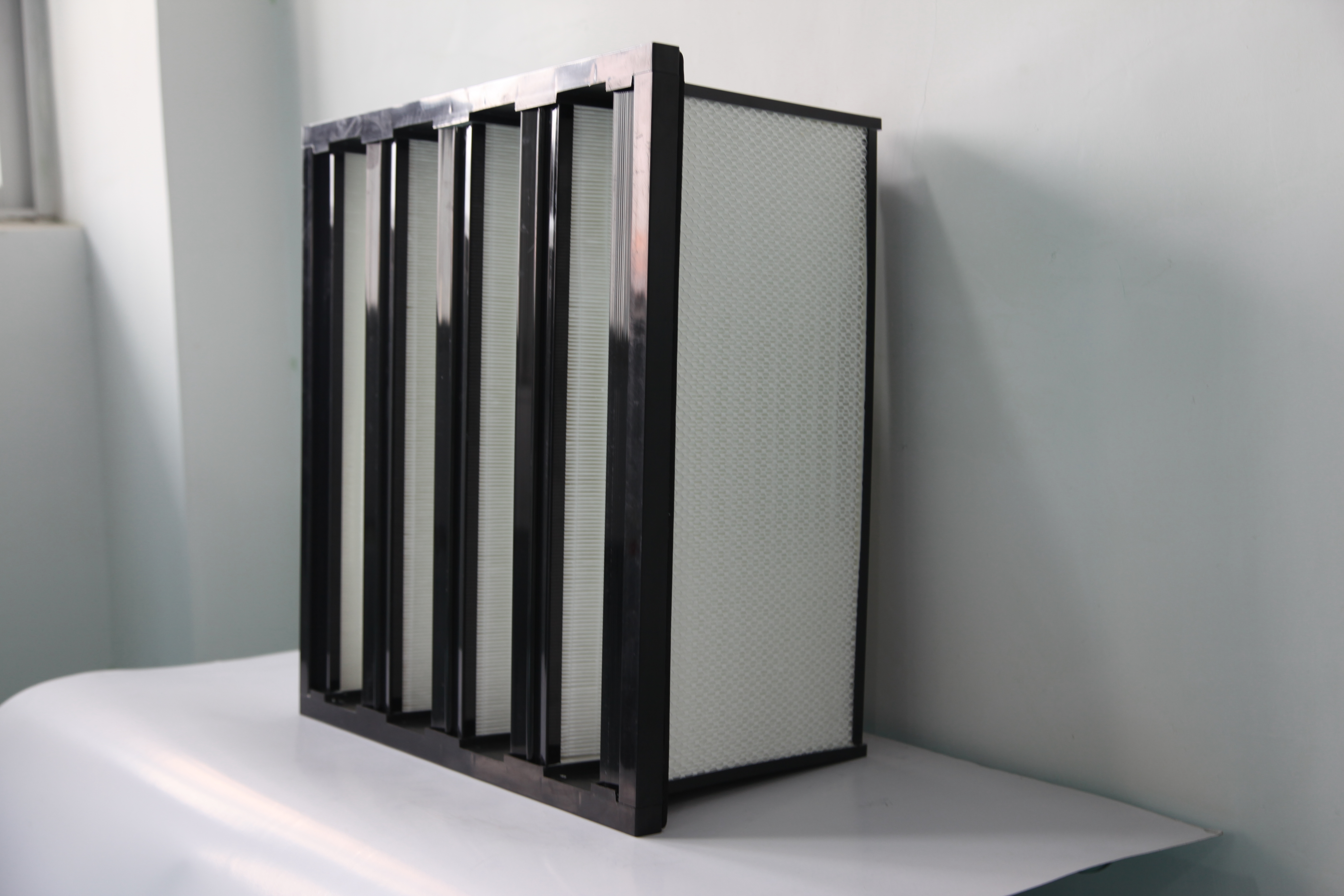

Combined Sub-fine Efficiency Air Filter
※Product Features
1. Large filtration area,large airflow,low resistance,long lifetime;
2. Environment friendly multi V shaped mini pleat air filter used for ventilation;
3. With installation flange,interchangeable with normal bag filter;
4. Water resistant ultra fine glass fiber filter paper,polystyrene frame suitable for incineration treatment.
※Application Field
1. Pre-filtration for fine efficiency filter;
2. Industrial purification AC in pharmaceutics,electronics,food,hospital,etc.
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Frame:zinc-coated steel sheet/ aluminum sheet/ Polystyrene plastic
Sealant:two-component polyurethane adhesive
Sealing strip:EVA/ Neoprene
Separator:polyolefin hot-melt adhesive
Filtration Efficiency:85%~99.9%@0.3μm
Available thickness(mm) of aluminum profile frame:120,150,220
Max.temperature applicable: 70℃
Max.humidity applicable: 100%
※Size&Data
Size (W*H*D) (mm) | No.of partition | Rated airflow(m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
592*592*292 | 3 | 2400 | 120 | 400~450 | 19.24 | 1154 | H10 |
592*592*292 | 4 | 2500 | 120 | 400~450 | 20.04 | 1202 | H10 |
592*592*292 | 3 | 2400 | 140 | 400~450 | 19.24 | 1154 | H11 |
592*592*292 | 4 | 2500 | 140 | 400~450 | 20.04 | 1202 | H11 |
592*287*292 | 4 | 1150 | 120 | 400~450 | 9.26 | 556 | H10 |
592*490*292 | 4 | 2100 | 120 | 400~450 | 16.44 | 986 | H10 |
592*287*292 | 4 | 1150 | 140 | 400~450 | 9.26 | 556 | H11 |
592*490*292 | 4 | 2100 | 140 | 400~450 | 16.44 | 986 | H11 |
Besides the size above, custom size acceptable.
