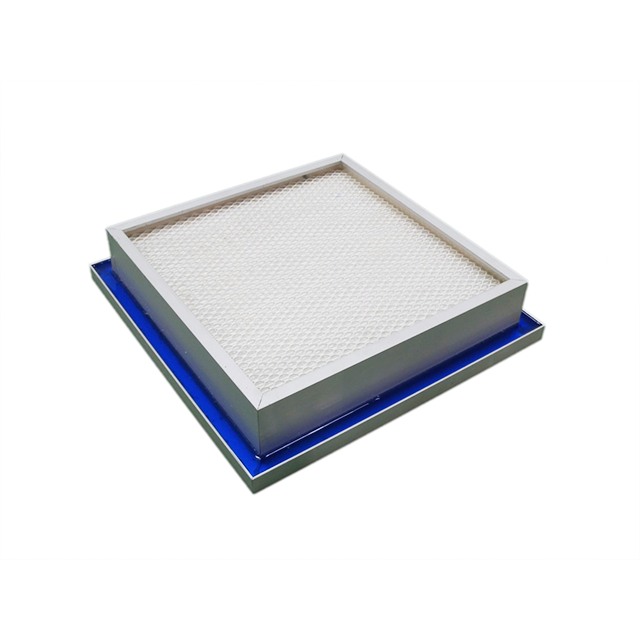

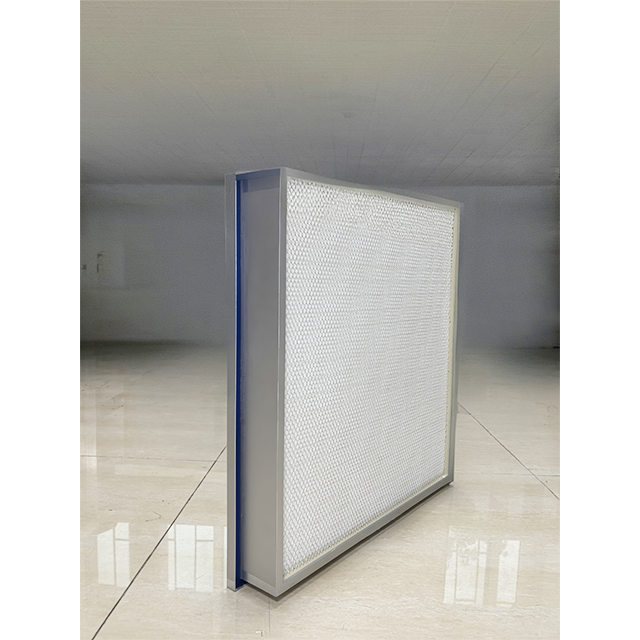

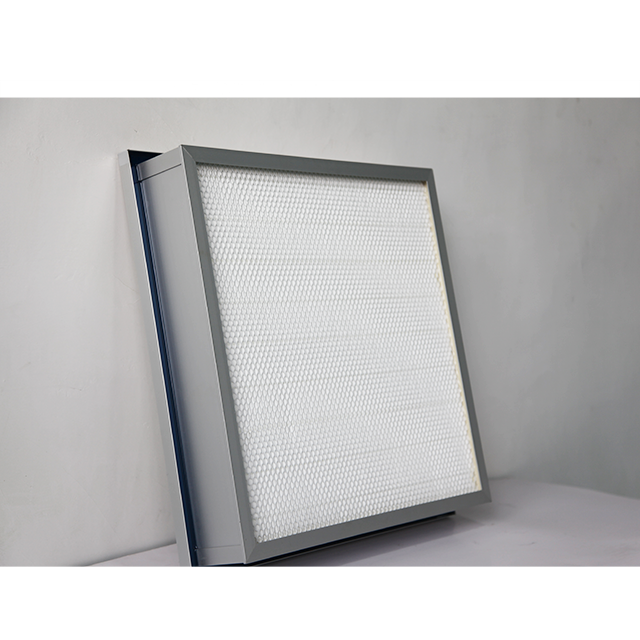

Liquid Tank Sealed Fine Efficiency Air Filter
※Product Features
1. Liquid tank sealed mini-pleat fine efficiency air filter,with attractive appearance,convenient installation,thin thickness,light weight,fine efficiency;
2. Large filtration area,long lifetime,and low resistance;
3. Environmental-friendly and sealability reliable jelly glue injected into the flange tank.Normally work with knife edge frame.
※Application Field
Widely used in vertical air supply of end of clean plant.
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Frame:aluminum profile(69#,90#,93#,96#)
Frame sealant:two-component polyurethane adhesive
Tank sealant: Jelly glue
Separator:polyolefin hot-melt adhesive
Protection cover:powder-coated diamond shape metal cover
Filtration Efficiency:≧99.999%@0.3μm
Available thickness(mm) of aluminum profile frame:88,110
Max.temperature applicable: 70℃
Max.humidity applicable: 100%
※Size&Data
Size(H*W*D) (mm) | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
510*510*69 | 600 | 200 | 400~600 | 6.6 | 400 | ≧H14 |
636*636*69 | 1000 | 200 | 400~600 | 10.7 | 650 | ≧H14 |
596*1196*69 | 1800 | 200 | 400~600 | 18.3 | 1100 | ≧H14 |
636*1236*69 | 2100 | 200 | 400~600 | 21.3 | 1000 | ≧H14 |
346*346*93 | 400 | 200 | 400~600 | 4.2 | 250 | ≧H14 |
510*510*93 | 900 | 200 | 400~600 | 9.42 | 565 | ≧H14 |
636*636*93 | 1500 | 200 | 400~600 | 14.9 | 900 | ≧H14 |
636*941*93 | 2000 | 200 | 400~600 | 22.3 | 1200 | ≧H14 |
626*1226*93 | 2800 | 200 | 400~600 | 29.8 | 1800 | ≧H14 |
621*621*93 | 1380 | 200 | 400~600 | 14.19 | 851 | ≧H14 |
636*1246*93 | 2800 | 200 | 400~600 | 29.8 | 1800 | ≧H14 |
596*1196*93 | 2550 | 200 | 400~600 | 26.28 | 1577 | ≧H14 |
656*994*93 | 2350 | 200 | 400~600 | 24.15 | 1449 | ≧H14 |
350*350*96 | 500 | 200 | 400~600 | 4.68 | 300 | ≧H14 |
514*514*96 | 1000 | 200 | 400~600 | 10.62 | 650 | ≧H14 |
640*640*96 | 1500 | 200 | 400~600 | 16.8 | 1000 | ≧H14 |
Besides the size above, custom size acceptable.
