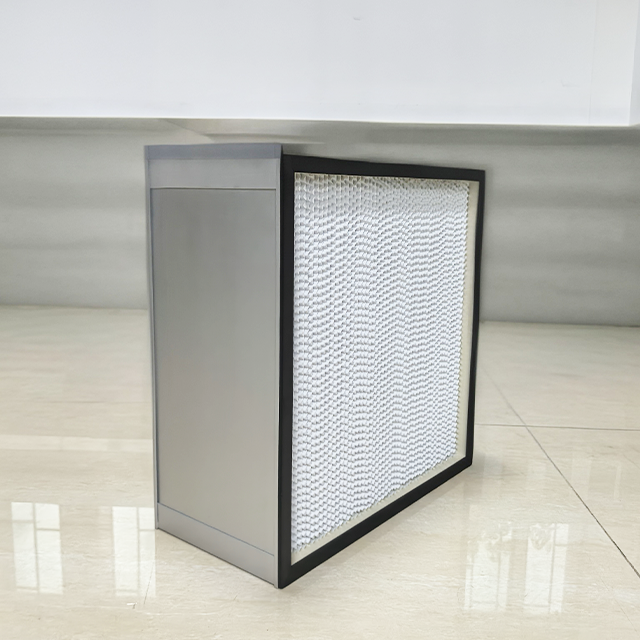

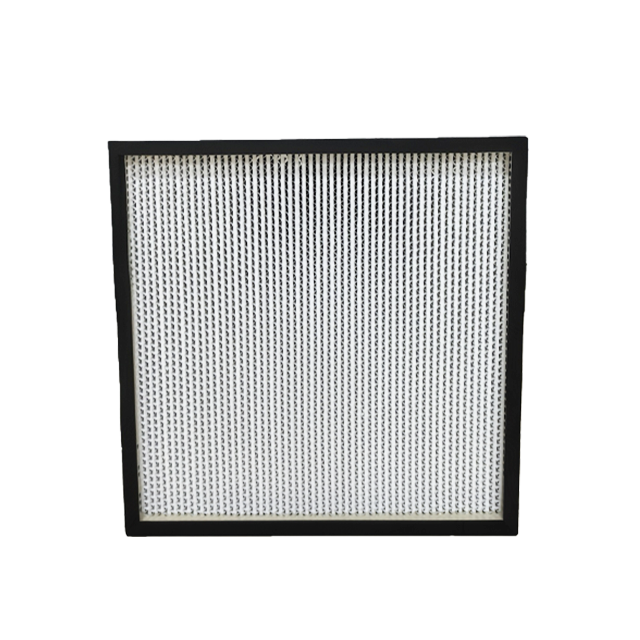

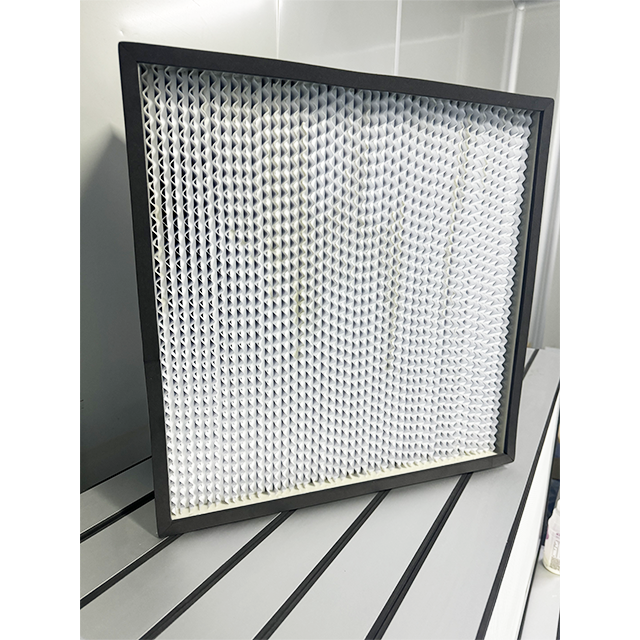

High Humidity Resistant Fine Efficiency Air Filter
※Product Features

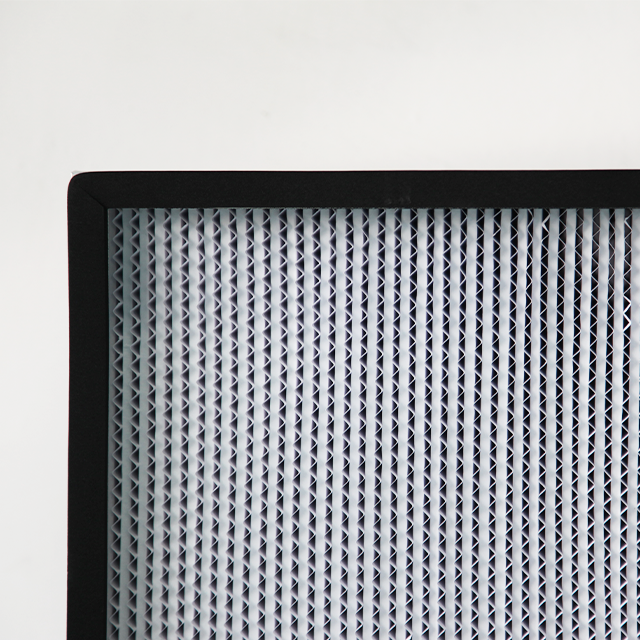

1. Corrugated separator to ensure smooth spacing between pleats,to realize reliable support and stability;
2. Both sides of the filter element 180° folded into wedge shape to avoid damage to the filter element;
3. Special seamless sealing technology to ensure good elasticity,no deformation,no peeling off,no leakage during installation and use.
※Application Field
Purification air-conditioning system,equipment end filtration for partial purification,using in high humidity condition.
※Material Composition and Running Condition
Filter element:water proof ultra fine glass fiber filter paper

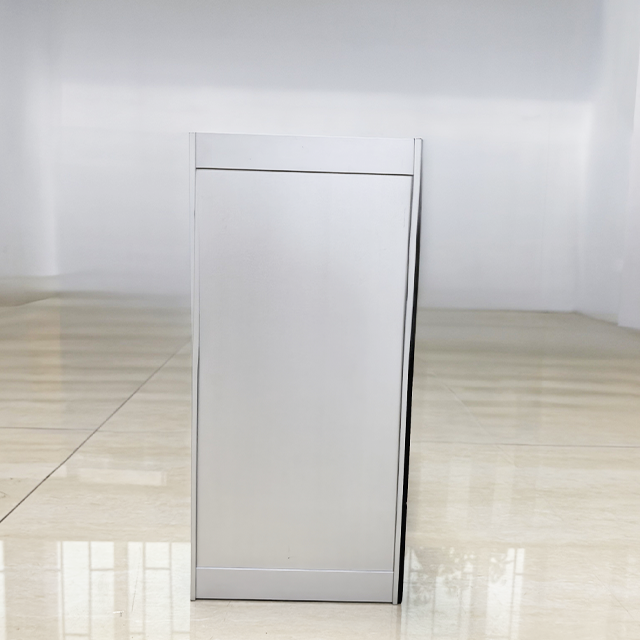

Frame:aluminum profile/ aluminum sheet/ zinc-coated steel sheet/ SS
Sealant:two-component polyurethane adhesive
Sealing strip:EVA/ Neoprene
Separator:aluminum foil(T=0.035mm)
Filtration Efficiency:99.99%~99.999%@0.3μm
Available thickness(mm) of aluminum profile frame:120,150,220
Max.temperature applicable: 80℃
Max.humidity applicable: 100%
※Size&Data
Size(H*W*D) (mm) | Rated airflow(m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
484*484*120 | 450 | 220 | 400~600 | 4.4 | 230 | H13~H14 |
610*610*120 | 700 | 220 | 400~600 | 7.1 | 370 | H13~H14 |
610*915*120 | 1050 | 220 | 400~600 | 10.6 | 560 | H13~H14 |
610*1220*120 | 1400 | 220 | 400~600 | 14.1 | 740 | H13~H14 |
484*484*150 | 600 | 220 | 400~600 | 6.0 | 320 | H13~H14 |
610*610*150 | 1000 | 220 | 400~600 | 9.7 | 510 | H13~H14 |
610*915*150 | 1500 | 220 | 400~600 | 14.5 | 770 | H13~H14 |
610*1220*150 | 2000 | 220 | 400~600 | 19.3 | 1020 | H13~H14 |
484*484*220 | 1000 | 220 | 400~600 | 9.8 | 600 | H13~H14 |
610*610*220 | 1600 | 220 | 400~600 | 15.8 | 920 | H13~H14 |
610*915*220 | 2300 | 220 | 400~600 | 23.7 | 1340 | H13~H14 |
610*1220*220 | 3000 | 220 | 400~600 | 31.6 | 1750 | H13~H14 |
Besides the size above, custom size acceptable.
