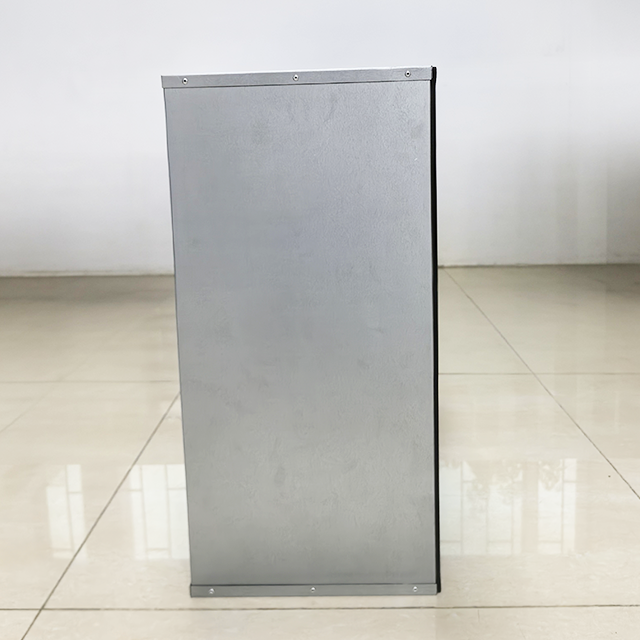

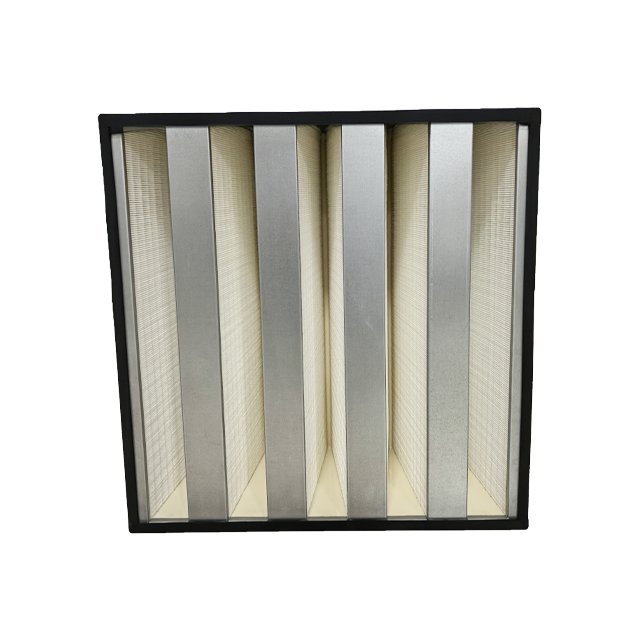

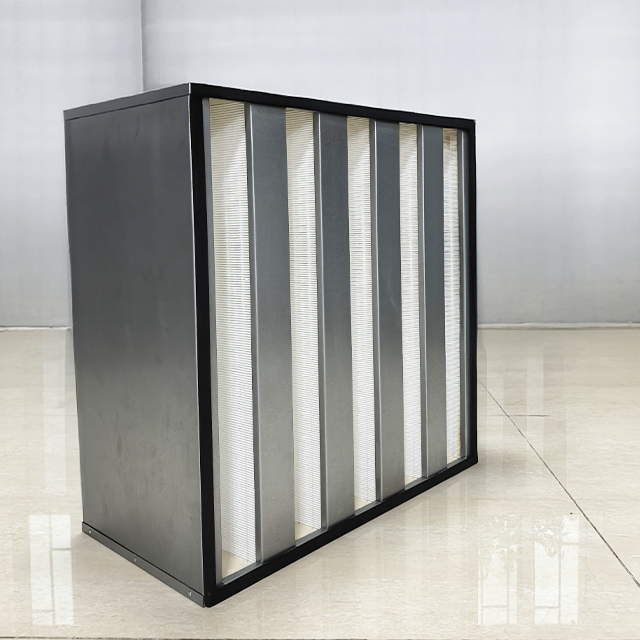

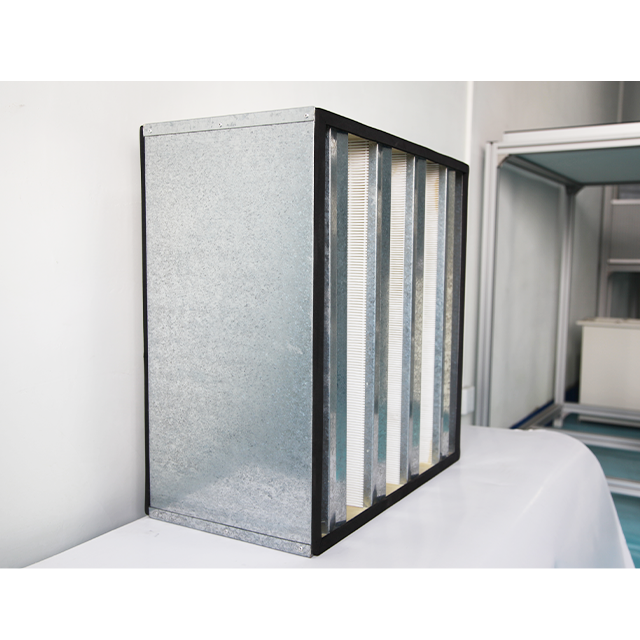

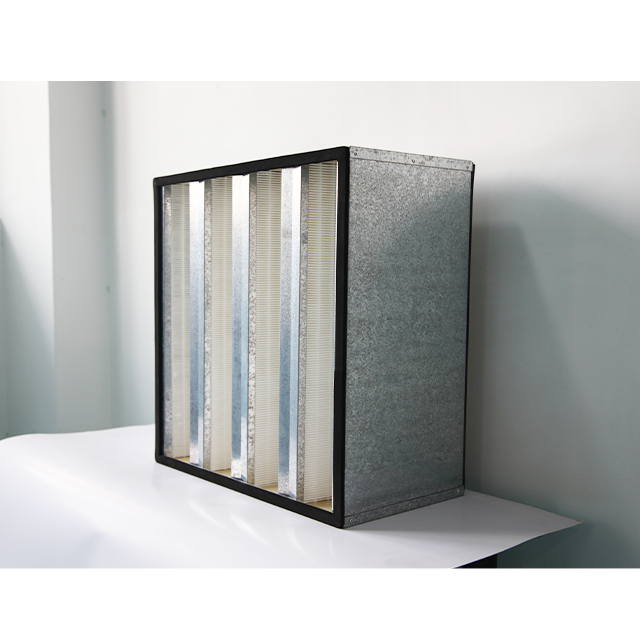

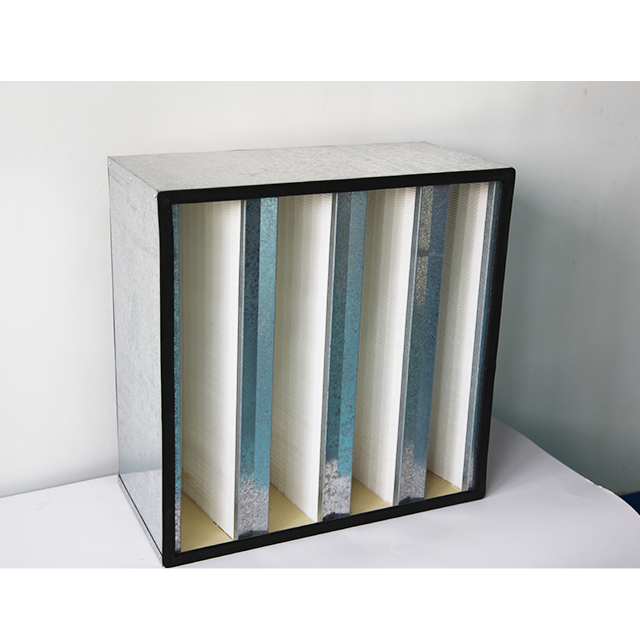

Combined Fine Efficiency Air Filter
※Product Features
1. Able to undertake large airflow,special V type frame able to reduce resistance to the Max.extent;
2. Compact structure,able to attach installation flange for convenient installation and maintenance;
3. Special seamless sealing technology to ensure good elasticity,no deformation,no peeling off,no leakage during installation and use.
※Application Field
Aerospace,electronics,semi-conductor,chip,biopharmaceutics,hospital,food processing and other high cleanness required condition;
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Frame:aluminum sheet/ zinc-coated steel sheet/ SS
Sealant:two-component polyurethane adhesive
Sealing strip:EVA/ Neoprene
Separator:polyolefin hot-melt adhesive
Filtration Efficiency:99.99%~99.995%@0.3μm
Available thickness(mm) of aluminum profile frame:120,150,220
Max.temperature applicable: 70℃
Max.humidity applicable: 100%
※Size&Data
Size (W*H*D) (mm) | No.of partition | Rated airflow(m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
285*285*292 | 2 | 700 | 220 | 400~600 | 5.42 | 325 | H13~H14 |
592*592*292 | 3 | 2100 | 220 | 400~600 | 16.43 | 986 | H13~H14 |
592*592*292 | 4 | 2800 | 220 | 400~600 | 21.91 | 1315 | H13~H14 |
610*610*292 | 5 | 3600 | 220 | 400~600 | 28.2 | 1692 | H13~H14 |
610*915*292 | 6 | 4300 | 220 | 400~600 | 33.84 | 2031 | H13~H14 |
484*484*292 | 3 | 1700 | 220 | 400~600 | 13.51 | 811 | H13~H14 |
610*305*292 | 5 | 1800 | 220 | 400~600 | 14.44 | 866 | H13~H14 |
305*610*292 | 3 | 2150 | 220 | 400~600 | 16.92 | 1015 | H13~H14 |
630*630*292 | 5 | 3700 | 220 | 400~600 | 29.11 | 1746 | H13~H14 |
600*600*292 | 5 | 3500 | 220 | 400~600 | 27.75 | 1665 | H13~H14 |
570*570*292 | 4 | 2700 | 220 | 400~600 | 21.12 | 1267 | H13~H14 |
320*320*292 | 3 | 1150 | 220 | 400~600 | 9.07 | 544 | H13~H14 |
515*515*292 | 4 | 2400 | 220 | 400~600 | 19.13 | 1148 | H13~H14 |
610*484*292 | 5 | 2850 | 220 | 400~600 | 22.52 | 1351 | H13~H14 |
490*592*292 | 4 | 2800 | 220 | 400~600 | 21.91 | 1315 | H13~H14 |
592*490*292 | 4 | 2300 | 220 | 400~600 | 18.23 | 1094 | H13~H14 |
Besides the size above, custom size acceptable.
