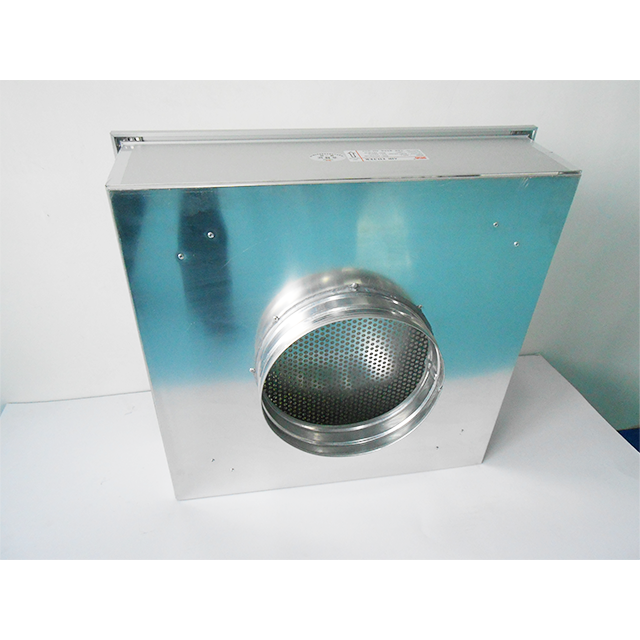

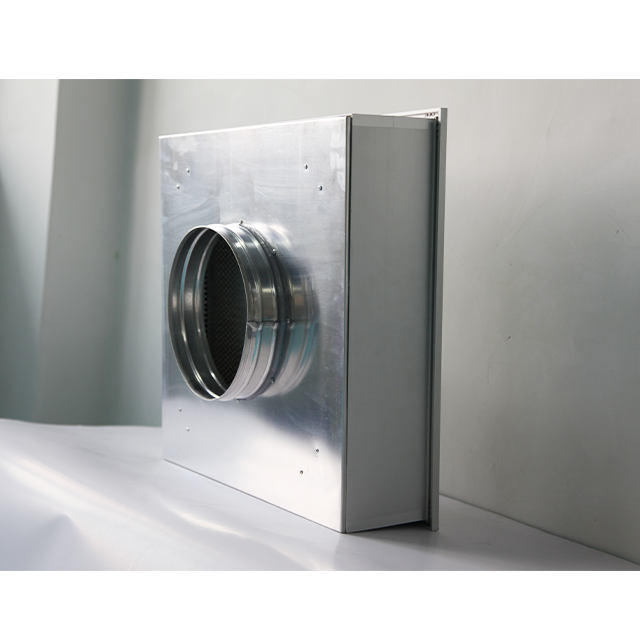

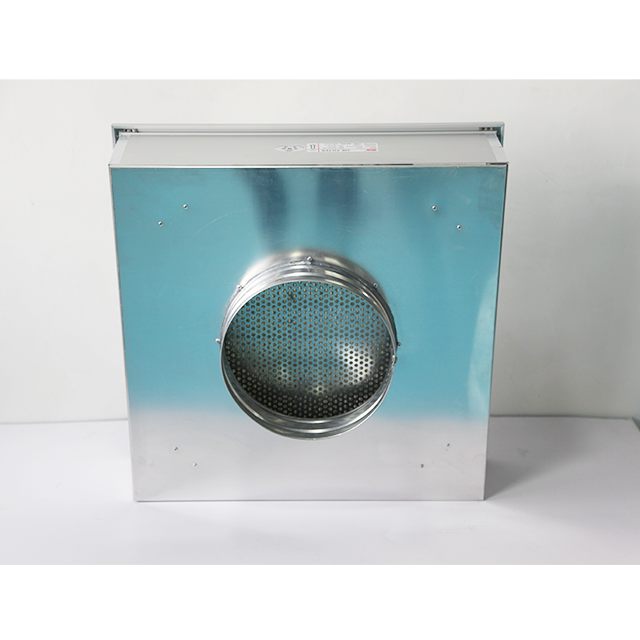

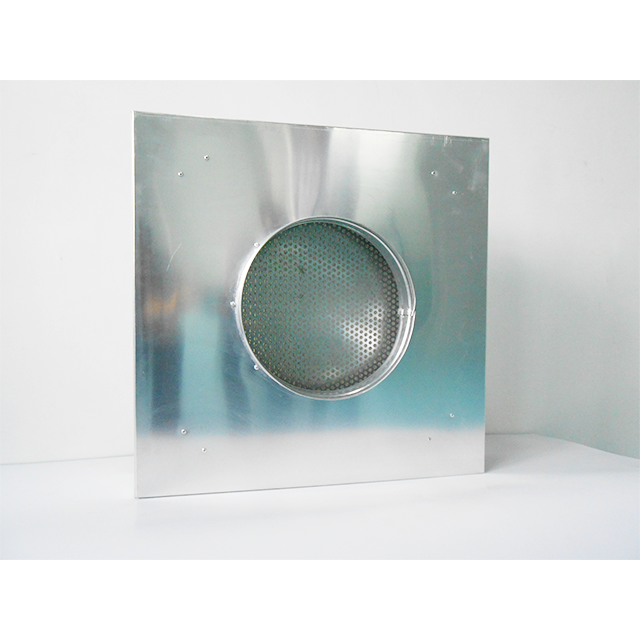

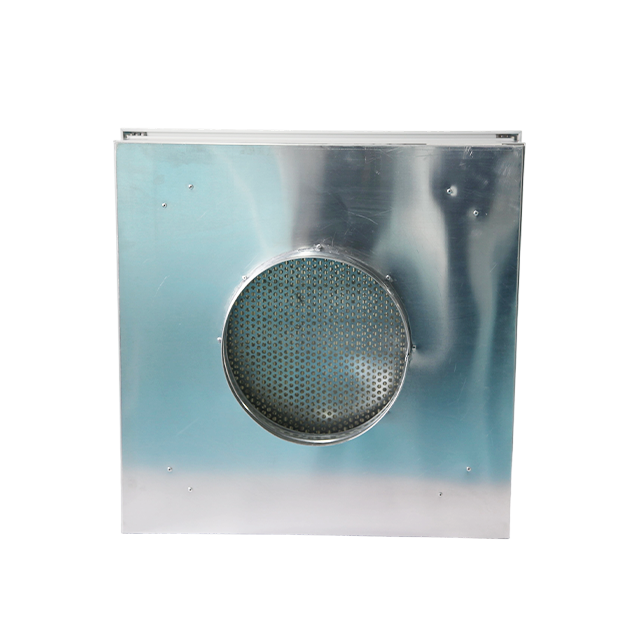

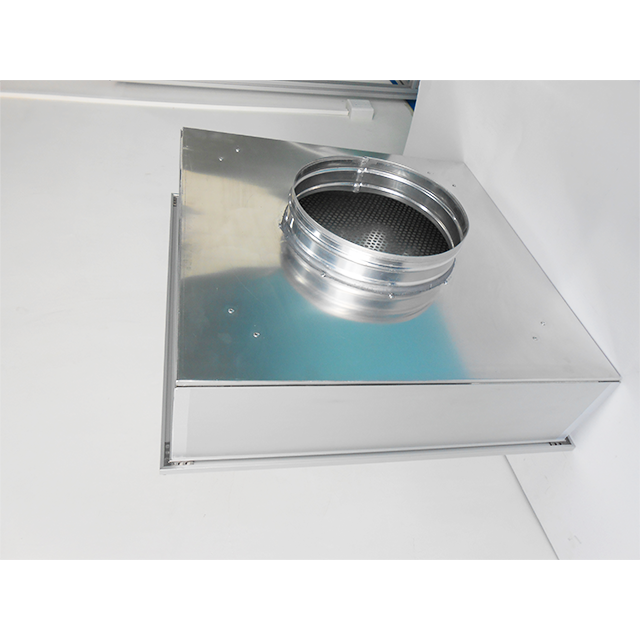

Disposable Integrated Air Filter
※Product Features
1. Integrated design,with optional thermal insulation cotton or lifting rings,optimal ventilation;
2. Attractive appearance,convenient installation,good sealability,light weight,thin thickness,fine efficiency;
3. Special seamless sealing technology to ensure good elasticity,no deformation,no peeling off,no leakage during installation and use.
※Application Field
Widely used in operating rooms,laboratories,pharmaceutical rooms,microelectronics facilities,film and optical fiber equipment manufacturing and food processing plant, which has a higher requirement about cleanness.
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Main box frame:aluminum profile/ zinc-coated frame
Back cover of box:aluminum sheet/ zinc-coated steel sheet
Sealant:two-component polyurethane adhesive
Sealing strip:EVA/ Neoprene
Separator:polyolefin hot-melt adhesive
Filtration Efficiency:99.99%~99.999%@0.3μm
Available thickness(mm) of aluminum profile frame:120,150,220
Max.temperature applicable: 70℃
Max.humidity applicable: 100%
※Size&Data
Size(H*W*D) (mm) | Rated airflow(m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
610*610*120 | 1000 | 220 | 400~600 | 11.32 | 680 | H13~H14 |
610*915*120 | 1500 | 220 | 400~600 | 16.71 | 1002 | H13~H14 |
600*1200*120 | 1950 | 220 | 400~600 | 21.38 | 1283 | H13~H14 |
610*1220*120 | 2000 | 220 | 400~600 | 22.10 | 1326 | H13~H14 |
610*610*150 | 1270 | 220 | 400~600 | 14.14 | 850 | H13~H14 |
610*915*150 | 1900 | 220 | 400~600 | 20.88 | 1253 | H13~H14 |
600*1200*150 | 2400 | 220 | 400~600 | 26.73 | 1604 | H13~H14 |
610*1220*150 | 2500 | 220 | 400~600 | 27.65 | 1660 | H13~H14 |
610*610*220 | 1550 | 220 | 400~600 | 17.41 | 1044 | H13~H14 |
610*915*220 | 2300 | 220 | 400~600 | 25.70 | 1542 | H13~H14 |
600*1200*220 | 2950 | 220 | 400~600 | 32.89 | 1974 | H13~H14 |
610*1220*220 | 3000 | 220 | 400~600 | 34.00 | 2040 | H13~H14 |
Besides the size above, custom size acceptable.
