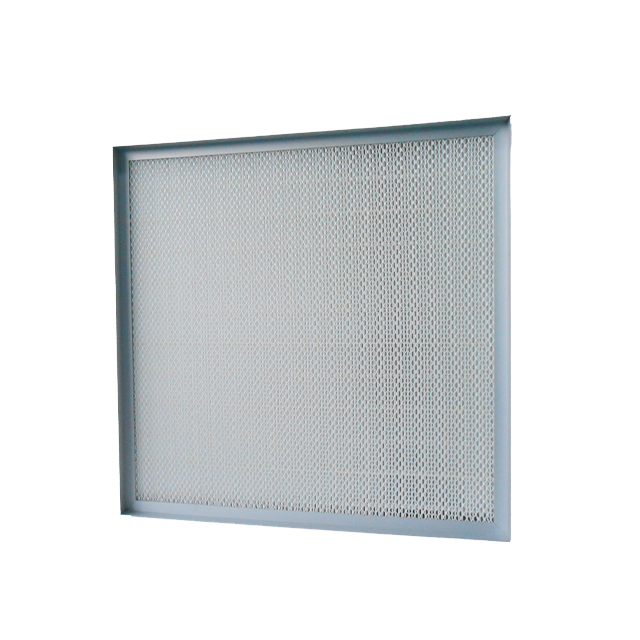

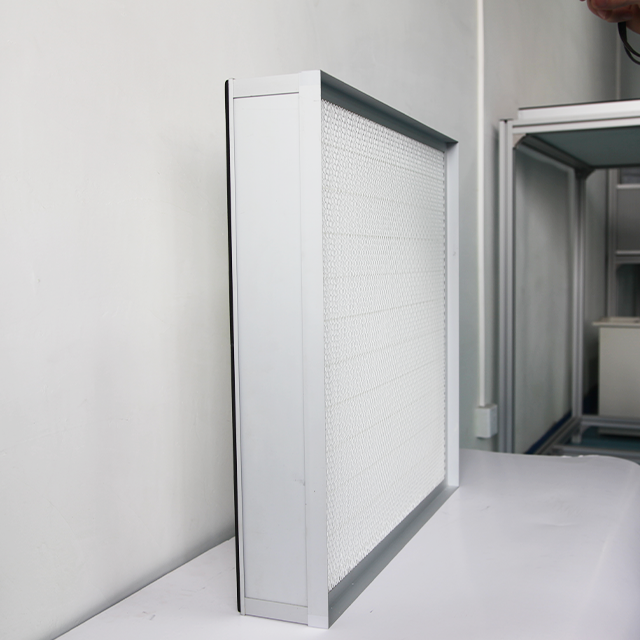

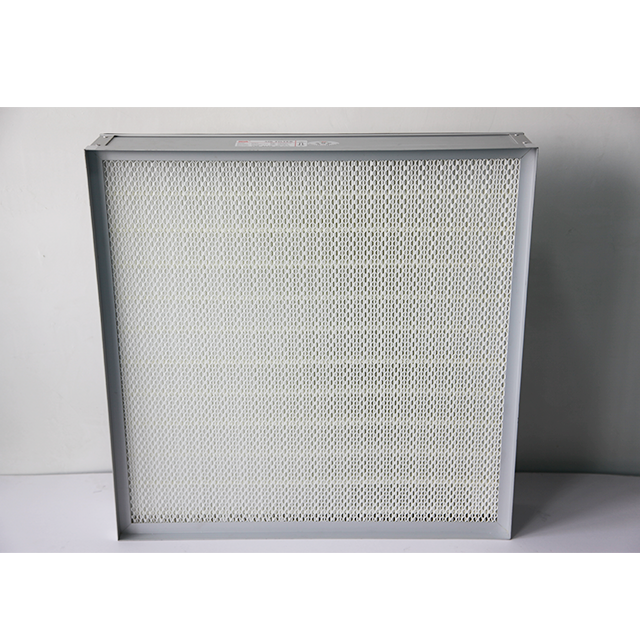

Knife Edge Fine Efficiency Air Filter
※Product Features
1. Air extraction side with knife edge(H=20mm);
2. Glass fiber filter element,hot-melt adhesive separator;
3. Equal spacing between pleats to ensure optimal airflow and large dust capacity;
4. Special sealant to ensure sealability;
5. Powder-coated metal cover on both air inlet side and air extraction side to ensure no damage to filter element.
※Application Field
Pharmaceutical plant,biological plant,food processing plant,which need to strictly control air pollution source.
※Material Composition and Running Condition
Filter element:ultra fine glass fiber filter paper
Frame:aluminum profile
Frame sealant:two-component polyurethane adhesive
Separator:polyolefin hot-melt adhesive
Protection cover:powder-coated diamond shape metal cover
Filtration Efficiency:99.99%~99.999%@0.3μm
Available thickness(mm) of aluminum profile frame:88,110
Max.temperature applicable: 70℃
Max.humidity applicable: 100%
※Size&Data
Size(H*W*D) (mm) | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
320*320*110 | 400 | 200 | 400~600 | 4.16 | 250 | H13~H14 |
484*484*110 | 920 | 200 | 400~600 | 9.42 | 565 | H13~H14 |
610*610*110 | 1450 | 200 | 400~600 | 14.9 | 894 | H13~H14 |
610*915*110 | 2150 | 200 | 400~600 | 22.12 | 1327 | H13~H14 |
610*1220*110 | 2850 | 200 | 400~600 | 29.33 | 1760 | H13~H14 |
570*570*110 | 1300 | 200 | 400~600 | 13.03 | 782 | H13~H14 |
570*870*110 | 1900 | 200 | 400~600 | 19.65 | 1180 | H13~H14 |
570*1170*110 | 2550 | 200 | 400~600 | 26.28 | 1580 | H13~H14 |
610*762*110 | 1800 | 200 | 400~600 | 18.5 | 1110 | H13~H14 |
305*762*110 | 880 | 200 | 400~600 | 9.1 | 546 | H13~H14 |
762*762*110 | 2250 | 200 | 400~600 | 23.19 | 1391 | H13~H14 |
484*968*110 | 1795 | 200 | 400~600 | 18.46 | 1108 | H13~H14 |
630*630*110 | 1540 | 200 | 400~600 | 15.89 | 953 | H13~H14 |
630*915*110 | 2222 | 200 | 400~600 | 22.86 | 1371 | H13~H14 |
600*600*110 | 1402 | 200 | 400~600 | 14.42 | 865 | H13~H14 |
600*1200*110 | 2759 | 200 | 400~600 | 28.38 | 1703 | H13~H14 |
305*305*110 | 367 | 200 | 400~600 | 3.78 | 227 | H13~H14 |
305*610*110 | 712 | 200 | 400~600 | 7.33 | 440 | H13~H14 |
305*915*110 | 1057 | 200 | 400~600 | 10.88 | 653 | H13~H14 |
Besides the size above, custom size acceptable.
