3.8 High Temperature Resistant Coarse Efficiency Air Filter

Availability:



Inquire Add to Basket PDF Export

Product Description

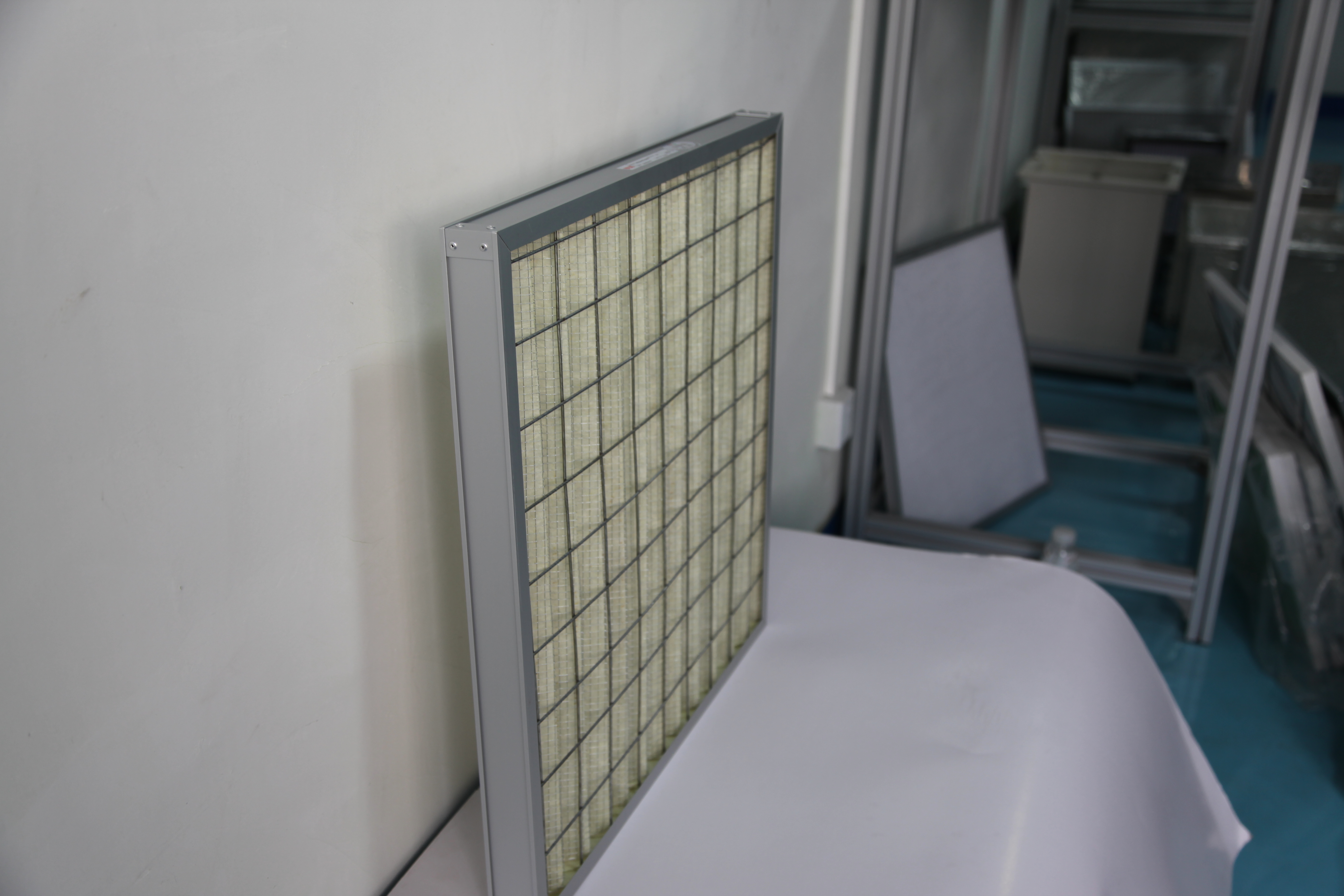

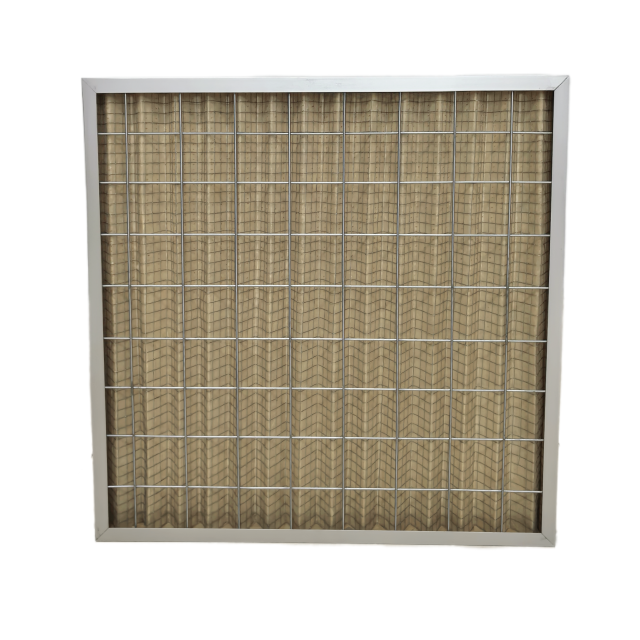

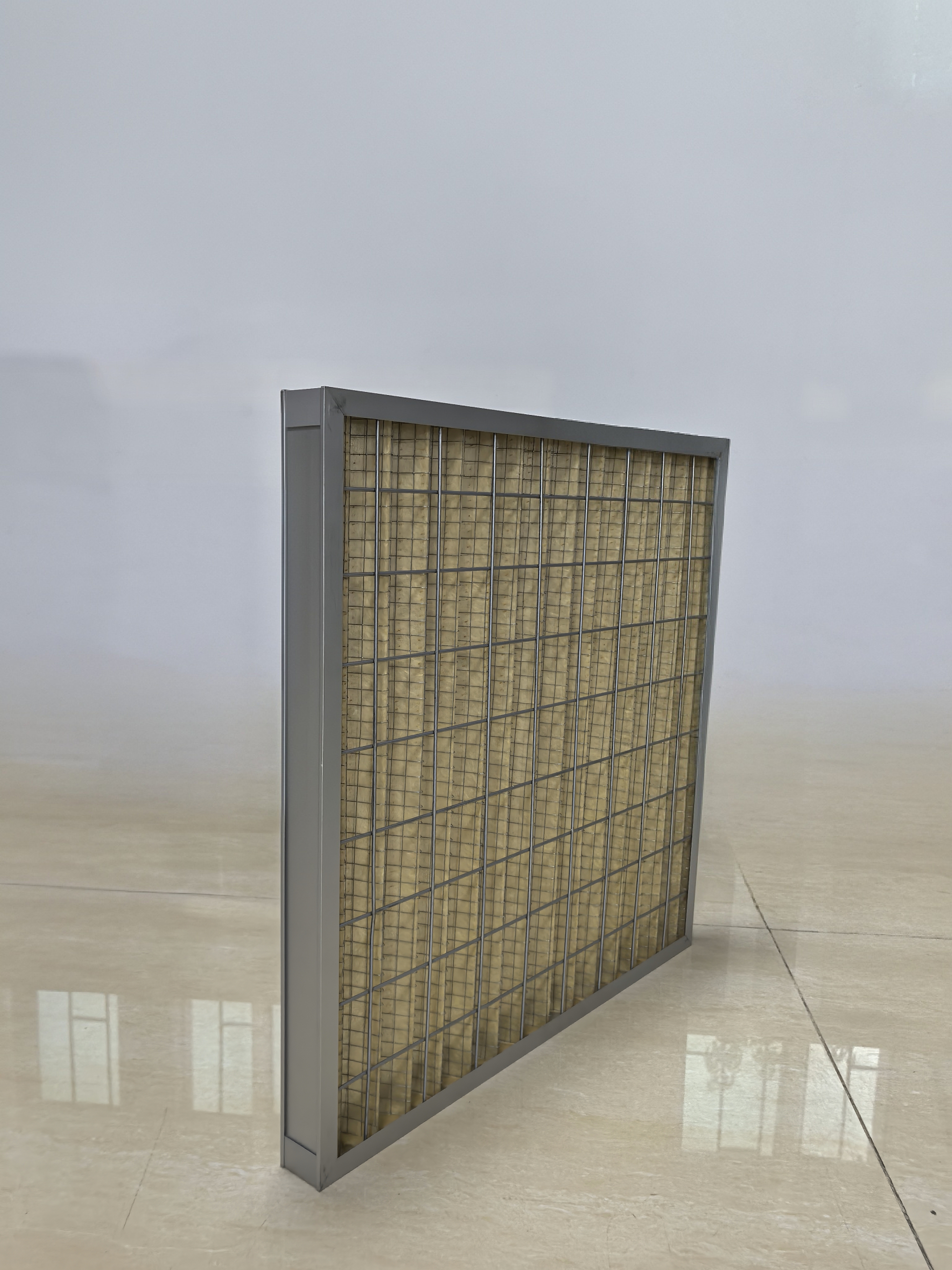

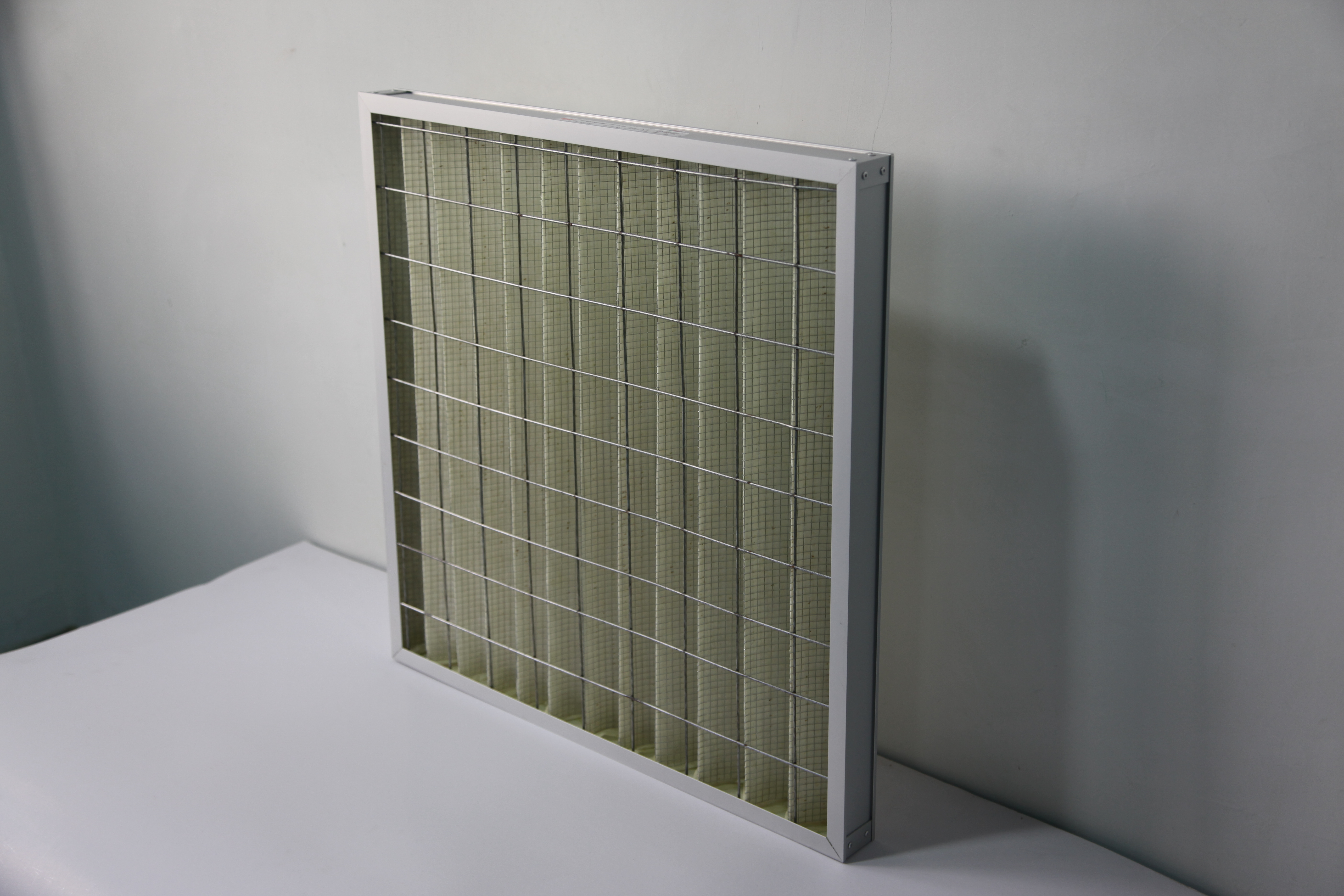

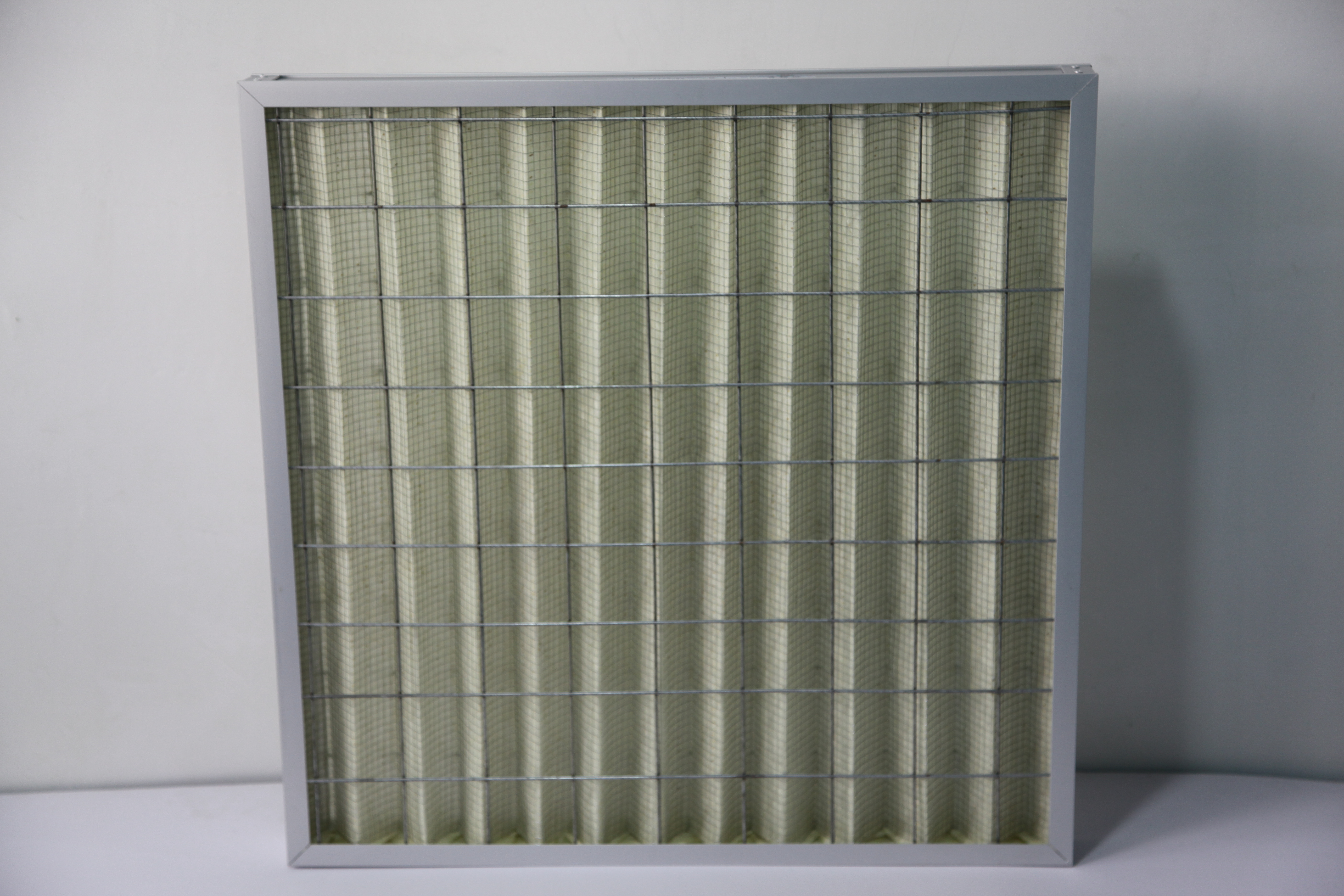

High Temperature Resistant Coarse Efficiency Air Filter

※Product Features

1. Filter element made by folding double-sided galvanized iron wire mesh or stainless-steel mesh. Good strength,not easy been blown apart;

2. Reinforced with double-sided galvanized square grid mesh, galvanized diamond mesh, galvanized iron wire, and stainless-steel wire, enabling smooth running in high airflow condition;

3. Filter element with large filtration area, long service life, high airflow, low initial resistance, and incombustible.

※Application Field

General primary-efficiency filtration, air filtration in hot-air type furnaces, and air filtration in high-temperature furnaces of coating plants.

※Material Composition and Running Condition

Filter element:domestic short glass fiber (temperature-resistant 250~300°C)

Frame:aluminum profile/ zinc-coated steel sheet/ SS

Filtration Efficiency:85%@2.0μm

Available thickness(mm) of aluminum profile frame:17,21,25,46,50,69,80,90,96

Max.temperature applicable: 300℃

※Size&Data

Size (WHD) (mm)	Rated airflow (m³/h)	Initial resistance (≦pa)	Final resistance (pa)	Filtration area (㎡)	Dust capacity (g)	Efficiency
59259221	2400	40	100~200	0.90	150	G3
28759221	1200	40	100~200	0.44	70	G3
49059221	2050	40	100~200	0.76	120	G3
59259246	2600	40	100~200	0.97	160	G3
28759246	1400	40	100~200	0.51	80	G3
49059246	2150	40	100~200	0.89	130	G3
59559550	3000	40	100~200	1.12	180	G3
61061050	3100	40	100~200	1.15	184	G3
99040050	3300	40	100~200	1.22	195	G3
96848450	3800	40	100~200	1.42	228	G3
32032046	800	40	100~200	0.31	50	G3
30530546	700	40	100~200	0.27	43	G3
60060046	2800	40	100~200	1.05	167	G3
48448446	1800	40	100~200	0.66	105	G3
28018021	400	40	100~200	0.14	23	G3
28018021	800	40	100~200	0.28	45	G3
48448421	1700	40	100~200	0.68	101	G3
