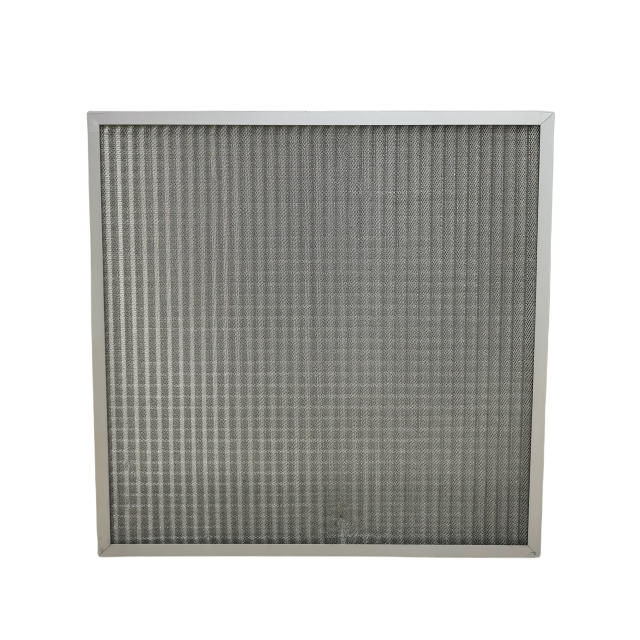

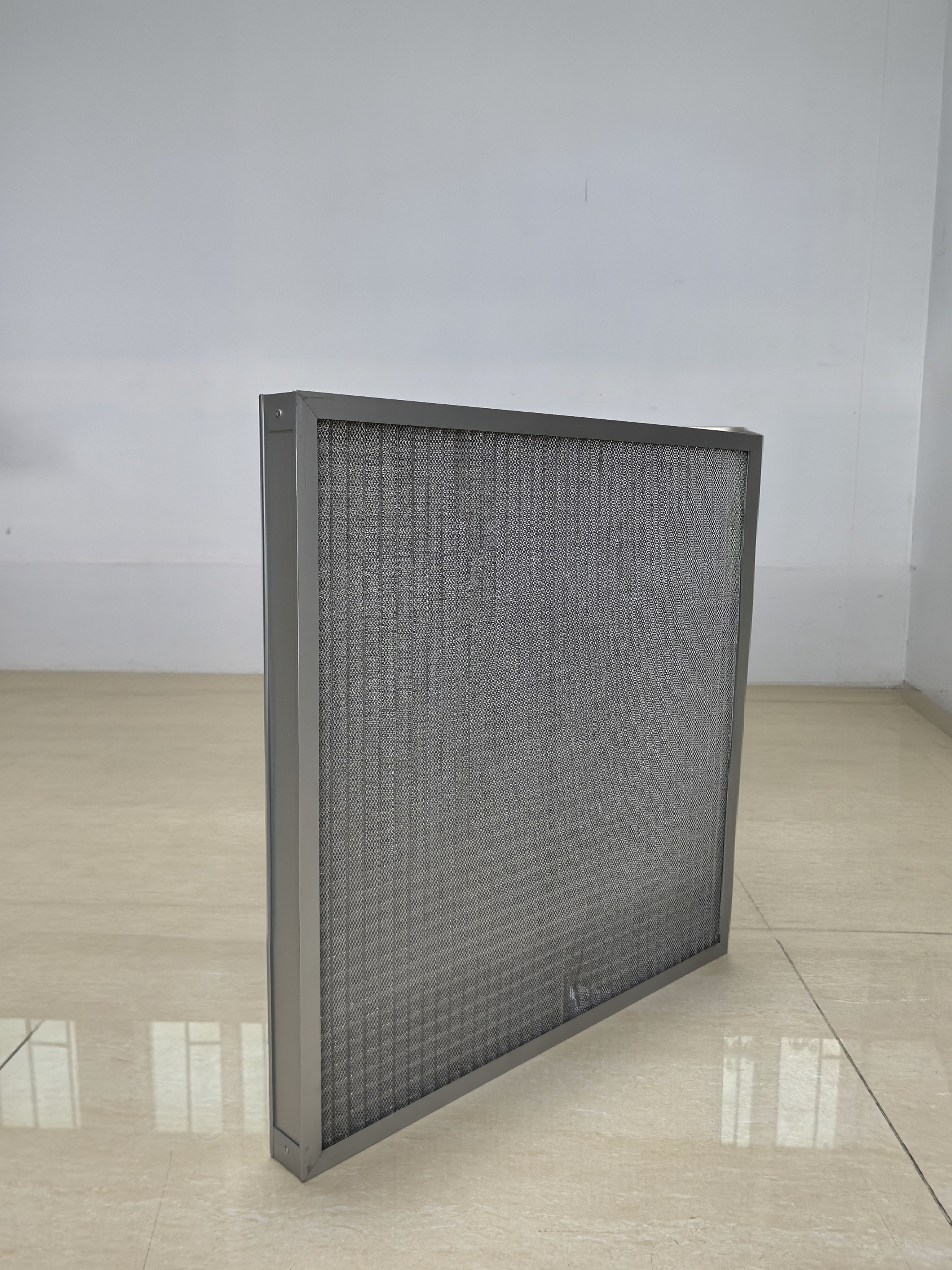

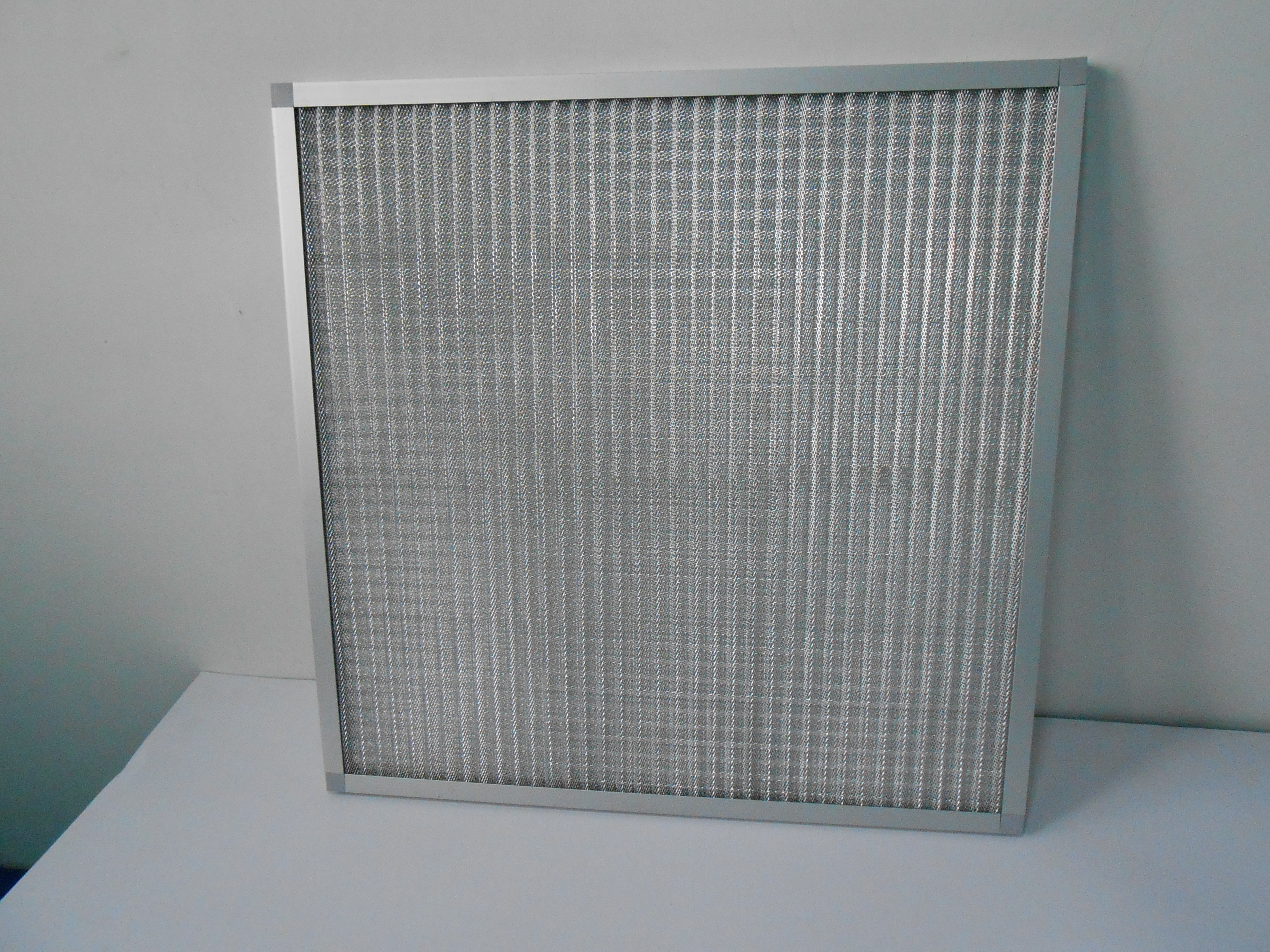

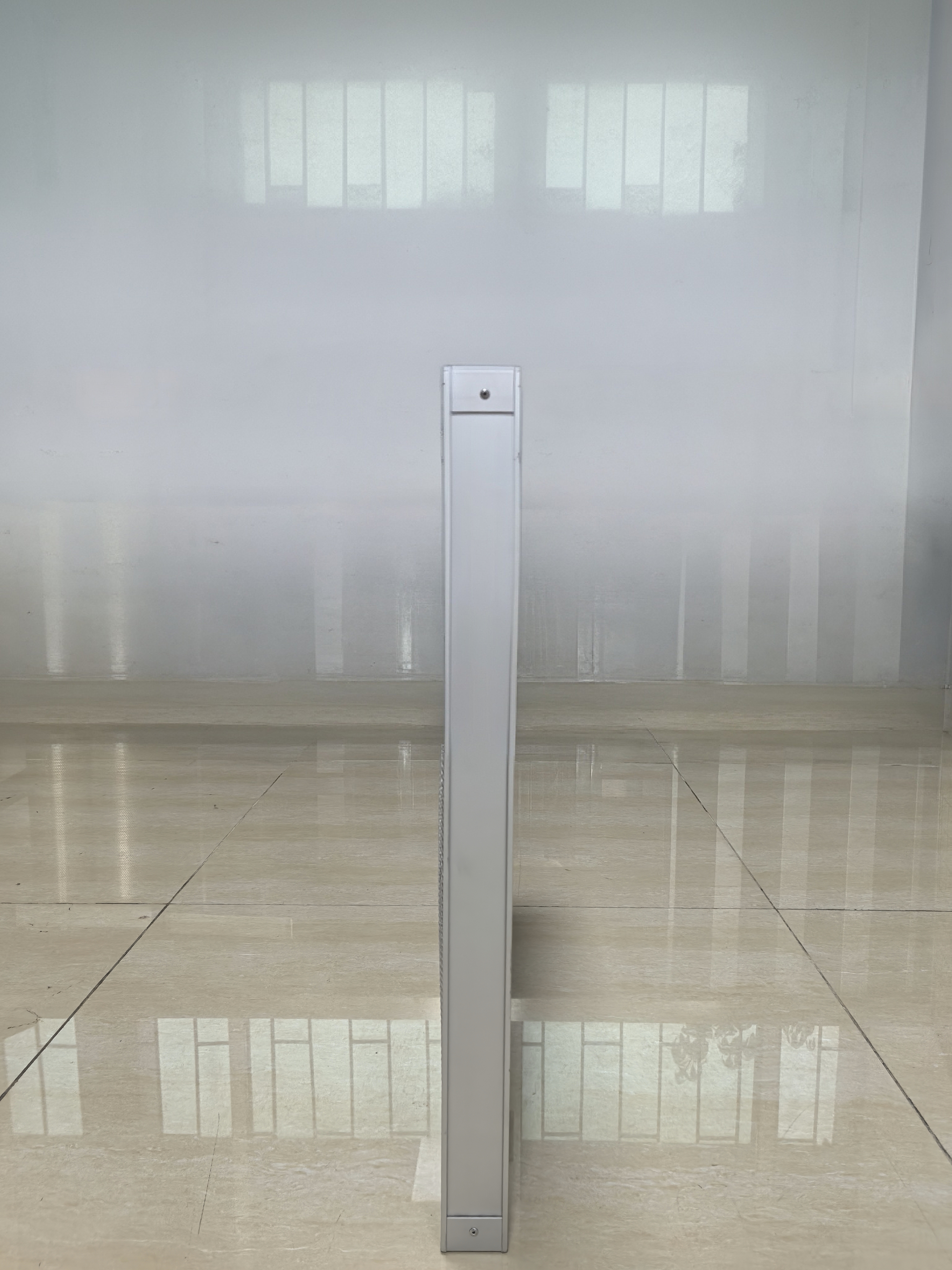

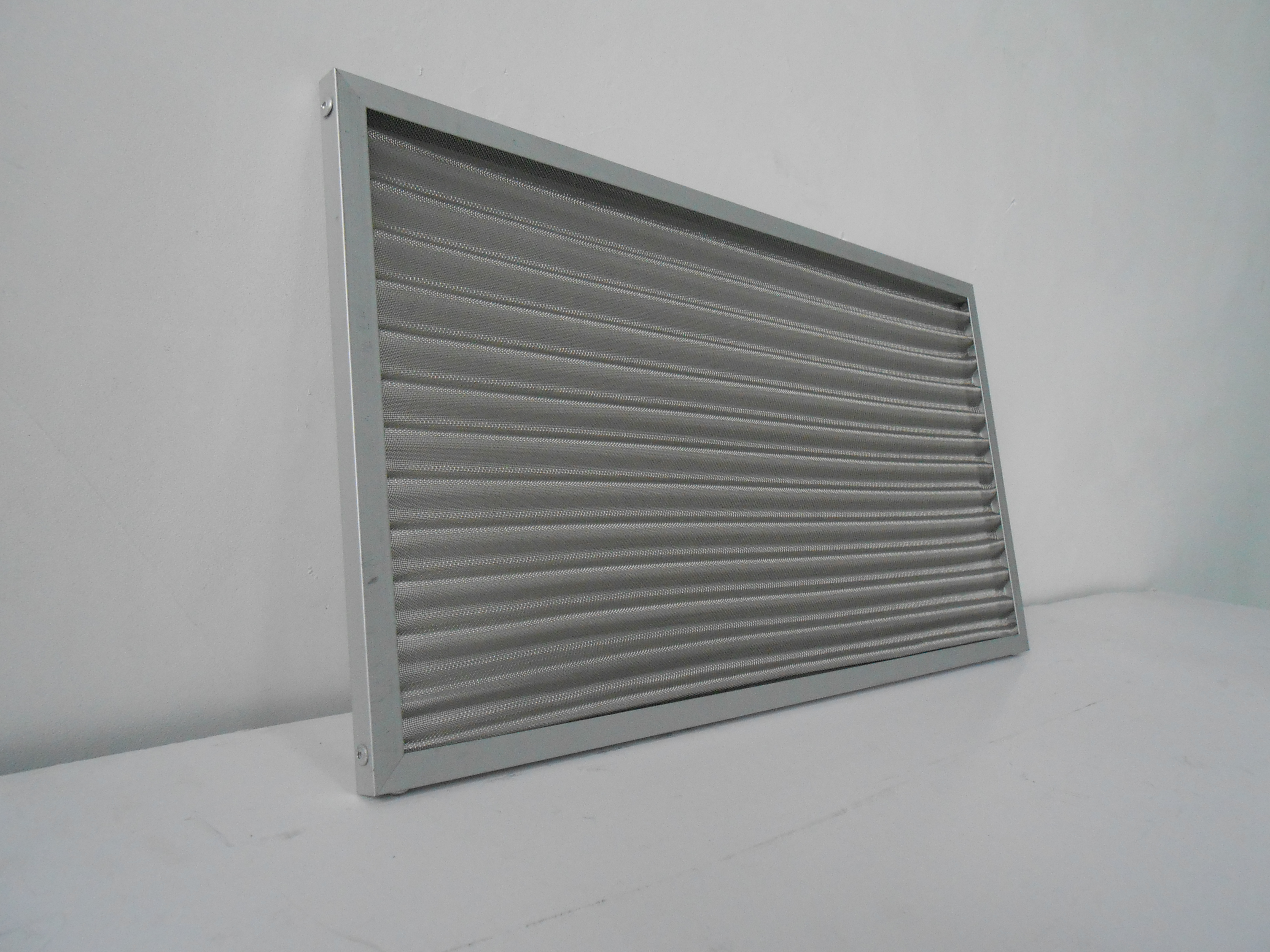

Coarse Efficiency Metal Mesh Air Filter
※Product Features
1. Composed of corrugated filter meshes of different specifications, which are alternately placed in the inner frame to reduce the space between meshes and improve the filtration efficiency;
2. Stainless-steel outer frames and frames made of stainless-steel corrugated meshes applied in acid-alkali resistant or high-temperature resistant condition;
3. Large airflow, low resistance, washable and reusable, long service life.
※Application Field
Applied to central air-conditioning range hoods and primary filtration, as well as special acid-resistant, alkali-resistant, or high-temperature resistant ventilation filtration.
※Material Composition and Running Condition
Filter element: Aluminum corrugated mesh/ Stainless-steel corrugated mesh
Frame material: aluminum profile/ Aluminum sheet/ galvanized sheet/ SS
Protective mesh: Galvanized square mesh/ Galvanized iron wire/ Stainless-steel square mesh/ Tie rod
Optional Thicknesses of Aluminum Profiles (mm): 10, 17, 21, 25, 46,50
Maximum operating temperature: 300℃
Maximum humidity applicable: 100%
※Size&Data
Size( W*H*D) (mm) | Rated airflow (m³/h) | Initial resistance (≦pa) | Filtration area (㎡) |
592*592*21 | 3200 | 20 | 1.05 |
592*287*21 | 1560 | 20 | 0.51 |
592*490*21 | 2650 | 20 | 0.87 |
592*592*46 | 3200 | 20 | 3.15 |
592*287*46 | 1560 | 20 | 1.53 |
592*490*46 | 2660 | 20 | 2.61 |
592*592*50 | 3200 | 20 | 3.86 |
592*287*50 | 1560 | 20 | 1.87 |
492*490*50 | 2660 | 20 | 3.20 |
Besides the size above, custom size acceptable.
