2.5 Mini Pleat Medium Efficiency Air Filter

Availability:



Inquire Add to Basket PDF Export

Product Description

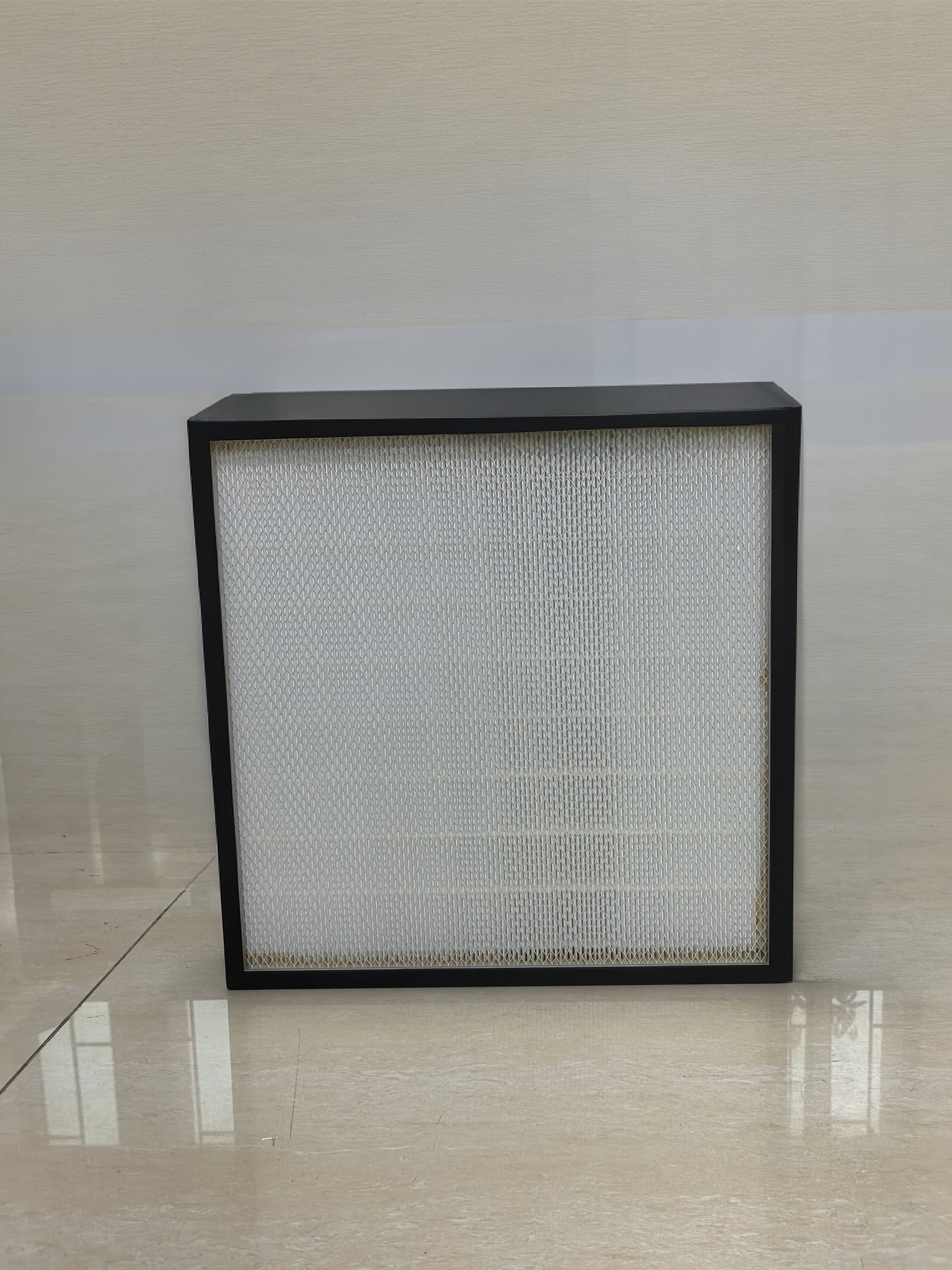

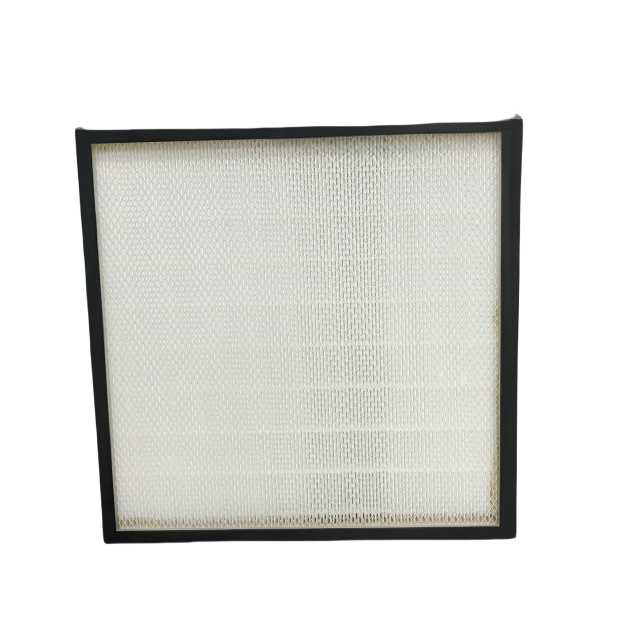

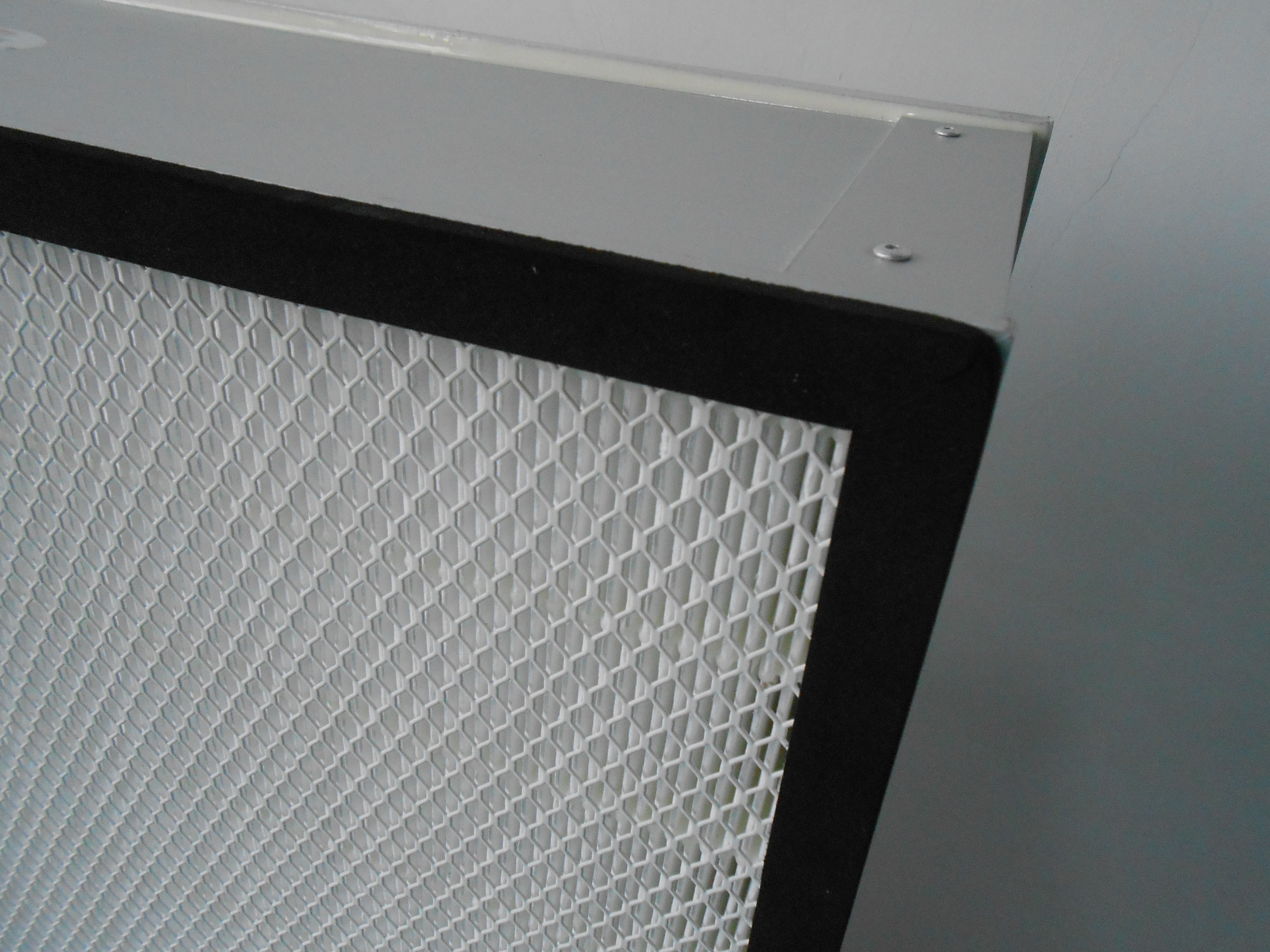

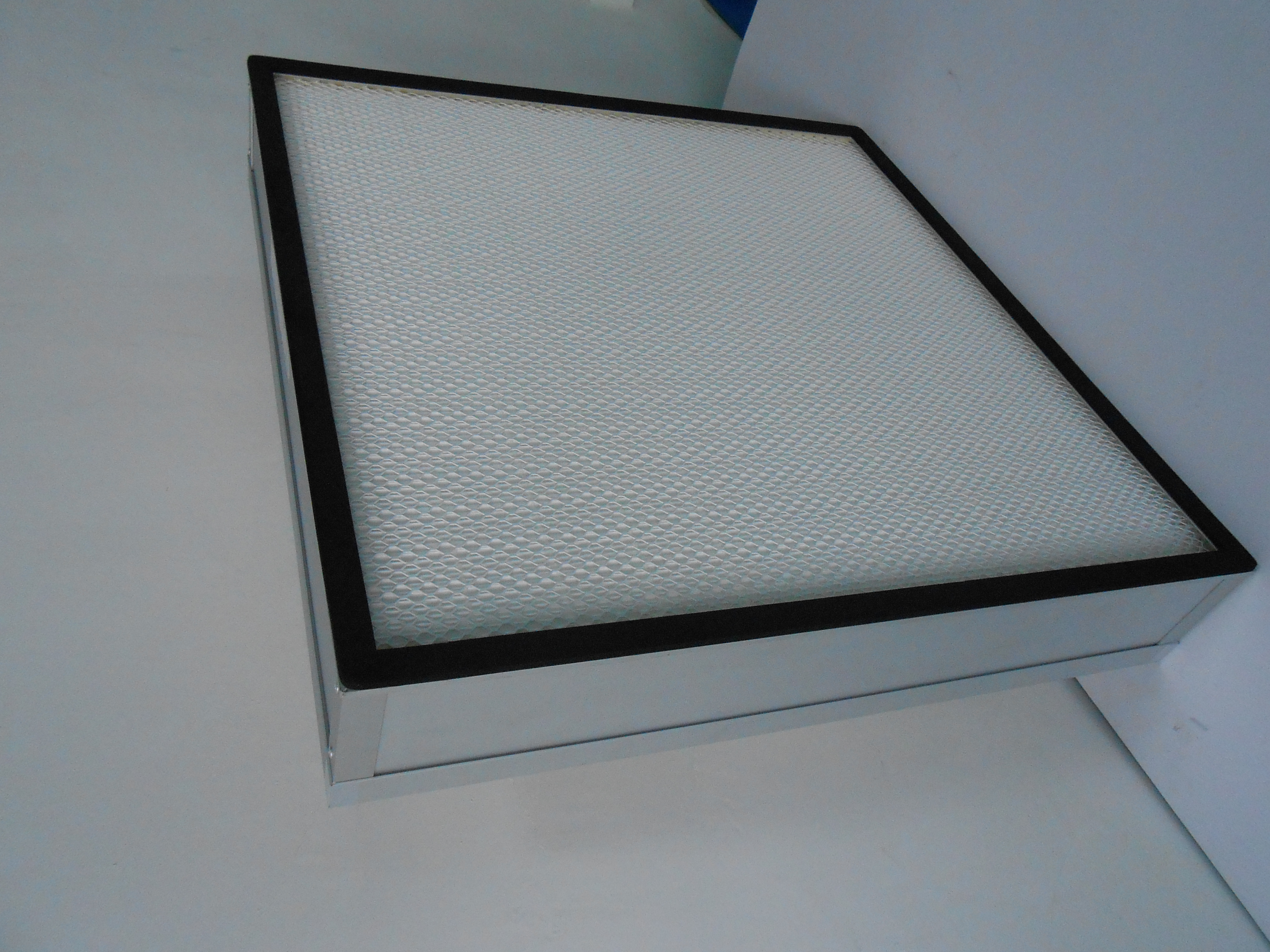

Mini Pleat Medium Efficiency Air Filter

※Product Features

Compact design,light weight,convenient installation,stable efficiency and smooth air speed.

※Application Field

Applied in central AC and integrated air supply system.Acted as medium efficiency filter to AC system, to protect high efficiency filter and the system itself.

※Material Composition and Running Condition

Filter element:ultra fine glass fiber filter paper

Frame:aluminum profile/ aluminum sheet/ zinc-coated steel sheet/ SS

Sealant:two-component polyurethane adhesive

Sealing strip:EVA/ Neoprene

Separator:polyolefin hot-melt adhesive

Filtration Efficiency:65%~95%@0.5μm

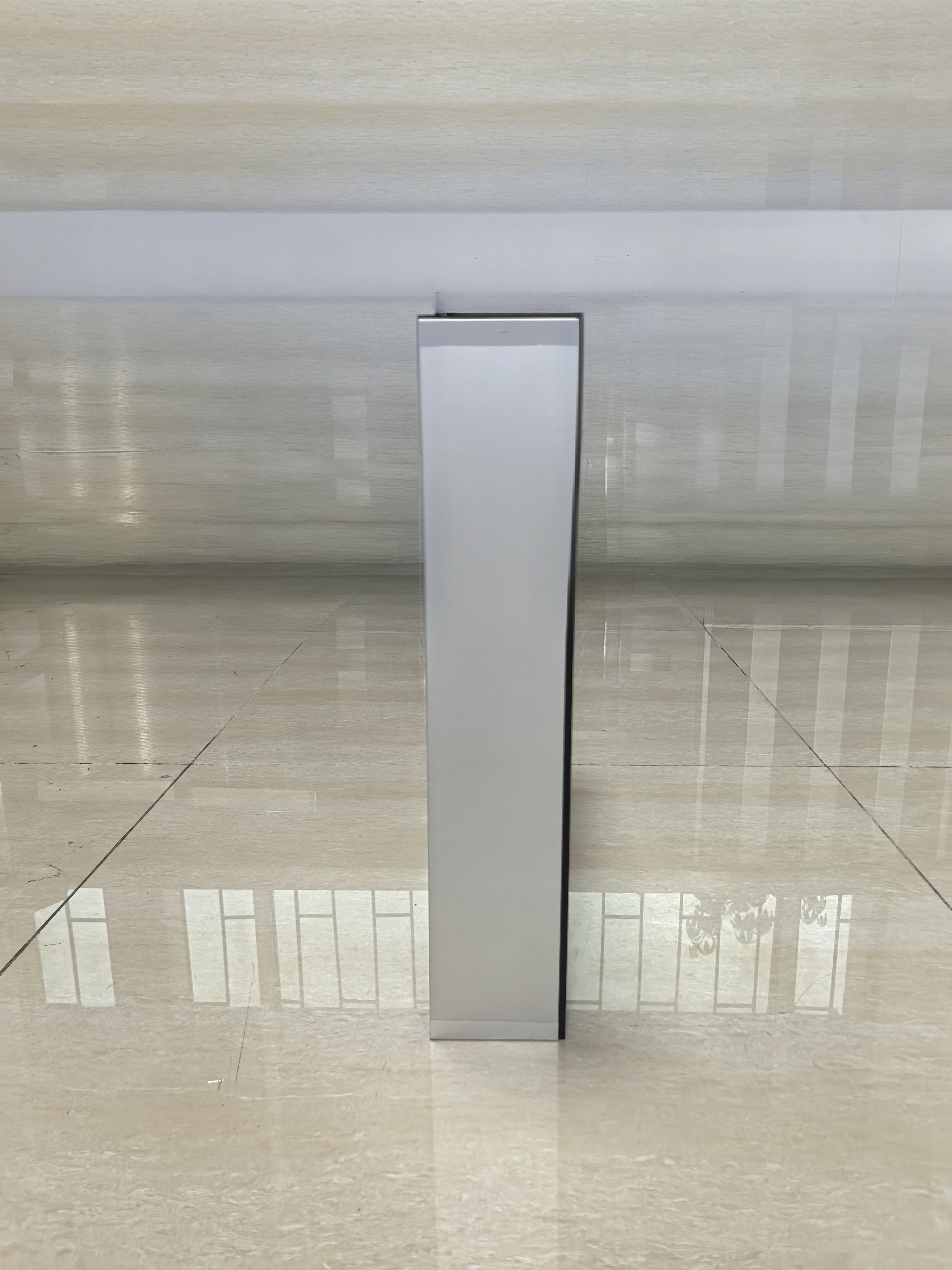

Available thickness(mm) of aluminum profile frame:46,50,69,80,90,96,120

Max.temperature applicable: 70℃

Max.humidity applicable: 80%

※Size&Data

Size (HWD) (mm)	Rated airflow (m³/h)	Initial resistance (≦pa)	Final resistance (pa)	Filtration area (㎡)	Dust capacity (g)	Efficiency
32032096	660	60	250~300	4.52	271	F6
32032096	660	80	300~400	4.52	271	F7
32032096	660	100	300~400	4.52	271	F8
32032096	660	120	400~450	4.52	271	F9
48448496	1500	60	250~300	10.24	614	F6
48448496	1500	80	300~400	10.24	614	F7
48448496	1500	100	300~400	10.24	614	F8
48448496	1500	120	400~450	10.24	614	F9
61061096	2360	60	250~300	16.20	972	F6
61061096	2360	80	300~400	16.20	972	F7
61061096	2360	100	300~400	16.20	972	F8
61061096	2360	120	400~450	16.20	972	F9
61091596	3500	60	250~300	24.04	1443	F6
61091596	3500	80	300~400	24.04	1443	F7
61091596	3500	100	300~400	24.04	1443	F8
61091596	3500	120	400~450	24.04	1443	F9
610122096	4650	60	250~300	31.89	1913	F6
610122096	4650	80	300~400	31.89	1913	F7
610122096	4650	100	300~400	31.89	1913	F8
610122096	4650	120	400~450	31.89	1913	F9
