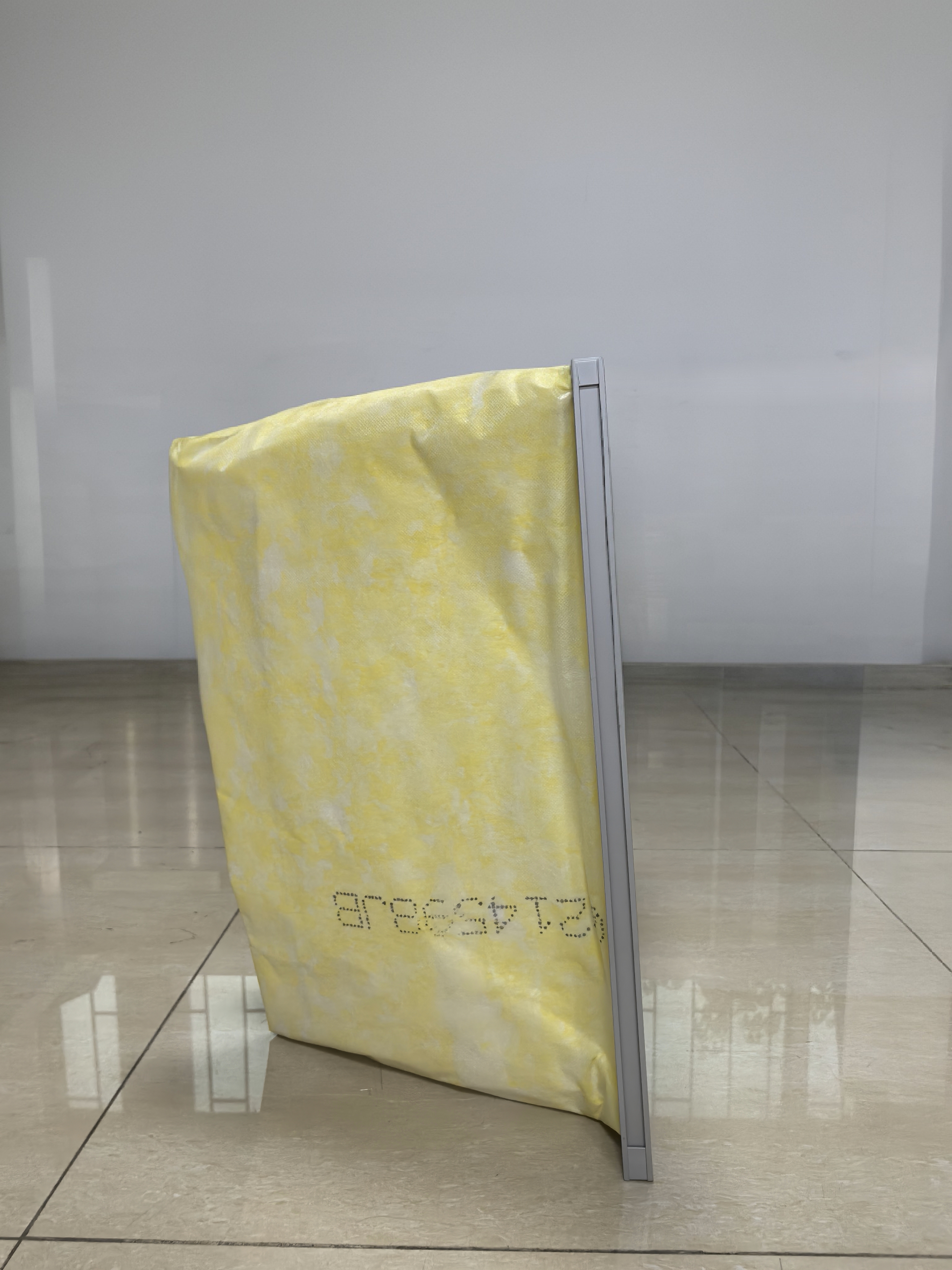

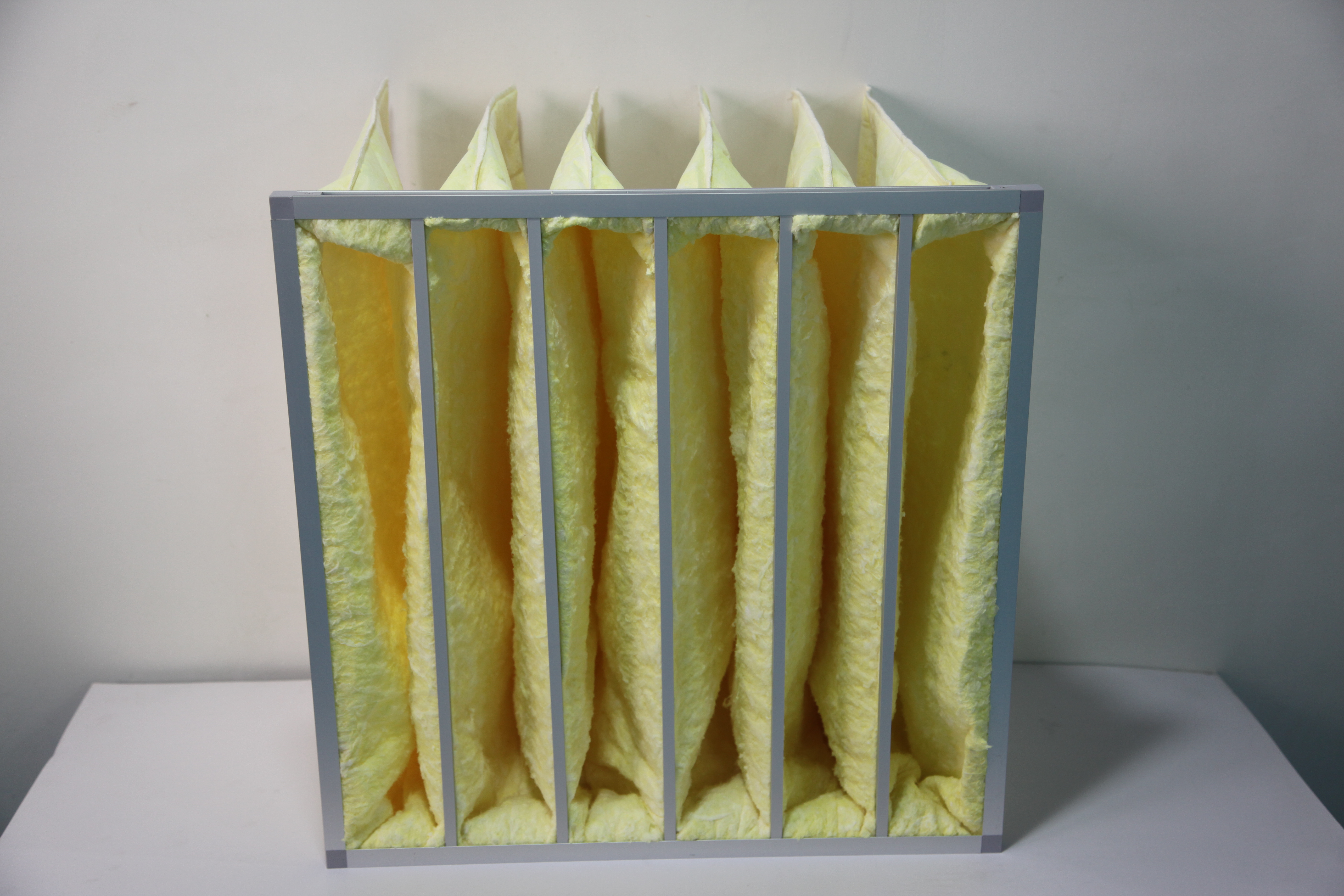

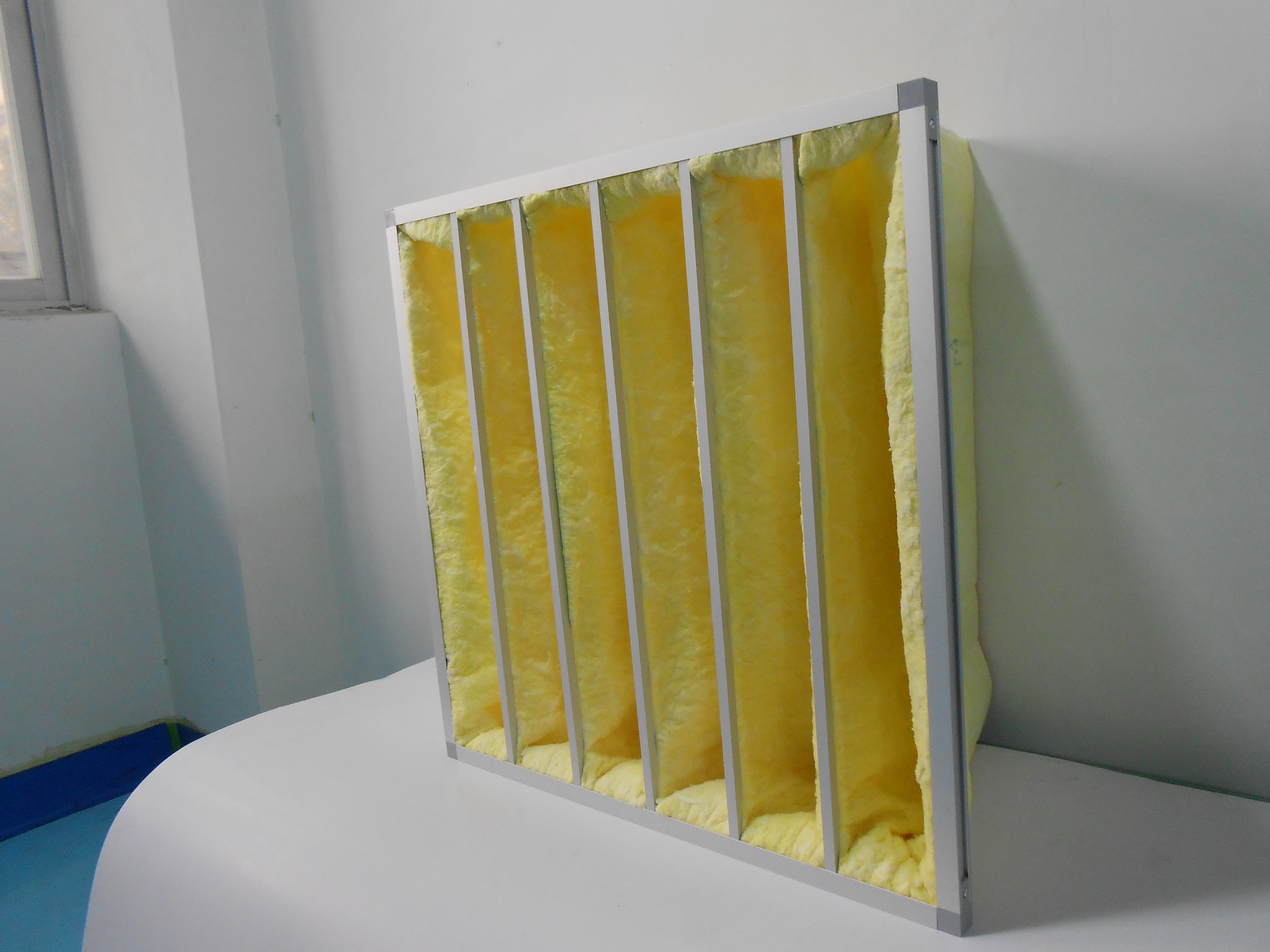

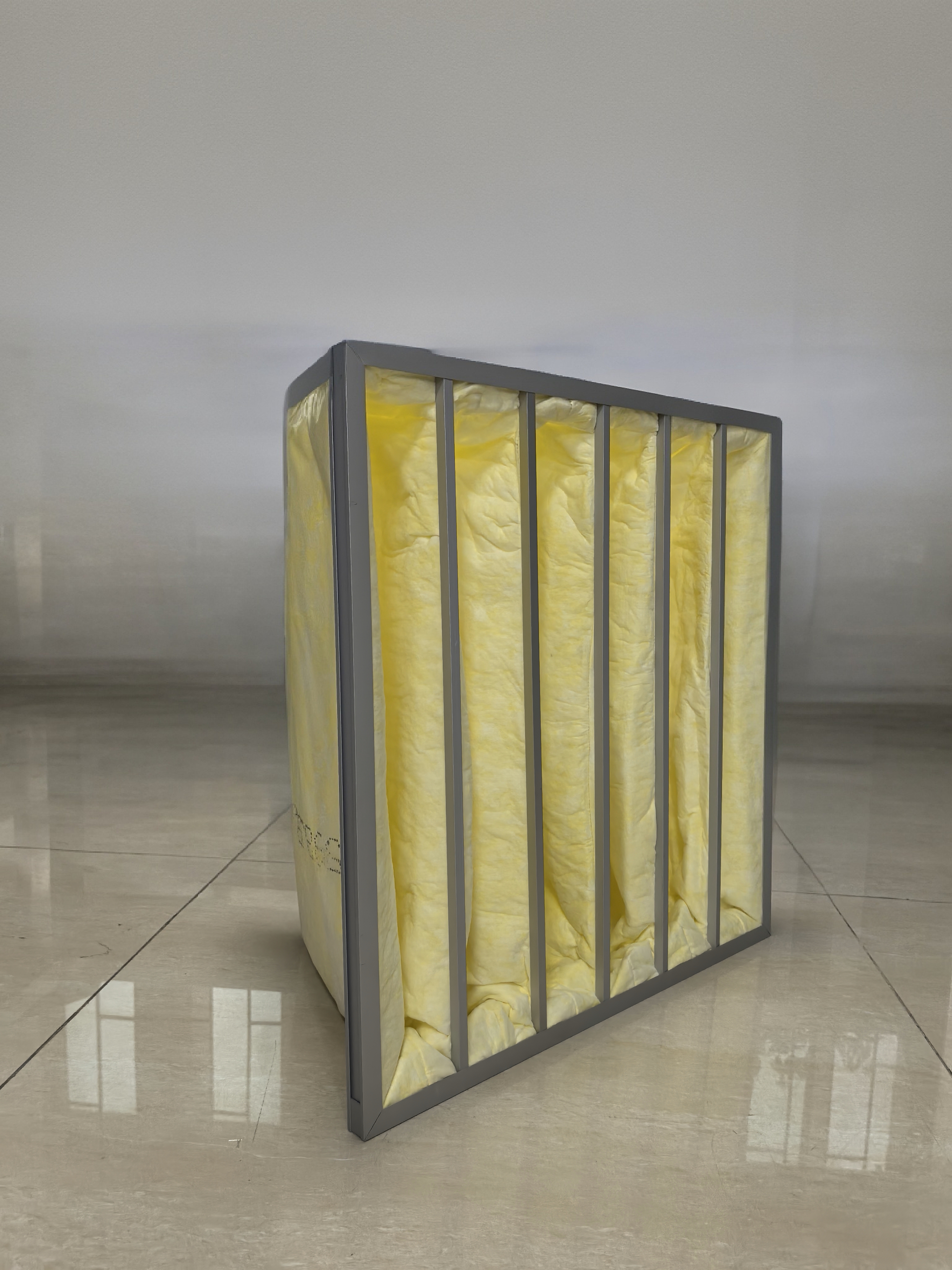

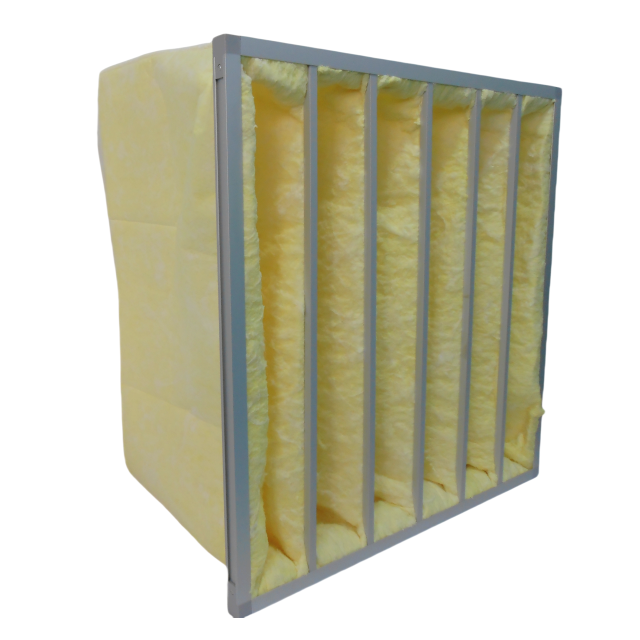

Glass Fiber Bag Air Filter
※Product Features
1. Excellent flame retardant performance, meeting UL-2 standard;
2. Large dust holding capacity and long service life;
3. Ultra-fine glass fiber filter material from the American JM company to ensure effective operation of the filtration system;
4. The filtration efficiency level can reach F5, F6, F7, F8 (EN779).
※Application Field
It is an ideal choice for fire-resistant certified enterprises and also an ideal configuration commonly used in ventilation and air conditioning systems.
※Material Composition and Running Condition
Filter element: fiberglass wool
Filter bag type: sewn bag
Frame material: aluminum profile/ galvanized sheet
Filtration efficiency: 45% to 95% at 0.5μm
Optional thicknesses for aluminum profiles (mm): 21, 25
Maximum operating temperature: 120℃
Maximum humidity applicable: 100%
※Size&Data
Size (W*H*D) (mm) | No.of bags | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area(㎡) | Dust capacity (g) | Efficiency |
595*595*600 | 10 | 3600 | 55 | 250~300 | 7.7 | 1800 | F5 |
595*595*600 | 10 | 3600 | 70 | 250~300 | 7.7 | 1600 | F6 |
595*595*600 | 10 | 3600 | 100 | 300~400 | 7.7 | 1400 | F7 |
595*595*600 | 10 | 3600 | 130 | 300~400 | 7.7 | 1200 | F8 |
595*595*600 | 10 | 3050 | 55 | 250~300 | 6.5 | 1520 | F5 |
595*595*600 | 10 | 3050 | 70 | 250~300 | 6.5 | 1350 | F6 |
595*595*600 | 10 | 3050 | 100 | 300~400 | 6.5 | 1190 | F7 |
595*595*600 | 10 | 3050 | 130 | 300~400 | 6.5 | 1020 | F8 |
595*595*381 | 10 | 2400 | 55 | 250~300 | 5.1 | 1190 | F5 |
595*595*381 | 10 | 2400 | 70 | 250~300 | 5.1 | 1060 | F6 |
595*595*381 | 10 | 2400 | 100 | 300~400 | 5.1 | 930 | F7 |
595*595*381 | 10 | 2400 | 130 | 300~400 | 5.1 | 800 | F8 |
595*595*600 | 8 | 2950 | 55 | 250~300 | 6.3 | 1480 | F5 |
595*595*600 | 8 | 2950 | 70 | 250~300 | 6.3 | 1310 | F6 |
595*595*600 | 8 | 2950 | 100 | 300~400 | 6.3 | 1150 | F7 |
595*595*600 | 8 | 2950 | 130 | 300~400 | 6.3 | 990 | F8 |
595*595*500 | 8 | 2500 | 55 | 250~300 | 5.3 | 1240 | F5 |
595*595*500 | 8 | 2500 | 70 | 250~300 | 5.3 | 1100 | F6 |
595*595*500 | 8 | 2500 | 100 | 300~400 | 5.3 | 970 | F7 |
595*595*500 | 8 | 2500 | 130 | 300~400 | 5.3 | 830 | F8 |
595*595*381 | 8 | 1900 | 55 | 250~300 | 4.1 | 960 | F5 |
595*595*381 | 8 | 1900 | 70 | 250~300 | 4.1 | 850 | F6 |
595*595*381 | 8 | 1900 | 100 | 300~400 | 4.1 | 750 | F7 |
595*595*381 | 8 | 1900 | 130 | 300~400 | 4.1 | 640 | F8 |
595*595*600 | 6 | 2300 | 55 | 250~300 | 4.9 | 1150 | F5 |
595*595*600 | 6 | 2300 | 70 | 250~300 | 4.9 | 1020 | F6 |
595*595*600 | 6 | 2300 | 100 | 300~400 | 4.9 | 900 | F7 |
595*595*600 | 6 | 2300 | 130 | 300~400 | 4.9 | 770 | F8 |
595*595*500 | 6 | 2000 | 55 | 250~300 | 4.2 | 980 | F5 |
595*595*500 | 6 | 2000 | 70 | 250~300 | 4.2 | 880 | F6 |
595*595*500 | 6 | 2000 | 100 | 300~400 | 4.2 | 770 | F7 |
595*595*500 | 6 | 2000 | 130 | 300~400 | 4.2 | 660 | F8 |
595*595*381 | 6 | 1500 | 55 | 250~300 | 3.2 | 750 | F5 |
595*595*381 | 6 | 1500 | 70 | 250~300 | 3.2 | 670 | F6 |
595*595*381 | 6 | 1500 | 100 | 300~400 | 3.2 | 580 | F7 |
595*595*381 | 6 | 1500 | 130 | 300~400 | 3.2 | 500 | F8 |
Besides the size above, custom size acceptable.
