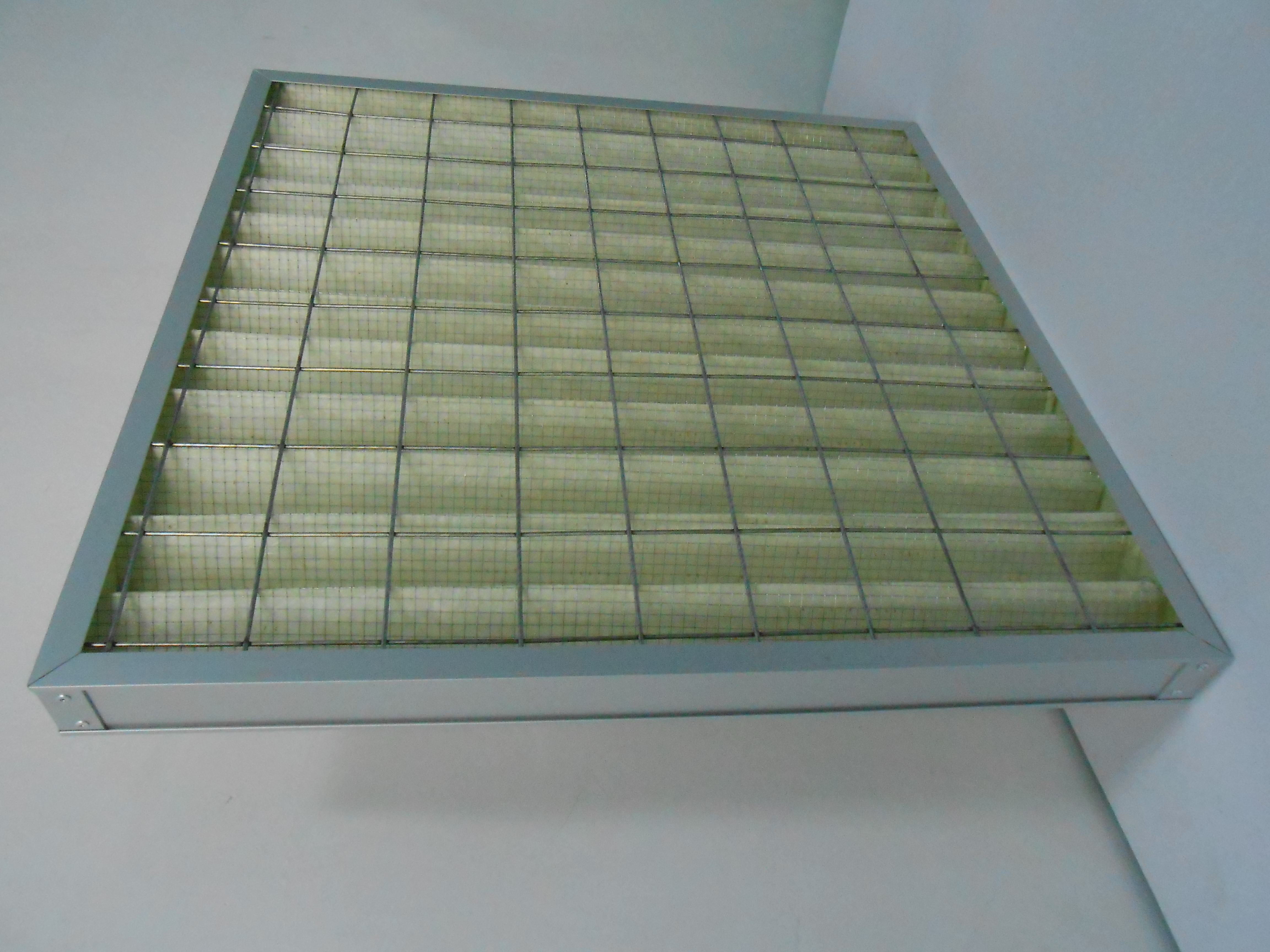

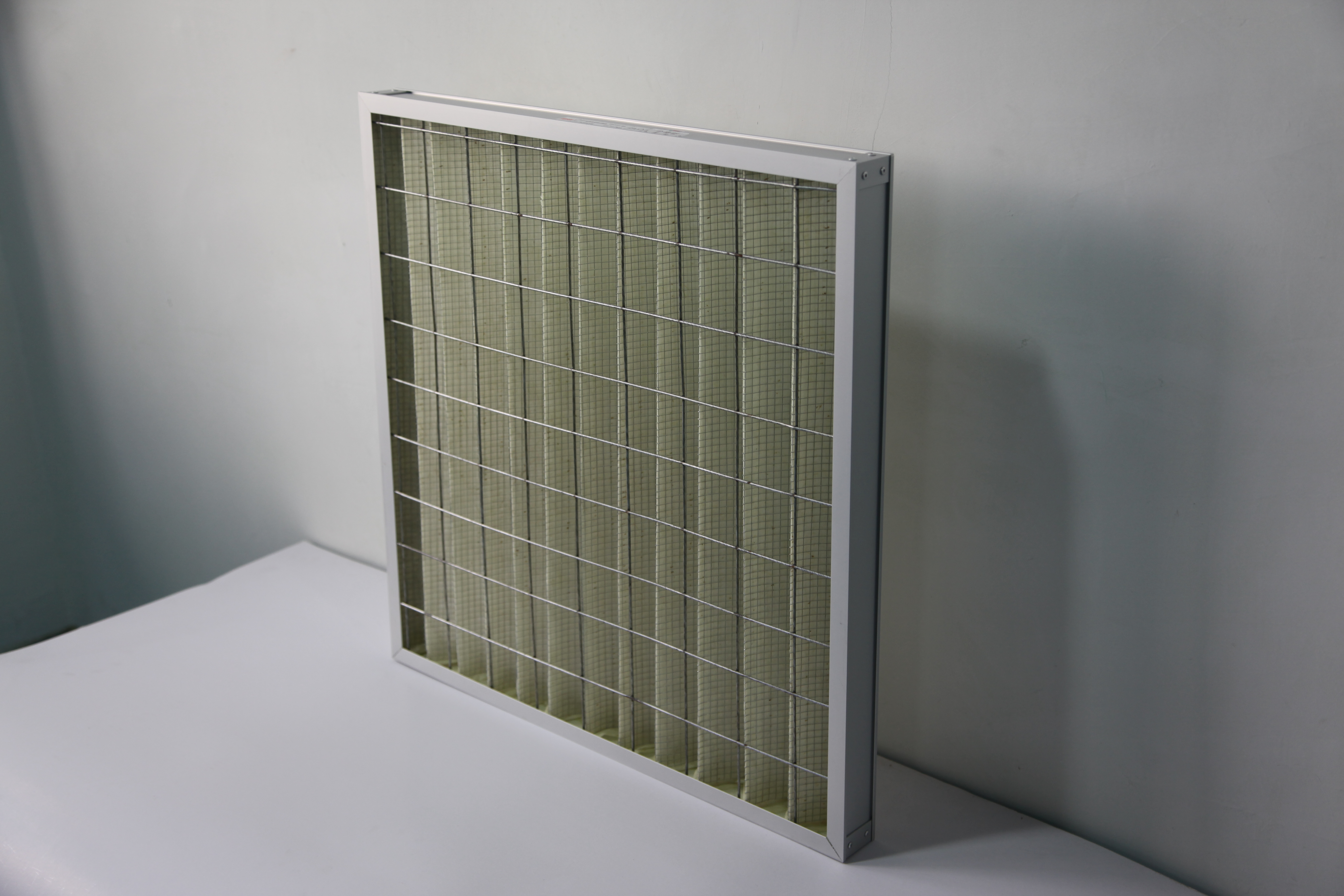

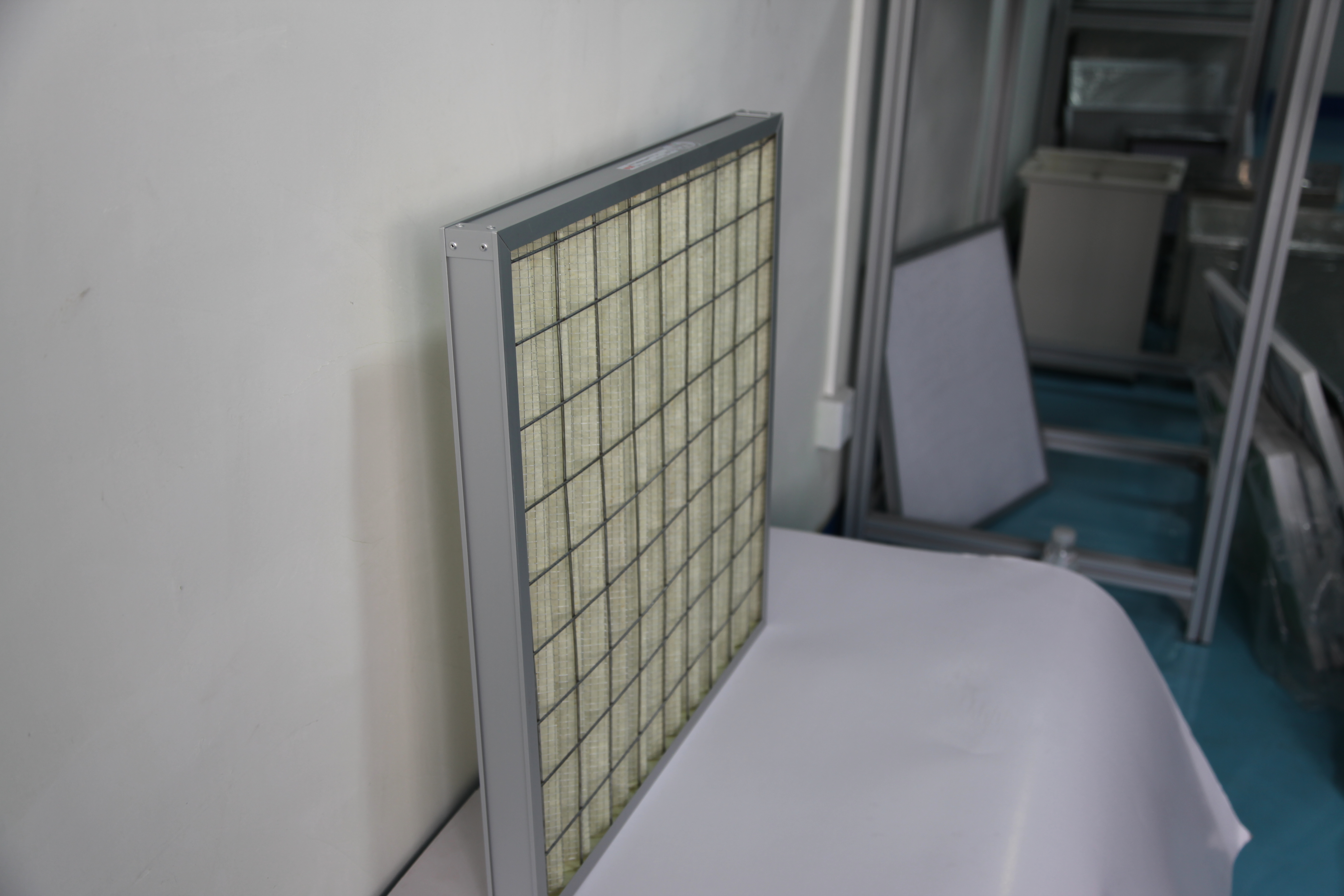

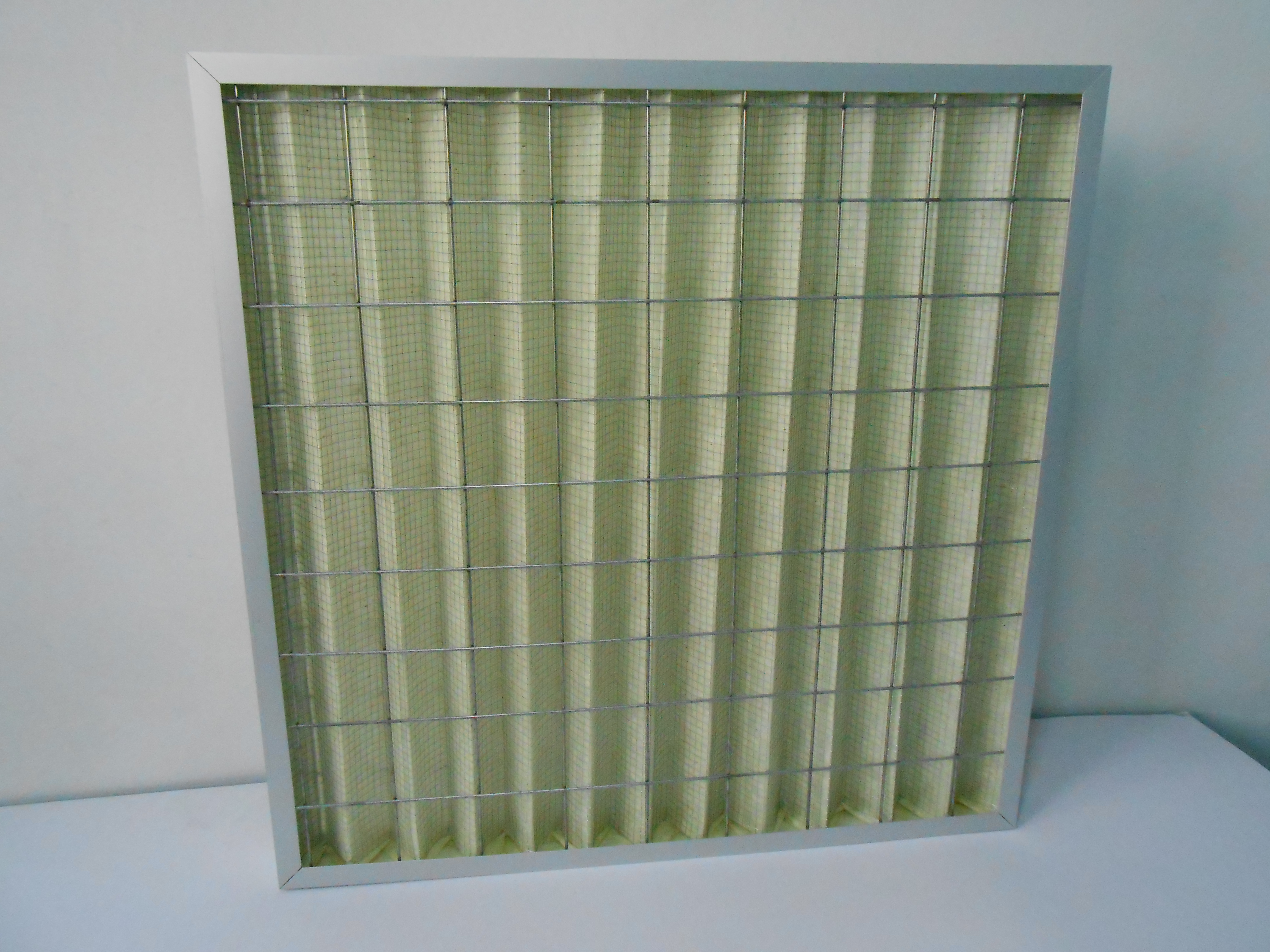

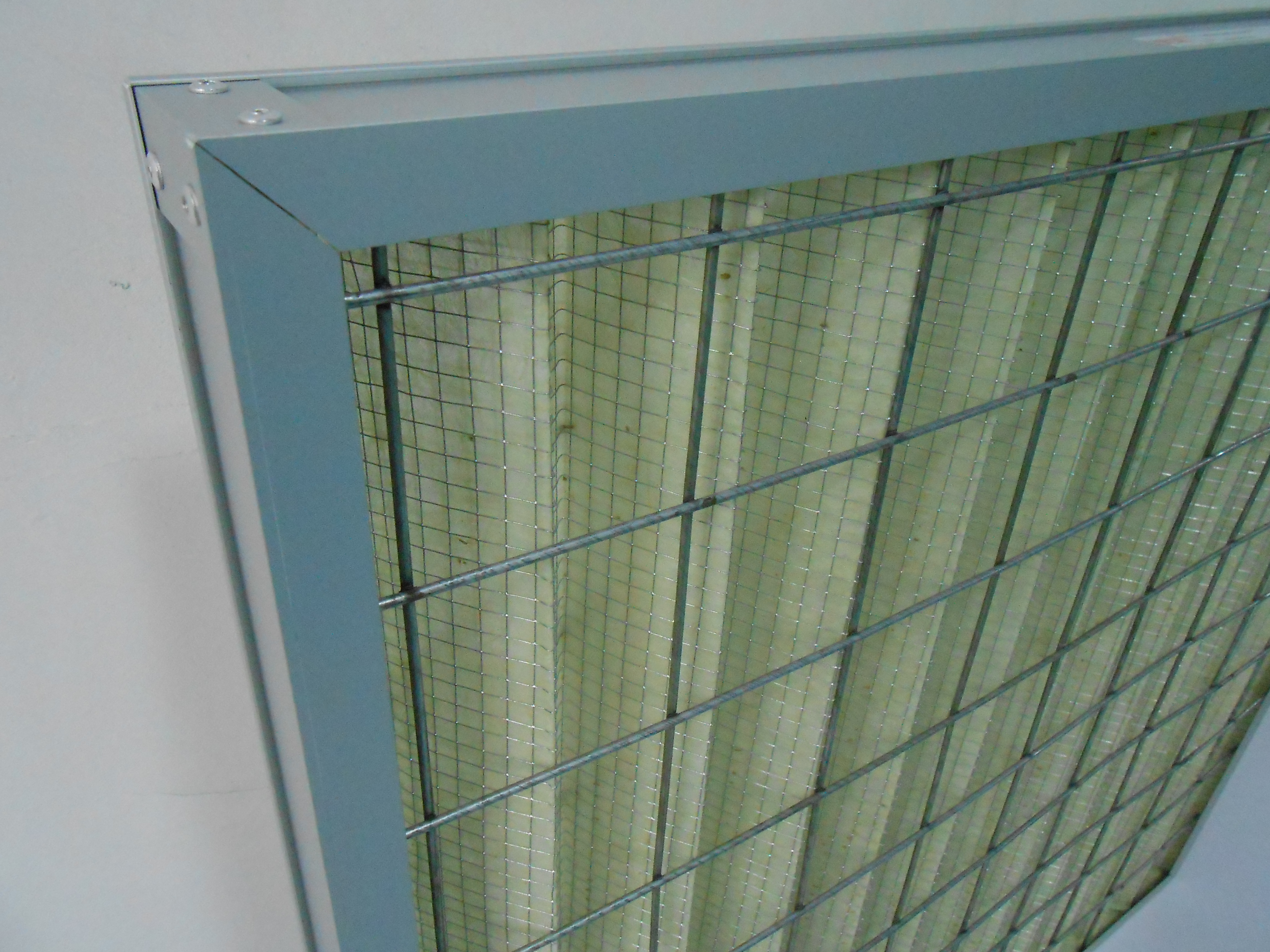

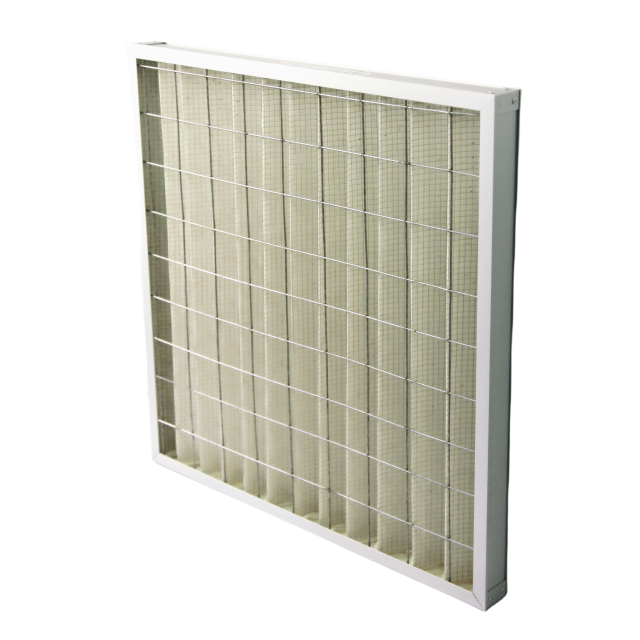

Medium Efficiency Concertina Air Filter
※Product Features
1. Compact design, high efficiency, large dust-holding capacity.
2. Mainly used for filtration in ventilation systems.
※Application Field
General air purification in fields such as electronics, pharmaceuticals, mechanical instruments, metallurgy, petroleum, chemical industry, light industry, and food.
※Material Composition and Running Condition
Filter element: Chemical fiber non - woven fabric
Frame material: galvanized sheet/ aluminum sheet/ Cardboard frame
Sealant:White latex/ All - purpose adhesive
Filtration efficiency: 45%~95%@0.5μm
Optional thicknesses for aluminum profiles (mm): 17,21,25,46,50,69,80,90,96
Maximum operating temperature: 80℃
Maximum humidity applicable: Cardboard frame:80%/ Others:100%
※Size&Data
Size (W*H*D) (mm) | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
592*592*46 | 630 | 50 | 250~300 | 0.97 | 175 | F5 |
592*592*46 | 630 | 65 | 250~300 | 0.97 | 155 | F6 |
592*592*46 | 630 | 80 | 300~400 | 0.97 | 135 | F7 |
592*592*46 | 630 | 105 | 300~400 | 0.97 | 117 | F8 |
592*592*46 | 630 | 120 | 400~450 | 0.97 | 107 | F9 |
287*592*46 | 330 | 50 | 250~300 | 0.52 | 93 | F5 |
287*592*46 | 330 | 65 | 250~300 | 0.52 | 83 | F6 |
287*592*46 | 330 | 80 | 300~400 | 0.52 | 72 | F7 |
287*592*46 | 330 | 105 | 300~400 | 0.52 | 62 | F8 |
287*592*46 | 330 | 120 | 400~450 | 0.52 | 57 | F9 |
490*592*46 | 550 | 50 | 250~300 | 0.86 | 155 | F5 |
490*592*46 | 550 | 65 | 250~300 | 0.86 | 138 | F6 |
490*592*46 | 550 | 80 | 300~400 | 0.86 | 120 | F7 |
490*592*46 | 550 | 105 | 300~400 | 0.86 | 103 | F8 |
490*592*46 | 550 | 120 | 400~450 | 0.86 | 95 | F9 |
592*592*96 | 750 | 50 | 250~300 | 1.17 | 211 | F5 |
592*592*96 | 750 | 65 | 250~300 | 1.17 | 187 | F6 |
592*592*96 | 750 | 80 | 300~400 | 1.17 | 164 | F7 |
592*592*96 | 750 | 105 | 300~400 | 1.17 | 140 | F8 |
592*592*96 | 750 | 120 | 400~450 | 1.17 | 130 | F9 |
287*592*96 | 380 | 50 | 250~300 | 0.59 | 105 | F5 |
287*592*96 | 380 | 65 | 250~300 | 0.59 | 95 | F6 |
287*592*96 | 380 | 80 | 300~400 | 0.59 | 82 | F7 |
287*592*96 | 380 | 105 | 300~400 | 0.59 | 70 | F8 |
287*592*96 | 380 | 120 | 400~450 | 0.59 | 65 | F9 |
490*592*96 | 680 | 50 | 250~300 | 1.05 | 190 | F5 |
490*592*96 | 680 | 65 | 250~300 | 1.05 | 168 | F6 |
490*592*96 | 680 | 80 | 300~400 | 1.05 | 147 | F7 |
490*592*96 | 680 | 105 | 300~400 | 1.05 | 126 | F8 |
490*592*96 | 680 | 120 | 400~450 | 1.05 | 116 | F9 |
Besides the size above, custom size acceptable.
