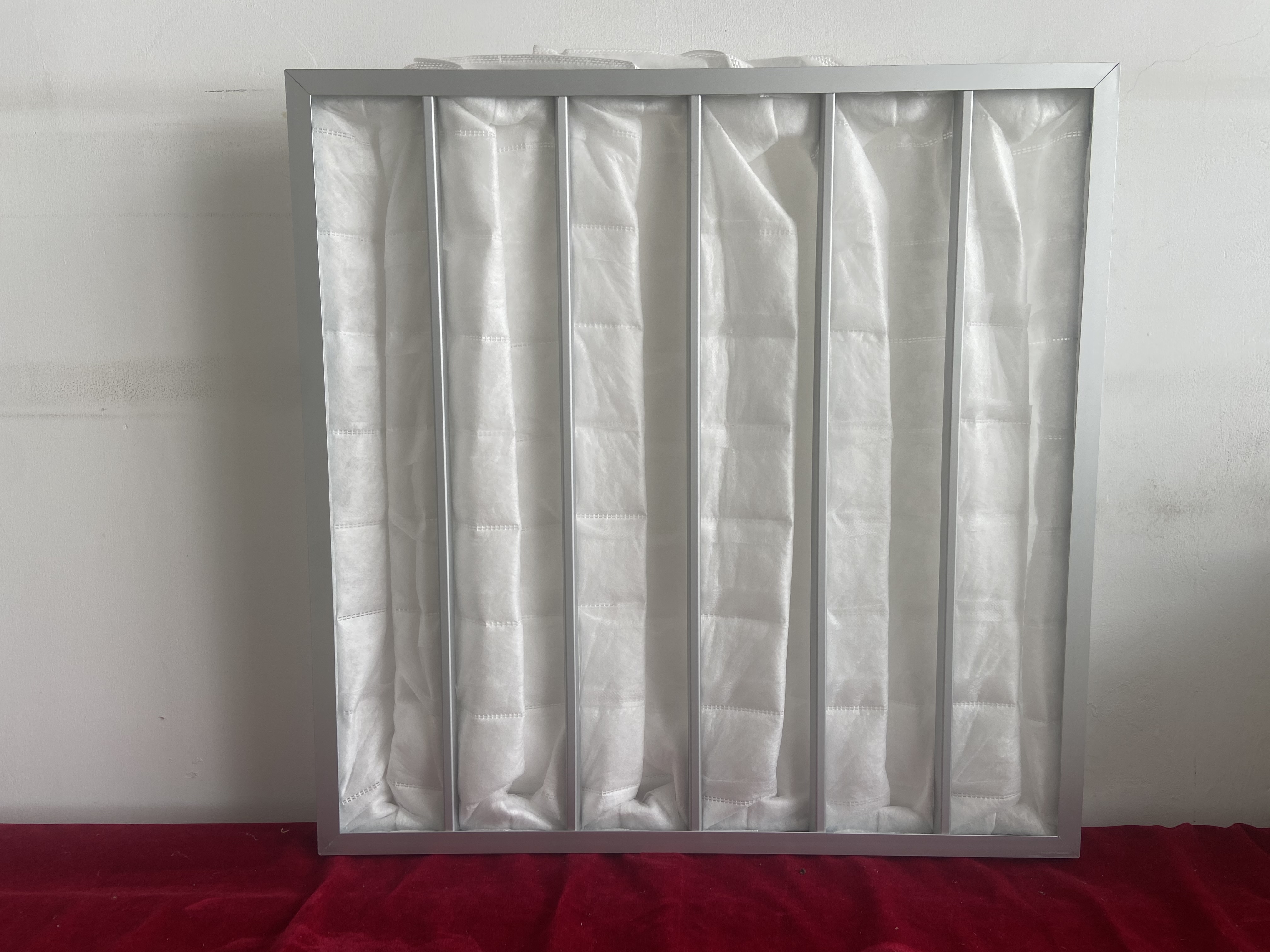

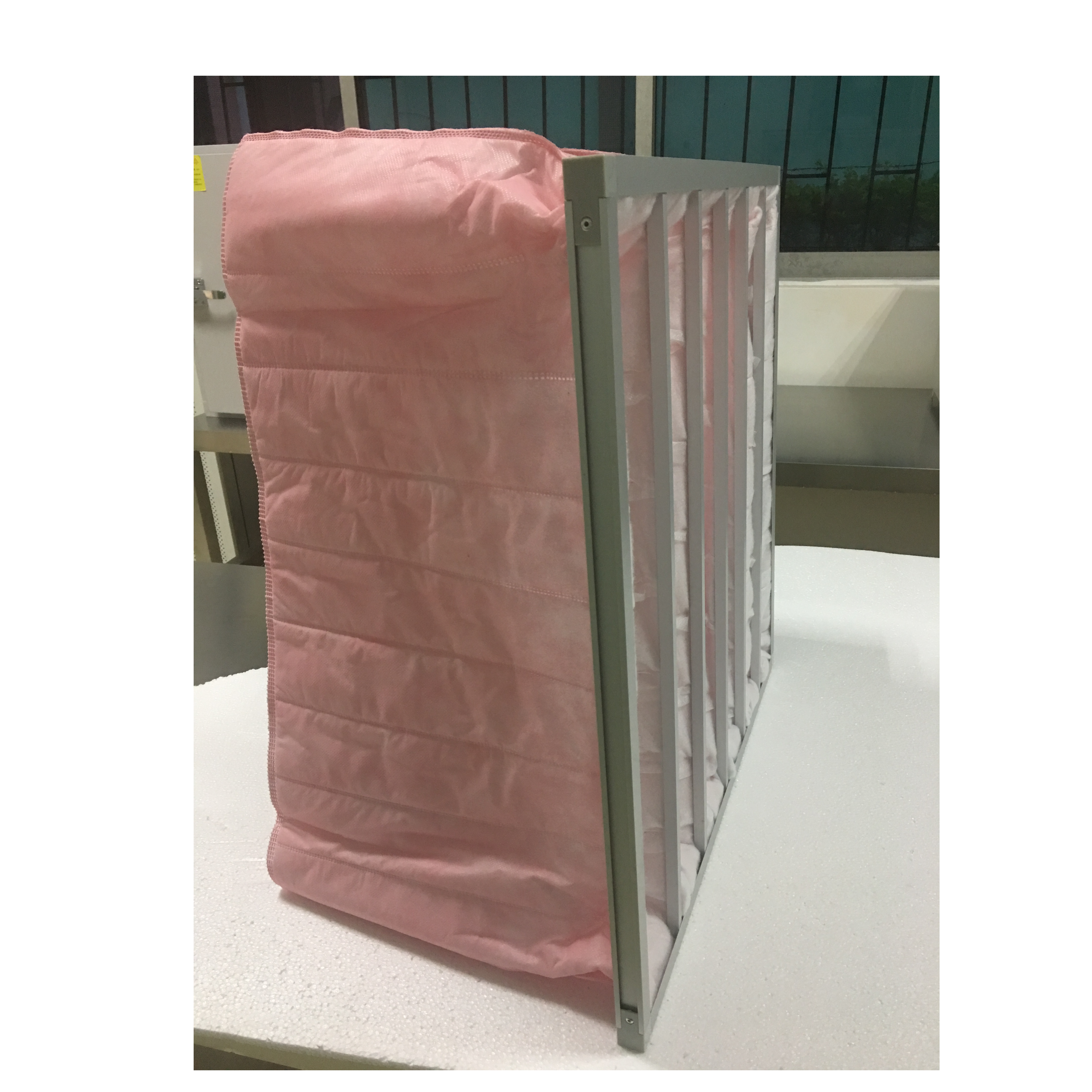

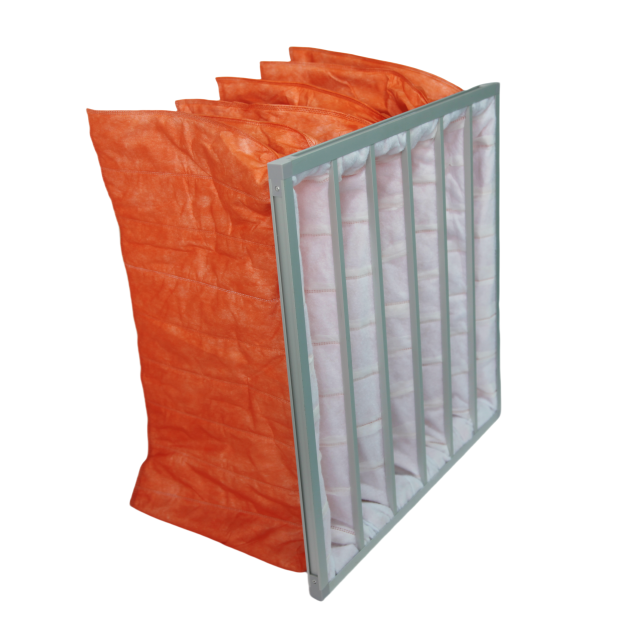

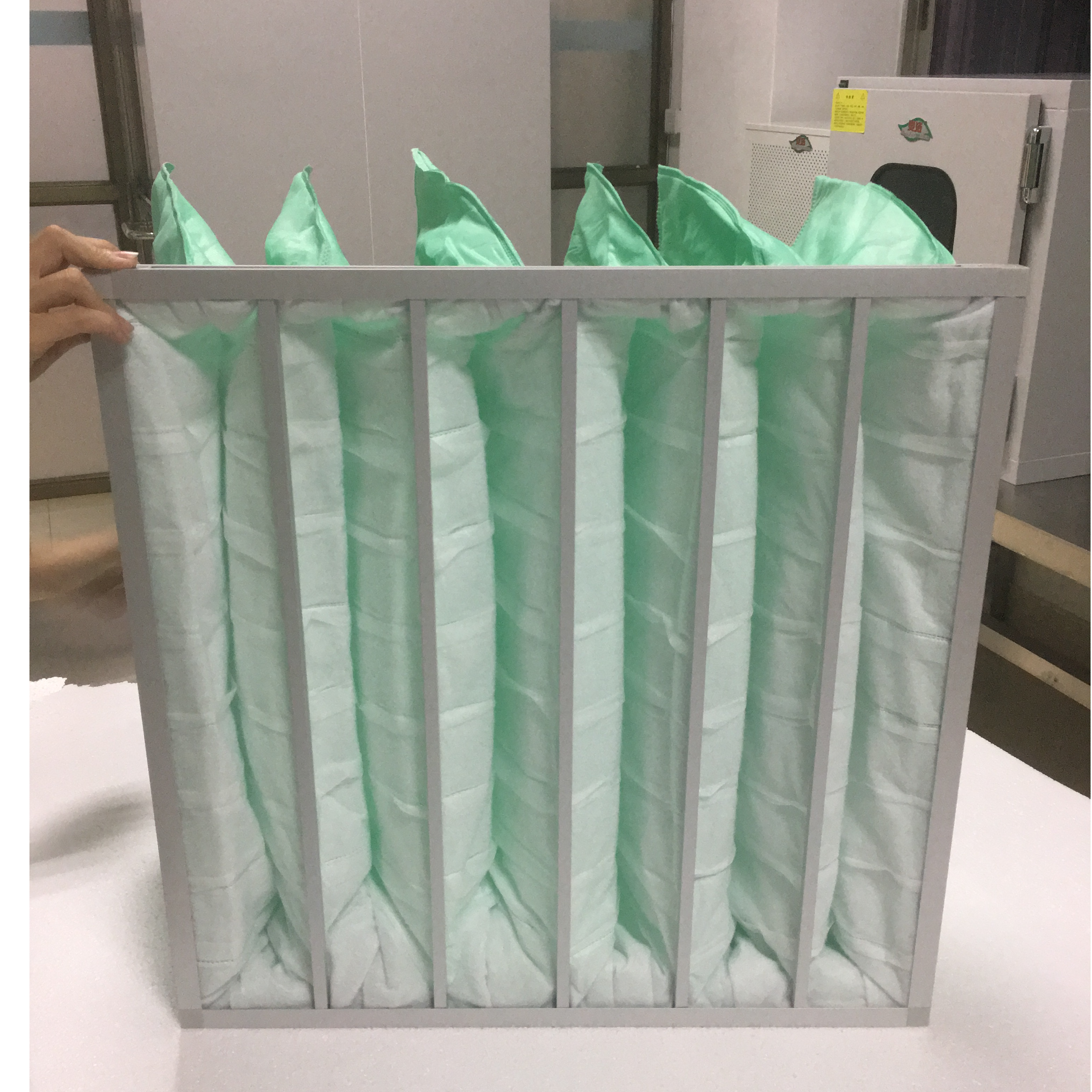

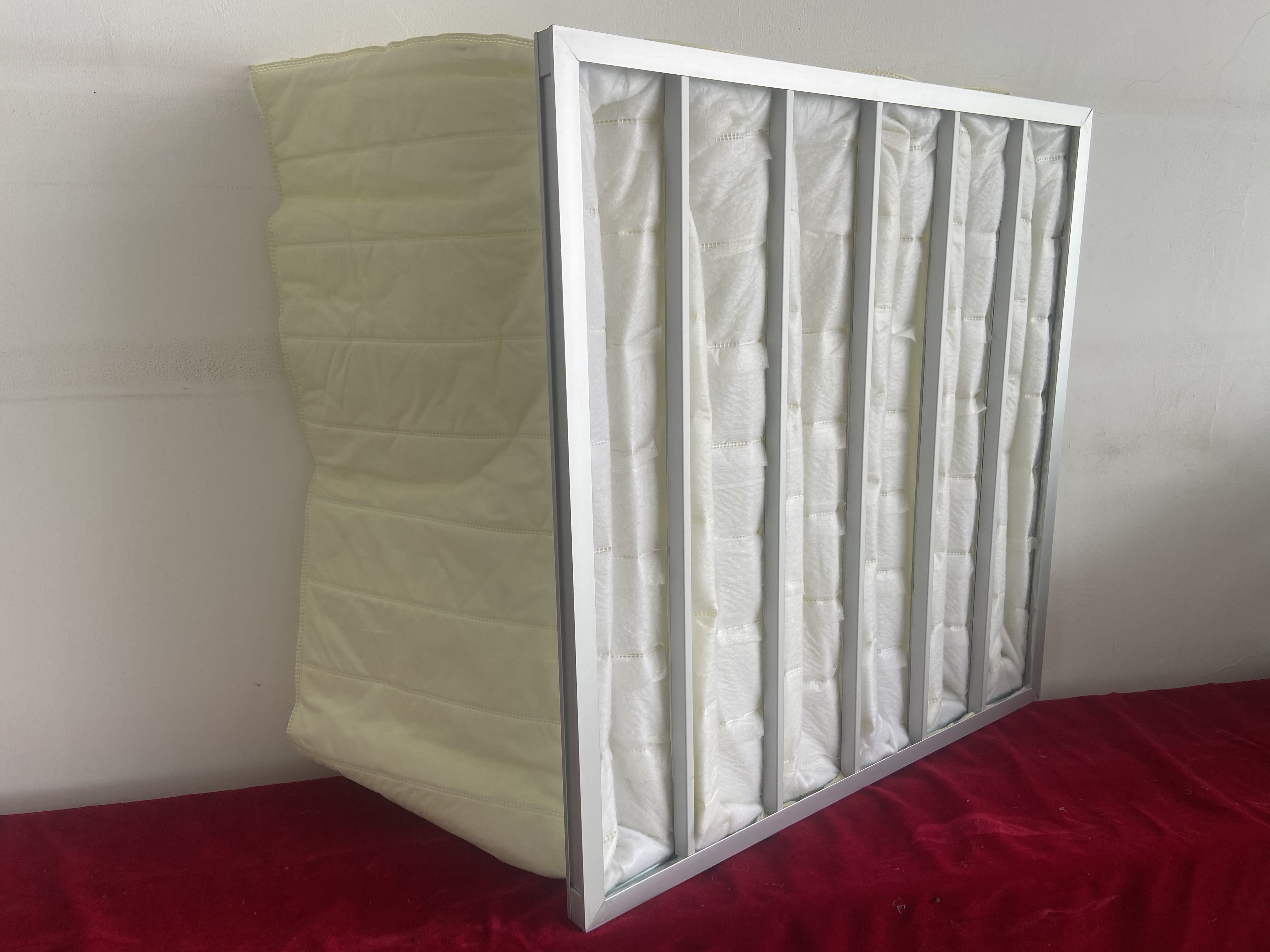

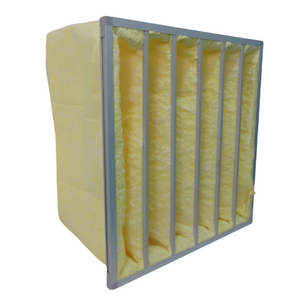

Medium Efficiency Bag Air Filter
※Product Features
1. Utilizing ultra-fine chemical fiber filter material, with a reasonable structure, large dust holding capacity, and stable performance;
2. The optimized "V" shaped filter bag structure is adopted, featuring high air volume, low resistance, and long service life;
3. It can be immersed and reused (with certain changes in product performance, reduced efficiency, and increased wind resistance).
※Application Field
It is widely used in ventilation and air conditioning systems, precision instrument manufacturing plants, electronics factories, pharmaceutical workshops, and other similar locations.
※Material Composition and Running Condition
Filter element:chemical fiber non-woven fabric
Filter bag type: ultrasonic bag, bag sewn by sewing machine
Frame:aluminum profile/ zinc-coated steel sheet
Filtration efficiency: 45%~95%@0.5μm (F5, F6, F7, F8, F9)
Optional thicknesses for aluminum profiles (mm): 10, 17, 21, 25, 46
Maximum operating temperature: 80℃
Maximum humidity applicable: 100%
※Size&Data
Size(W*H*D) (mm) | No.of bags | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
287*592*500 | 3 | 1400 | 50 | 250~300 | 2.10 | 377 | F5 |
287*592*500 | 3 | 1400 | 65 | 250~300 | 2.10 | 335 | F6 |
287*592*500 | 3 | 1400 | 80 | 300~400 | 2.10 | 293 | F7 |
287*592*500 | 3 | 1400 | 105 | 300~400 | 2.10 | 251 | F8 |
287*592*500 | 3 | 1400 | 120 | 400~450 | 2.10 | 230 | F9 |
592*592*500 | 3 | 1550 | 50 | 250~300 | 2.40 | 431 | F5 |
592*592*500 | 3 | 1550 | 65 | 250~300 | 2.40 | 383 | F6 |
592*592*500 | 3 | 1550 | 80 | 300~400 | 2.40 | 335 | F7 |
592*592*500 | 3 | 1550 | 105 | 300~400 | 2.40 | 287 | F8 |
592*592*500 | 3 | 1550 | 120 | 400~450 | 2.40 | 263 | F9 |
592*592*500 | 5 | 2330 | 50 | 250~300 | 3.60 | 647 | F5 |
592*592*500 | 5 | 2330 | 65 | 250~300 | 3.60 | 575 | F6 |
592*592*500 | 5 | 2330 | 80 | 300~400 | 3.60 | 503 | F7 |
592*592*500 | 5 | 2330 | 105 | 300~400 | 3.60 | 431 | F8 |
592*592*500 | 5 | 2330 | 120 | 400~450 | 3.60 | 395 | F9 |
592*592*500 | 6 | 2700 | 50 | 250~300 | 4.20 | 755 | F5 |
592*592*500 | 6 | 2700 | 65 | 250~300 | 4.20 | 671 | F6 |
592*592*500 | 6 | 2700 | 80 | 300~400 | 4.20 | 587 | F7 |
592*592*500 | 6 | 2700 | 105 | 300~400 | 4.20 | 503 | F8 |
592*592*500 | 6 | 2700 | 120 | 400~450 | 4.20 | 451 | F9 |
592*592*500 | 8 | 3500 | 50 | 250~300 | 5.40 | 971 | F5 |
592*592*500 | 8 | 3500 | 65 | 250~300 | 5.40 | 863 | F6 |
592*592*500 | 8 | 3500 | 80 | 300~400 | 5.40 | 755 | F7 |
592*592*500 | 8 | 3500 | 105 | 300~400 | 5.40 | 647 | F8 |
592*592*500 | 8 | 3500 | 120 | 400~450 | 5.40 | 593 | F9 |
592*592*500 | 10 | 4270 | 50 | 250~300 | 6.60 | 1187 | F5 |
592*592*500 | 10 | 4270 | 65 | 250~300 | 6.60 | 1055 | F6 |
592*592*500 | 10 | 4270 | 80 | 300~400 | 6.60 | 923 | F7 |
592*592*500 | 10 | 4270 | 105 | 300~400 | 6.60 | 791 | F8 |
592*592*500 | 10 | 4270 | 120 | 400~450 | 6.60 | 725 | F9 |
Besides the size above, custom size acceptable.
Medium Efficiency Bag Air Filter
※Product Features
1. Utilizing ultra-fine chemical fiber filter material, with a reasonable structure, large dust holding capacity, and stable performance;
2. The optimized "V" shaped filter bag structure is adopted, featuring high air volume, low resistance, and long service life;
3. It can be immersed and reused (with certain changes in product performance, reduced efficiency, and increased wind resistance).
※Application Field
It is widely used in ventilation and air conditioning systems, precision instrument manufacturing plants, electronics factories, pharmaceutical workshops, and other similar locations.
※Material Composition and Running Condition
Filter element:chemical fiber non-woven fabric
Filter bag type: ultrasonic bag, bag sewn by sewing machine
Frame:aluminum profile/ zinc-coated steel sheet
Filtration efficiency: 45%~95%@0.5μm (F5, F6, F7, F8, F9)
Optional thicknesses for aluminum profiles (mm): 10, 17, 21, 25, 46
Maximum operating temperature: 80℃
Maximum humidity applicable: 100%
※Size&Data
Size(W*H*D) (mm) | No.of bags | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
287*592*500 | 3 | 1400 | 50 | 250~300 | 2.10 | 377 | F5 |
287*592*500 | 3 | 1400 | 65 | 250~300 | 2.10 | 335 | F6 |
287*592*500 | 3 | 1400 | 80 | 300~400 | 2.10 | 293 | F7 |
287*592*500 | 3 | 1400 | 105 | 300~400 | 2.10 | 251 | F8 |
287*592*500 | 3 | 1400 | 120 | 400~450 | 2.10 | 230 | F9 |
592*592*500 | 3 | 1550 | 50 | 250~300 | 2.40 | 431 | F5 |
592*592*500 | 3 | 1550 | 65 | 250~300 | 2.40 | 383 | F6 |
592*592*500 | 3 | 1550 | 80 | 300~400 | 2.40 | 335 | F7 |
592*592*500 | 3 | 1550 | 105 | 300~400 | 2.40 | 287 | F8 |
592*592*500 | 3 | 1550 | 120 | 400~450 | 2.40 | 263 | F9 |
592*592*500 | 5 | 2330 | 50 | 250~300 | 3.60 | 647 | F5 |
592*592*500 | 5 | 2330 | 65 | 250~300 | 3.60 | 575 | F6 |
592*592*500 | 5 | 2330 | 80 | 300~400 | 3.60 | 503 | F7 |
592*592*500 | 5 | 2330 | 105 | 300~400 | 3.60 | 431 | F8 |
592*592*500 | 5 | 2330 | 120 | 400~450 | 3.60 | 395 | F9 |
592*592*500 | 6 | 2700 | 50 | 250~300 | 4.20 | 755 | F5 |
592*592*500 | 6 | 2700 | 65 | 250~300 | 4.20 | 671 | F6 |
592*592*500 | 6 | 2700 | 80 | 300~400 | 4.20 | 587 | F7 |
592*592*500 | 6 | 2700 | 105 | 300~400 | 4.20 | 503 | F8 |
592*592*500 | 6 | 2700 | 120 | 400~450 | 4.20 | 451 | F9 |
592*592*500 | 8 | 3500 | 50 | 250~300 | 5.40 | 971 | F5 |
592*592*500 | 8 | 3500 | 65 | 250~300 | 5.40 | 863 | F6 |
592*592*500 | 8 | 3500 | 80 | 300~400 | 5.40 | 755 | F7 |
592*592*500 | 8 | 3500 | 105 | 300~400 | 5.40 | 647 | F8 |
592*592*500 | 8 | 3500 | 120 | 400~450 | 5.40 | 593 | F9 |
592*592*500 | 10 | 4270 | 50 | 250~300 | 6.60 | 1187 | F5 |
592*592*500 | 10 | 4270 | 65 | 250~300 | 6.60 | 1055 | F6 |
592*592*500 | 10 | 4270 | 80 | 300~400 | 6.60 | 923 | F7 |
592*592*500 | 10 | 4270 | 105 | 300~400 | 6.60 | 791 | F8 |
592*592*500 | 10 | 4270 | 120 | 400~450 | 6.60 | 725 | F9 |
Besides the size above, custom size acceptable.
