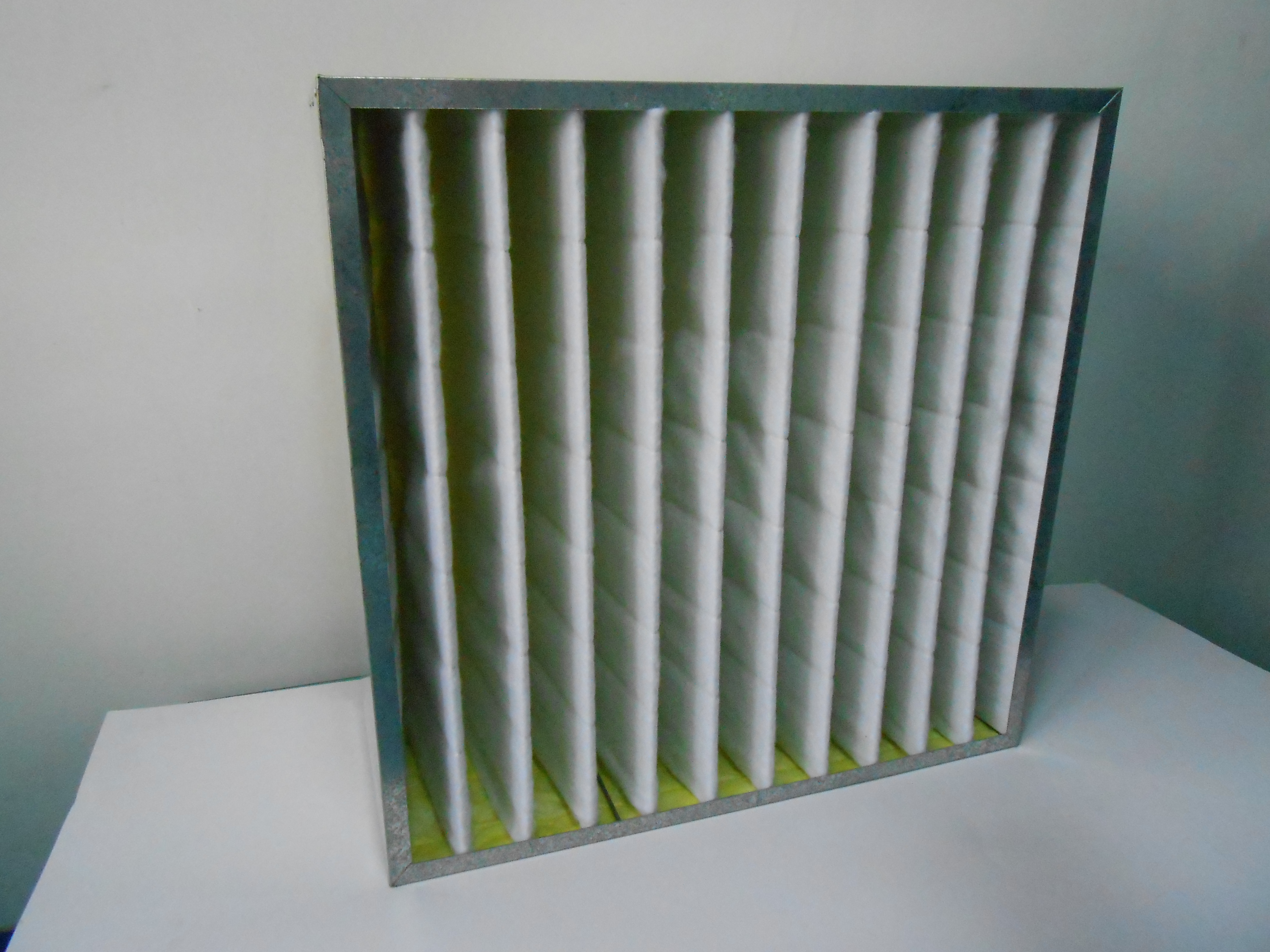

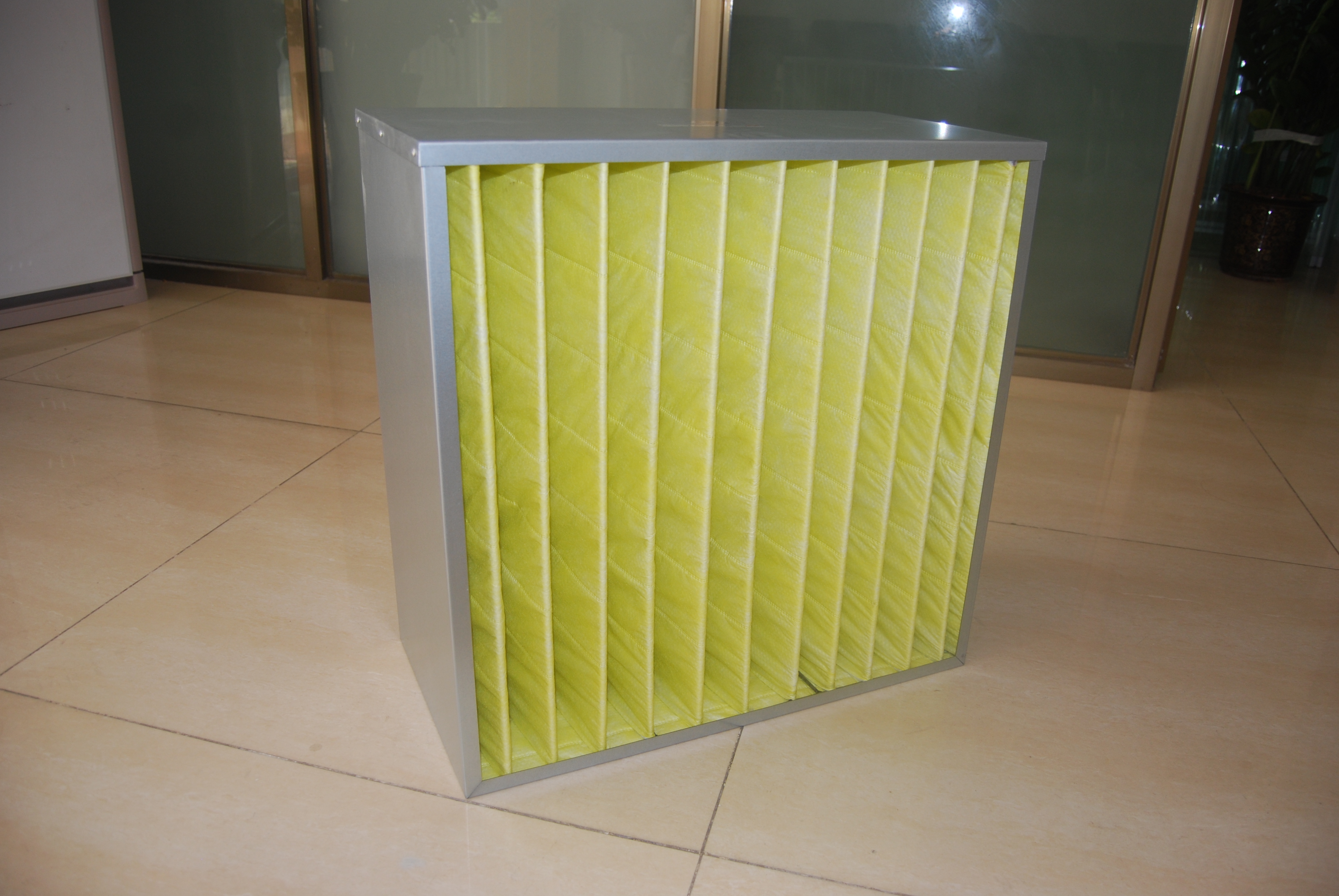

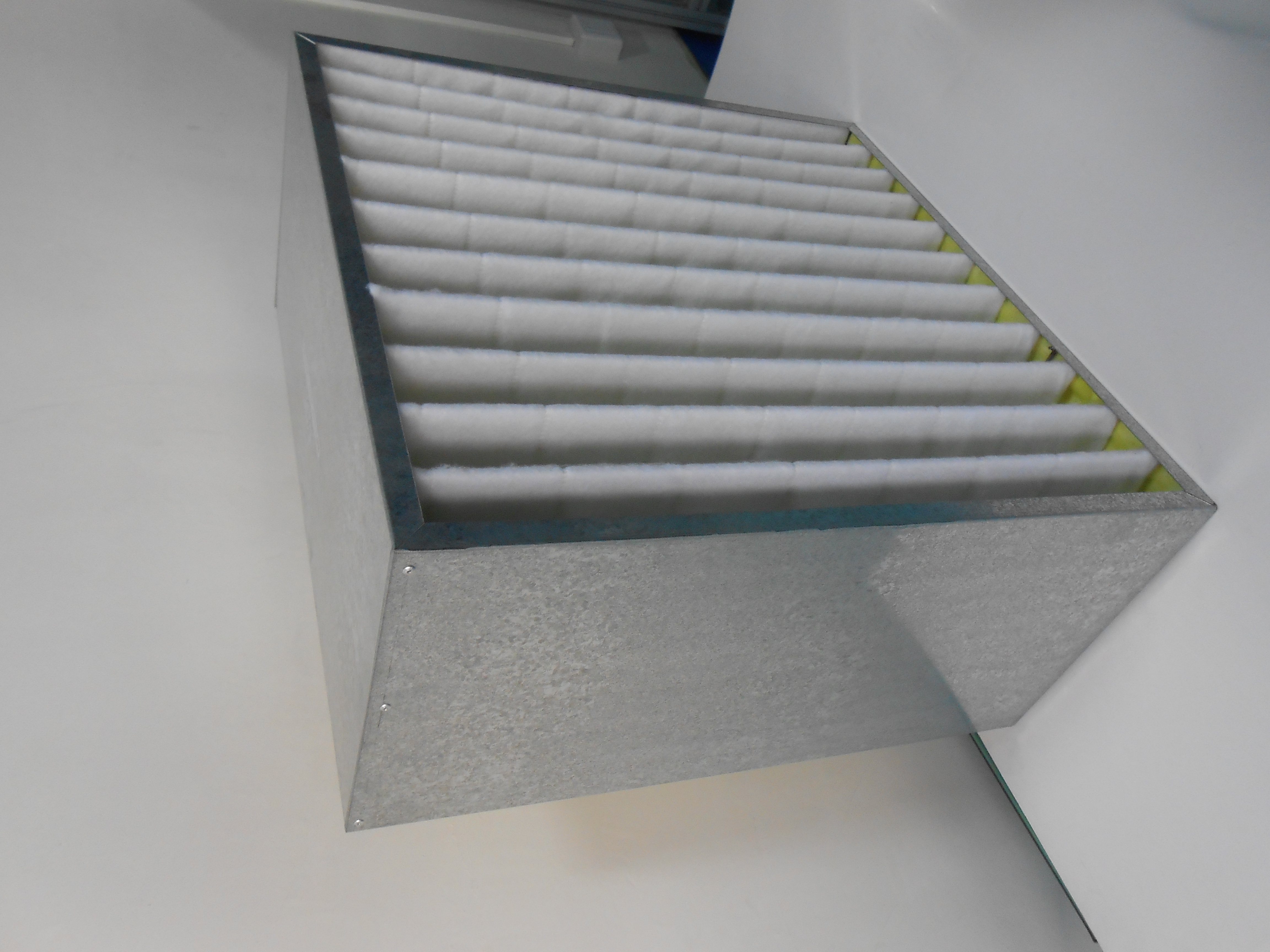

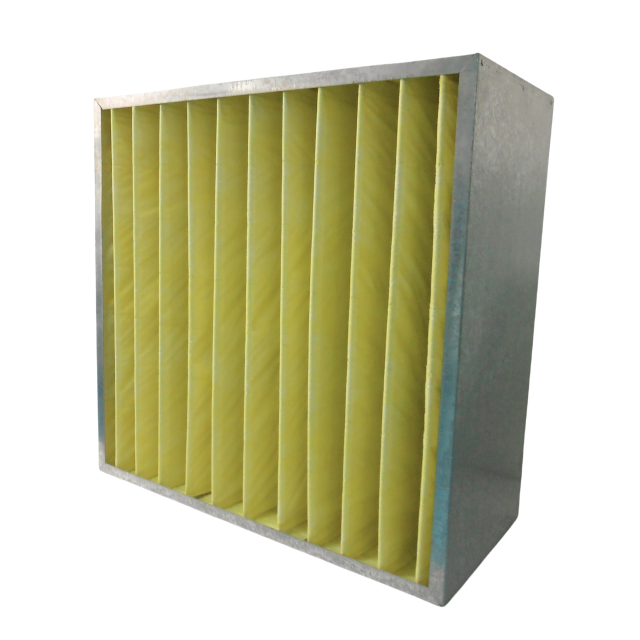

Medium Efficiency Box Air Filter
※Product Features
Box-type structure, large air volume, sturdy structure, and large dust-holding capacity.
※Application Field
Used for medium-level filtration in machinery, electronics, instruments, precision instruments, the food industry, and general air-conditioning and ventilation systems. It serves as a pre-filter for high-efficiency filters or as a filter for exhaust air.
※Material Composition and Running Condition
Filter element: Chemical fiber non - woven fabric
Frame material: Aluminum profile/ galvanized sheet/ aluminum sheet/
Filtration efficiency: 45% to 95% at 0.5μm
Optional thicknesses for aluminum profiles (mm): 120,150,220
Maximum operating temperature: 80℃
Maximum humidity: 100%
※Size&Data
Size (W*H*D) (mm) | Rated airflow (m³/h) | Initial resistance (≦pa) | Final resistance (pa) | Filtration area (㎡) | Dust capacity (g) | Efficiency |
592*592*292 | 2890 | 50 | 250~300 | 4.46 | 803 | F5 |
592*592*292 | 2890 | 65 | 250~300 | 4.46 | 714 | F6 |
592*592*292 | 2890 | 80 | 300~400 | 4.46 | 625 | F7 |
592*592*292 | 2890 | 105 | 300~400 | 4.46 | 536 | F8 |
592*592*292 | 2890 | 120 | 400~450 | 4.46 | 491 | F9 |
287*592*292 | 1550 | 50 | 250~300 | 2.40 | 433 | F5 |
287*592*292 | 1550 | 65 | 250~300 | 2.40 | 385 | F6 |
287*592*292 | 1550 | 80 | 300~400 | 2.40 | 336 | F7 |
287*592*292 | 1550 | 105 | 300~400 | 2.40 | 288 | F8 |
287*592*292 | 1550 | 120 | 400~450 | 2.40 | 264 | F9 |
490*592*292 | 2440 | 50 | 250~300 | 3.78 | 680 | F5 |
490*592*292 | 2440 | 65 | 250~300 | 3.78 | 604 | F6 |
490*592*292 | 2440 | 80 | 300~400 | 3.78 | 529 | F7 |
490*592*292 | 2440 | 105 | 300~400 | 3.78 | 453 | F8 |
490*592*292 | 2440 | 120 | 400~450 | 3.78 | 415 | F9 |
Besides the size above, custom size acceptable.
